ERG220 Rower
11
Connecting the Main Frame to the Slide Rail
6

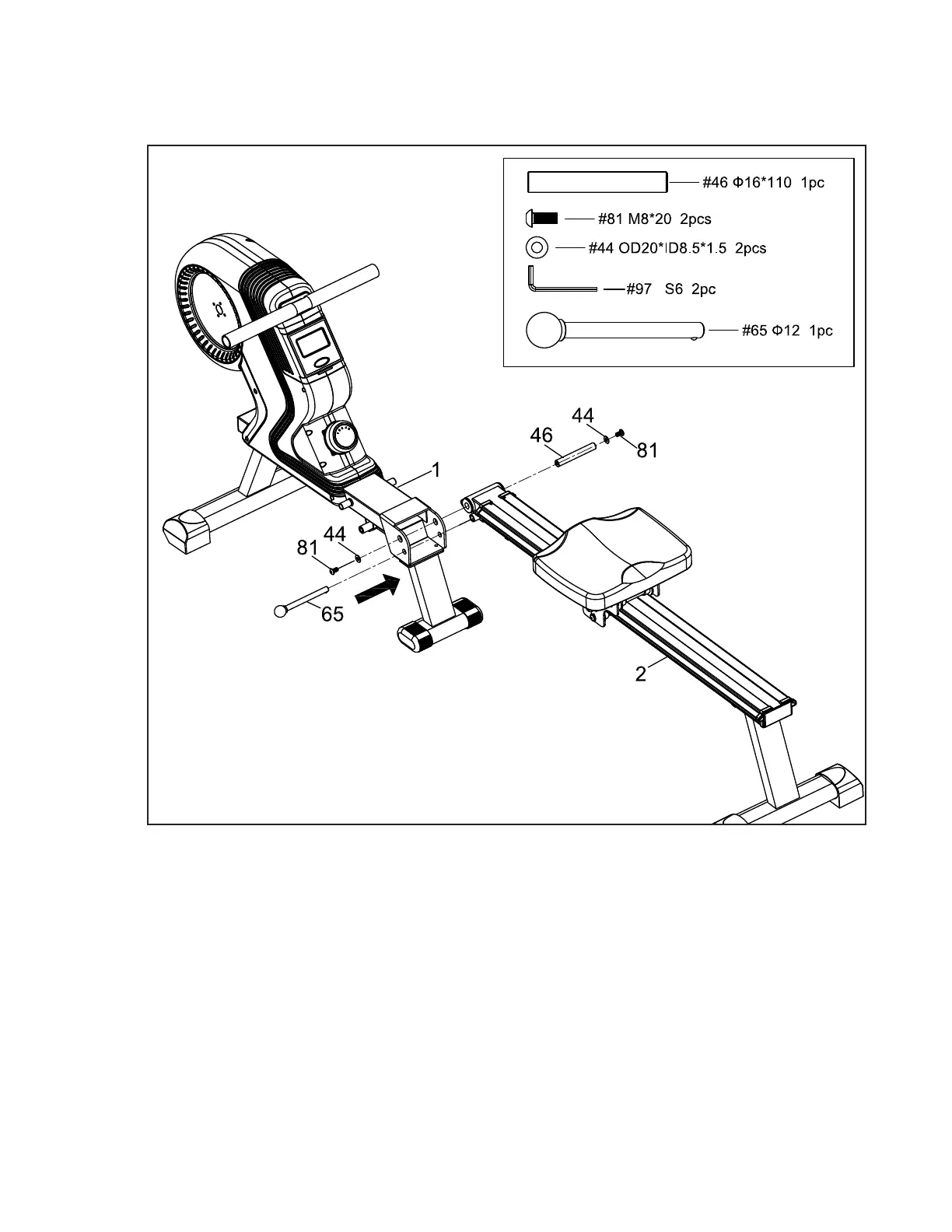

1. Attach the Slide Rail (2) to the Main Frame (1). Insert the Axis (46) and secure
using 2 Screws (81) and 2 Washers (44) with the provided Allen Wrench (97).
2. Insert the Ball Head Pin (65) into the lower slot on the Main Frame (1) & Slide
Rail (2). Lift center of frame to help line up locking pin holes. This locks the rower in
the unfolded position and can be removed to fold the rower up.
