12
ERG220 Rower

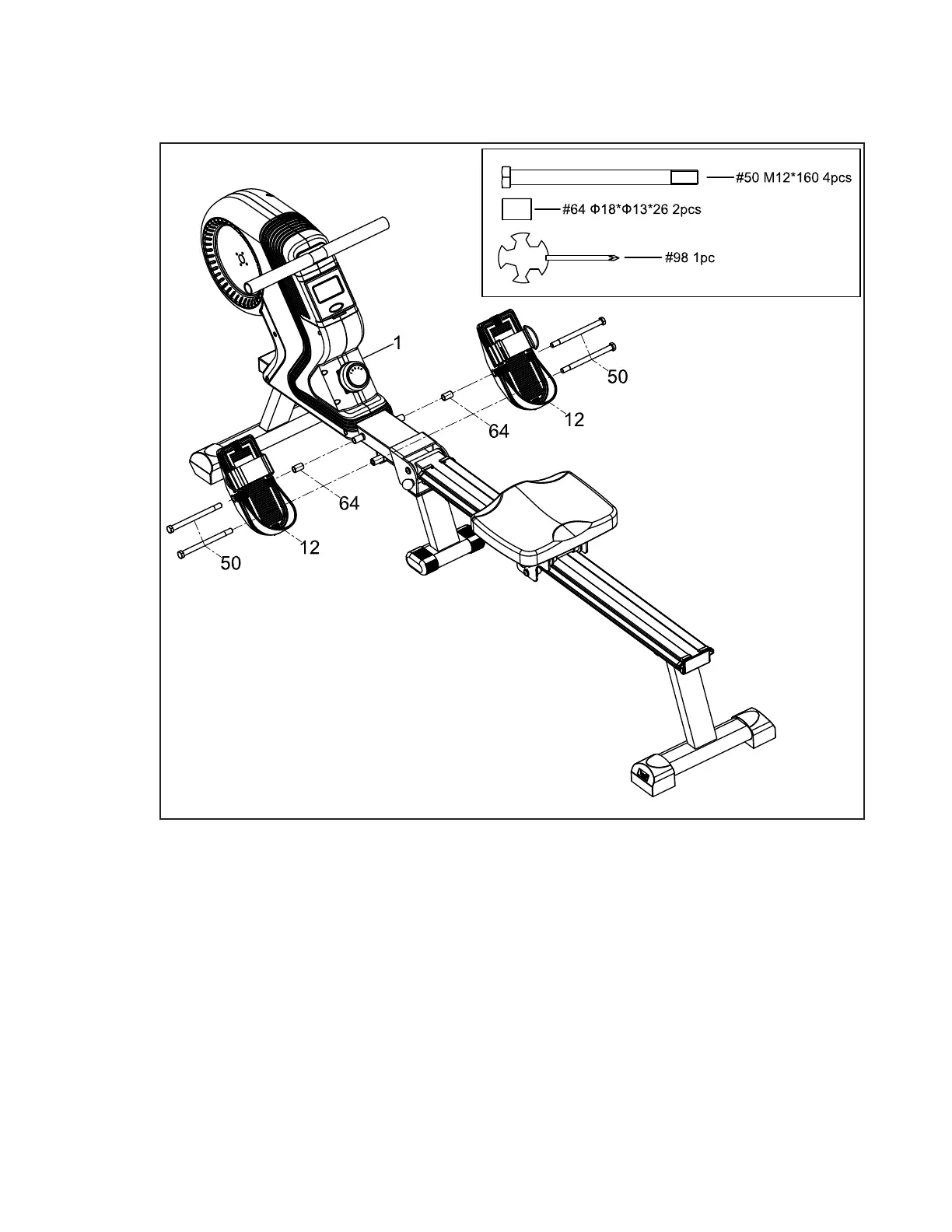

1. Slide the Long Screw (50) through the Pedal (12), then through a Spacer Sleeve
(64) before attaching and securing to the Main Frame (1) using the Screw Driver
(98). A second Long Screw (50) is directly secured onto the Main Frame (1) in
the lower half of the Pedal (12).
2. Repeat for the other Pedal (12).
Attaching the Pedals
7
