XTM Racing XT2 - BECOMING FAMILIAR WITH THE NITRO BUGGY COMPONENTS; Identification of Major Vehicle Parts

Page 6

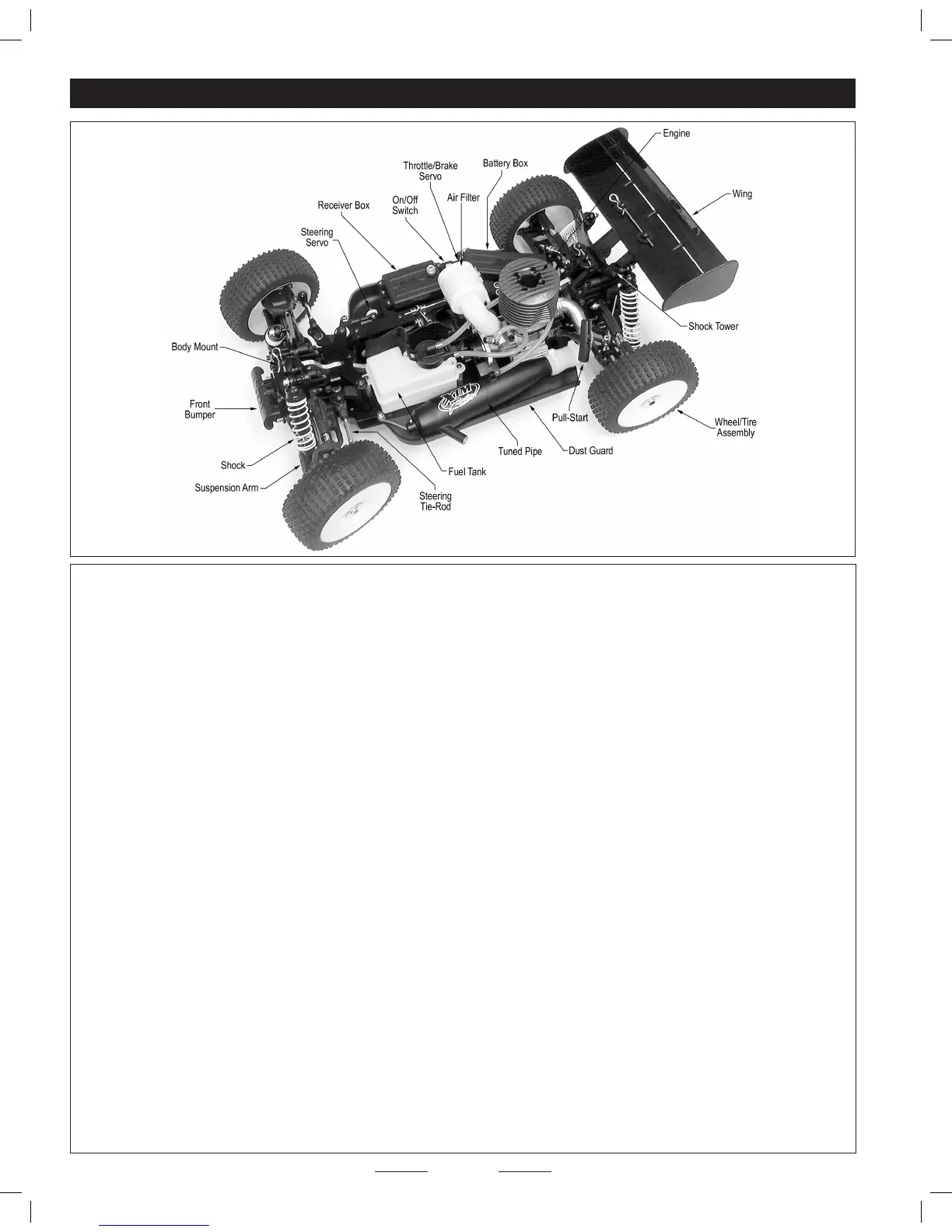

BECOMING FAMILIAR WITH YOUR X-TERMINATOR 2 RTR 4WD NITRO BUGGY, CONTINUED....
Air Filter: The air lter is made of foam and prevents dirt and debris from entering the engine through the carburettor. The air lter should be
"wet" with air lter oil for maximum efciency.
Battery Box: This is where the receiver battery is mounted. The battery box protects the batteries from dust, dirt and oil. The battery box
is not waterproof.
Body Mount: Made of high-impact nylon plastic for strength, the body mount secures the body into place. There is a dual-mount body mount at the
rear of the chassis and a single-mount body mount at the front of the chassis.
Dust Guard: Helps prevent track debris from entering and damaging transmission components, prot6 ects tuned pipe from impacts.
Engine: The X-Terminator 2 RTR 4WD Nitro Buggy includes the powerful XTM Racing 24.7 engine with pull-starter and tuned pipe for ease
of use and great performance.
Front Bumper: Made out of high-impact nylon plastic, the front bumper protects the chassis from most head-on impacts.
Fuel Tank: The fuel tank holds the fuel that your engine uses. This fuel tank includes a fuel pressure nipple that connects to the tuned pipe to pressurise
the fuel system and also features a quick-ip type lid for fast refueling.
Pull-Start: A spring recoil system used to start the engine.
Receiver Box: This is where the receiver is mounted. The receiver box protects the receiver from dust, dirt and oil. The receiver box is
not waterproof.
Shock Absorber: Each shock is oil-lled and uses a spring that is well suited for most off-road conditions. The shocks feature threaded shock bodies that
allow the shocks to be easily tuned for different driving conditions. The shocks come standard with 30Wt oil and 1.5mm white springs.
Shock Tower: Secures shock absorber whilst allowing many different geometry settings to suit different track conditions.
Steering Servo: This servo controls the vehicle's steering. A "servo saver" is used to help prevent the servo gears from being stripped out.
Steering Tie-Rod: The tie-rod connects the steering linkage and the castor block. The tie-rods are adjustable so you can make toe-angle
adjustments to the front wheels.
Suspension Arm: Helps improve vehicle's handling (when coupled to shock absorbers) and braking whilst ensuring maximum traction (keeps wheels
in contact with the ground) and protects chassis components from undue stresses and strains.
Throttle/Brake Servo: This device controls both the vehicle's acceleration and braking functions.
Tuned Pipe: The tuned pipe is an expansion mufer that greatly increases the power output of the engine.
Wheel/Tyre Assembly: The X-Terminator 2 RTR 4WD Nitro Buggy includes moulded rubber tyres with a tread pattern that is good for most off-road
applications. The wheels are moulded in one piece from lightweight, high-impact plastic for strength.
Wing: Provides downforce to ensure maximum traction when racing. Wing angle can be adjusted to different track conditions.
PHOTO SHOWN MAY DIFFER
FROM ACTUAL PRODUCTION MODEL
