XTM Racing XT2 - INITIAL ASSEMBLY PROCEDURES; Installing Wheels and Transmitter Antenna; Installing Transmitter Batteries

Page 7
Now that you are familiar with the major component parts of your X-Terminator 2 RTR 4WD Nitro Buggy, and with the functions of the
pistol-grip transmitter, it's time to prepare your X-Terminator 2 RTR 4WD Nitro Buggy for its rst run.
IMPORTANT Before continuing, please double-check that you've read and understood the warnings on page # 2. It's important
that you understand this information before preparing to run your X-Terminator 2 RTR 4WD Nitro Buggy. Also, remember,
if you have any questions or encounter any problems, you can contact your local distributor using the Customer Service
Information on page # 2.
YOUR X-TERMINATOR 2 RTR 4WD NITRO BUGGY SHOULD INCLUDE THE FOLLOWING ITEMS SEPARATELY IN THE BOX:
●
X-Terminator 2 RTR 4WD Chassis
●
Pistol Grip Transmitter
●
Transmitter Antenna
●
Body and Wing
PREPARING TO RUN YOUR X-TERMINATOR 2 RTR 4WD NITRO BUGGY

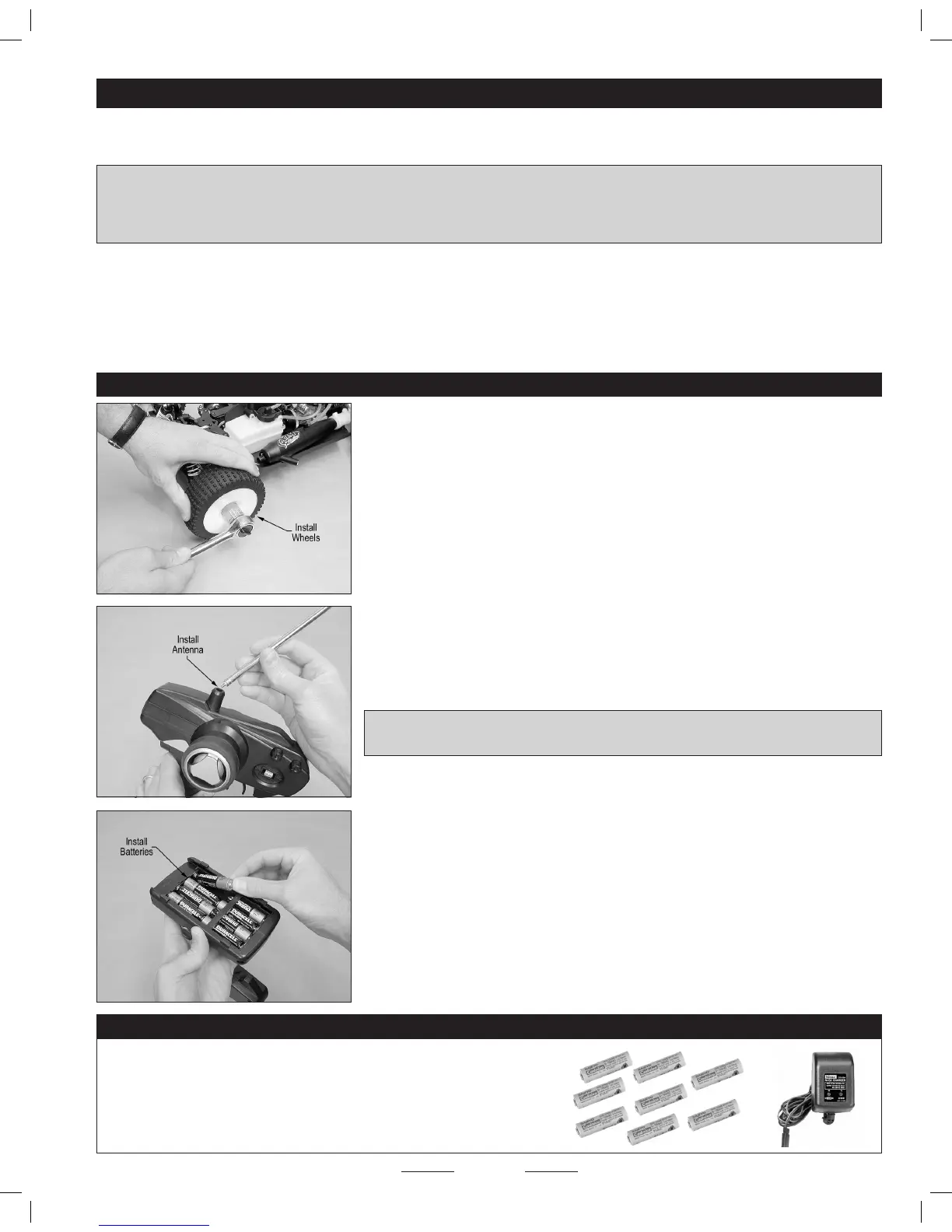

STEP 1: FINAL ASSEMBLY
❑ Check to be sure that the transmitter ON/OFF switch is in the 'OFF' position.
❑ Push the transmitter antenna down into the moulded hole in the top of the transmitter.
❑ Thread the antenna (clockwise) into place and tighten it gently until it stops.
IMPORTANT Do not force the antenna into place or tighten it too strongly. Doing so
could cause damage to the antenna and/or transmitter.
❑ Remove the plastic battery cover from the bottom of the transmitter.
❑ Install 8 AA Alkaline batteries into the battery tray, double-checking to make sure
that the polarity (+ & -) is correct.
❑ Reinstall the battery cover and set the transmitter aside for now.
●
Tyres and Wheels (Glued)
●
Body Clips
●
Decal Set
●
Yellow Plastic Parts Set
Upgrading your transmitter to use rechargeable NiCad/Ni-MH cells is easy.
All you need to do is purchase 8 AA rechargeable NiCad/Ni-MH cells
and an overnight charger. This will allow you to recharge the batteries
without removing them from the transmitter and it will save you money
in the long run, since you won't need to purchase Alkaline batteries
when they run low.
PISTOL GRIP TRANSMITTER UPGRADE TIP
❑ Install the wheels onto the chassis, making sure to tighten the wheel retaining nuts
rmly, using a 17mm socket wrench.
✩
Notice that the back of the wheels are moulded to key over the hex-shaped wheel
hubs. All four wheels and tyres are the same.
●
Plastic Receiver Antenna Tube
●
Toe-Angle Adjustment Blocks
●
Air lter Assembly
●
Allen Keys & Wrenches
Continued On Next Page
