XTM 379449 - Mounting Bolts and Rails; Replacing Roof Rack Covers; Securing Corners with Stators and Nuts

3
Instructions continued on next page.

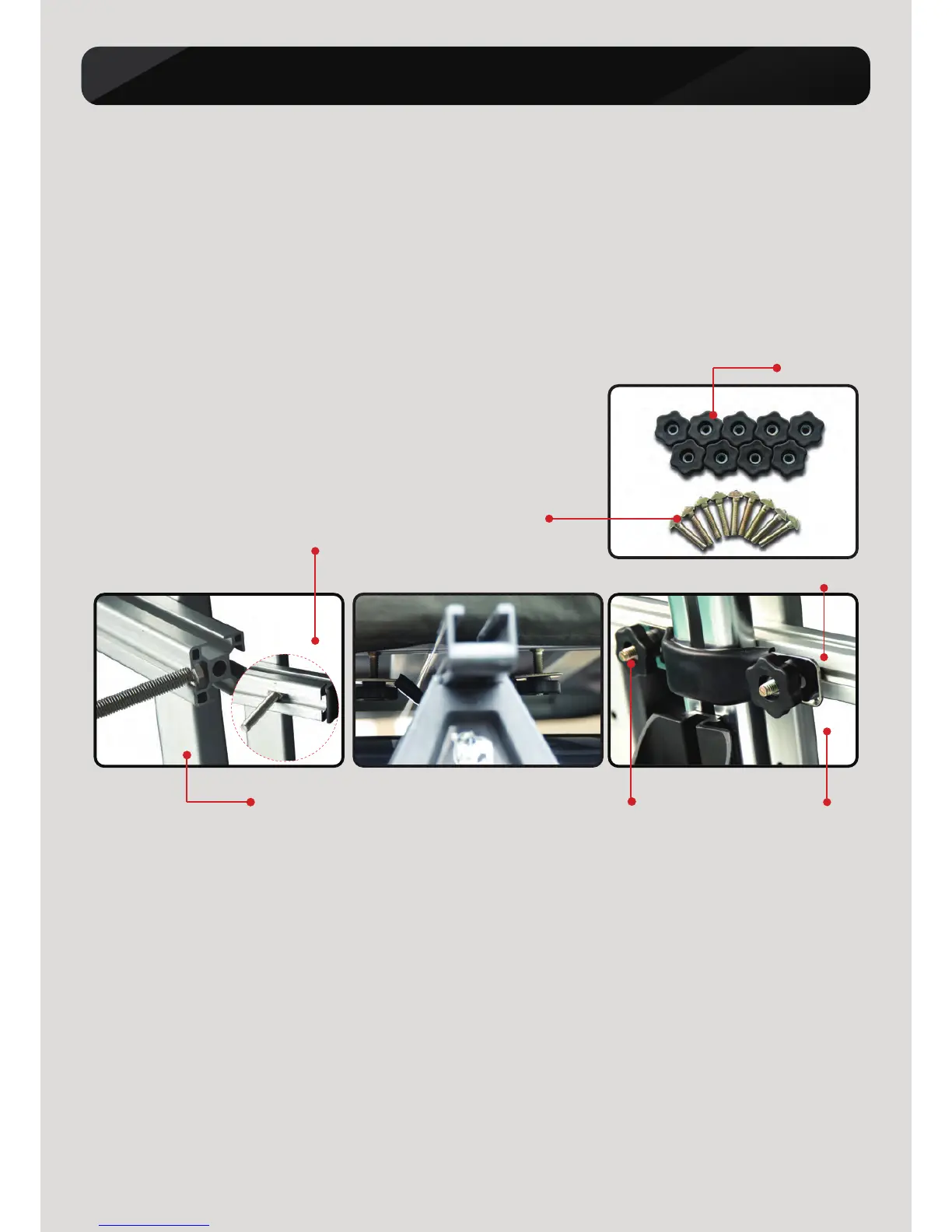

1. d) Slide the M8X50 hexagon bolts into the rails from
both sides ensuring you have positioned 8 in total
(see picture 1)
1. e) Replace the plastic covers of your roof racks
(see picture 2)
1. f) Use the plastic nut to x the M8X50 head hexagon bolt and U-shape stator in place, all four
corners should be mounted with M8X50 hexagon bolts, U-shaped stator and plastic nuts
(see picture 3)
SET UP INSTRUCTIONS
Rail
U-shape stator
Plastic nut
M8X50 outer
hexagon bolt
Picture 2
Picture 1
Picture 3
