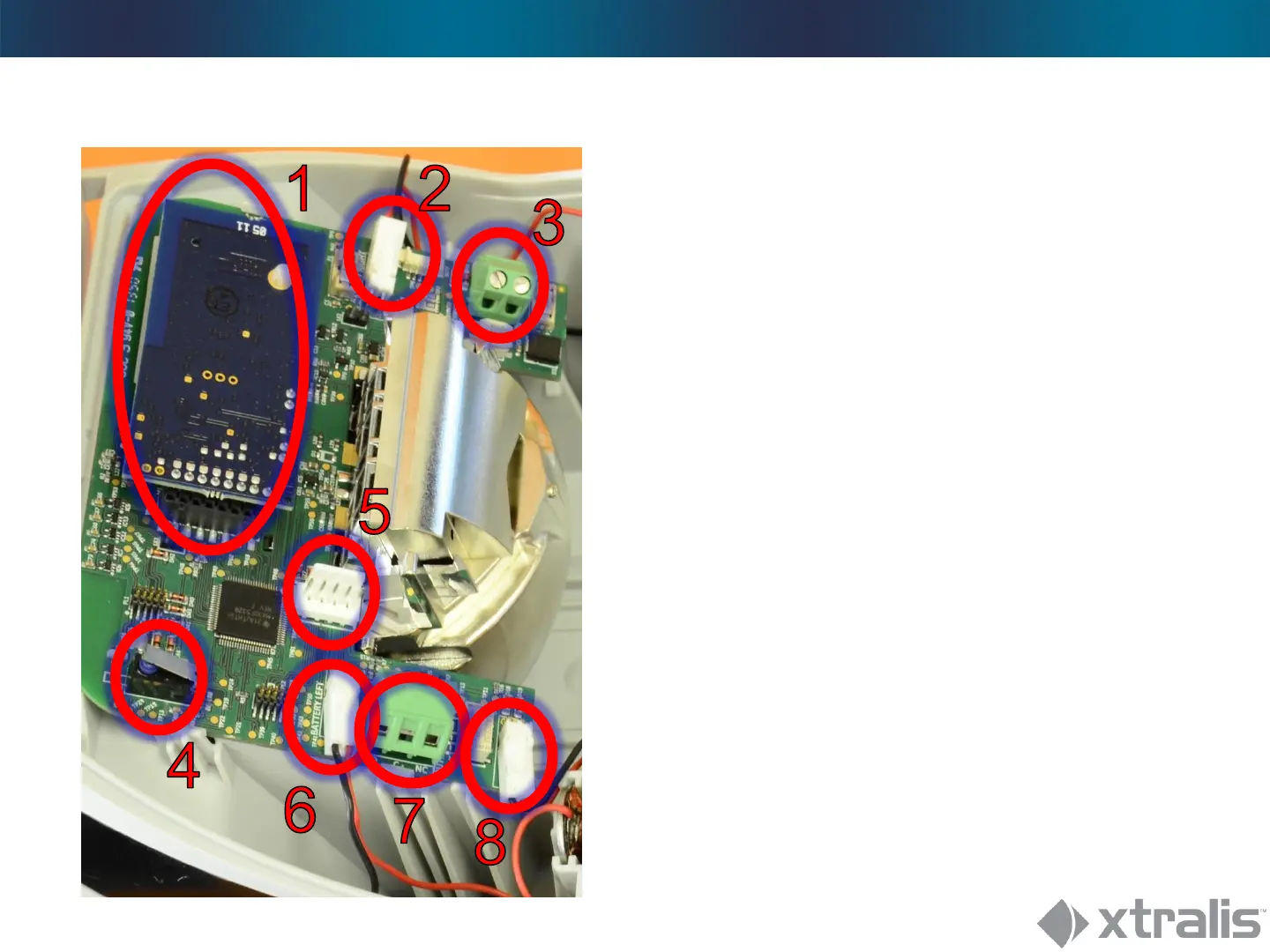

Wireless detector PCB (first design):
1. Innovonics wireless
transmitter module,
plugged in PCB
2. Right battery pack
connector
3. Solar panel terminal
4. Cover switch connector
5. Test socket (power/bus)
6. Left battery pack
connector
7. Alarm Relay (NO/C/NC)
8. Bracket cover switch
connector
