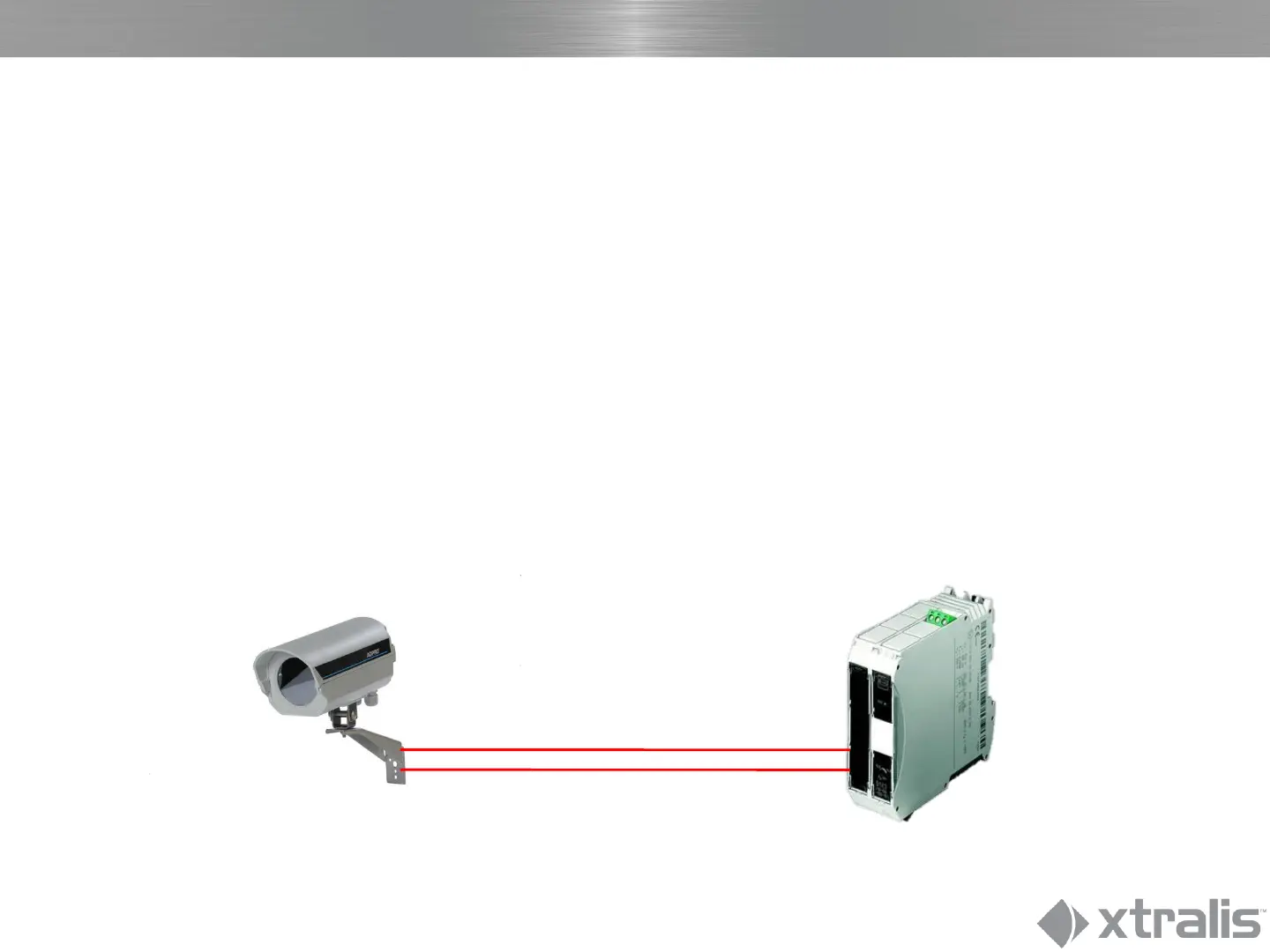

• „ „Circuit in which …“
Intrinsic safety always considers the whole electric circuit.
A circuit typically consists of one operation device (load), a
supply device (source) and their interconnecting cables.
Intrinsic Safety: Circuit:
© Xtralis Pty. Ltd. ─ Confidential Information
135
Load Source
U
i
I
i
P
i
C
i
L
i
U
o
I
o
P
o
C
o
L
o
Cables
C
Cable
L
Cable
