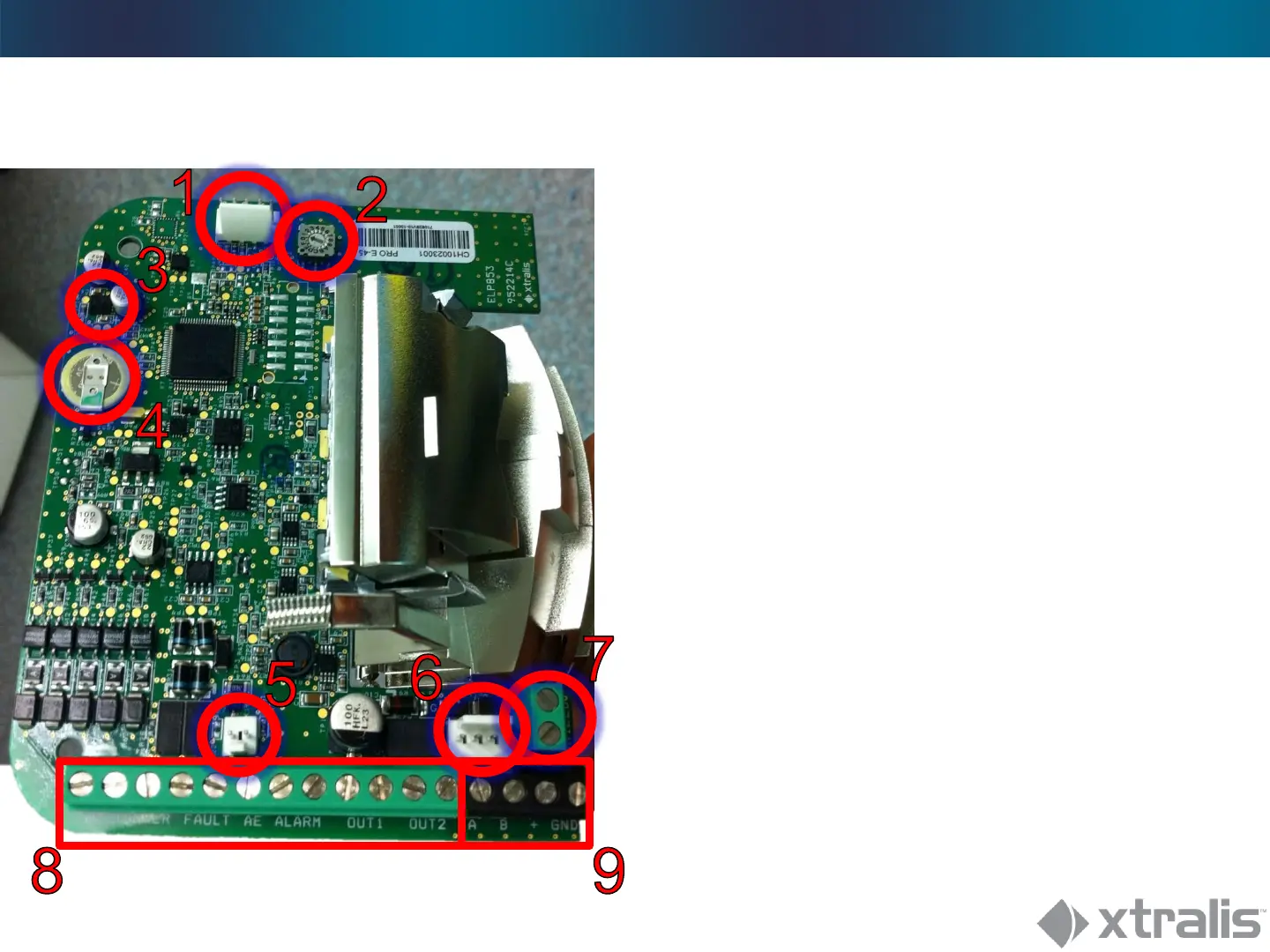

Standard PRO E PCB:
1. Cover Switch connector
2. Type selector switch
(do not change!)
3. Cover proximity sensor
4. Backup battery
5. Heater connector
6. Test socket (bus/power)
7. Cable shield terminal
8. Alarm relays terminal
9. Power/RS485 terminal
