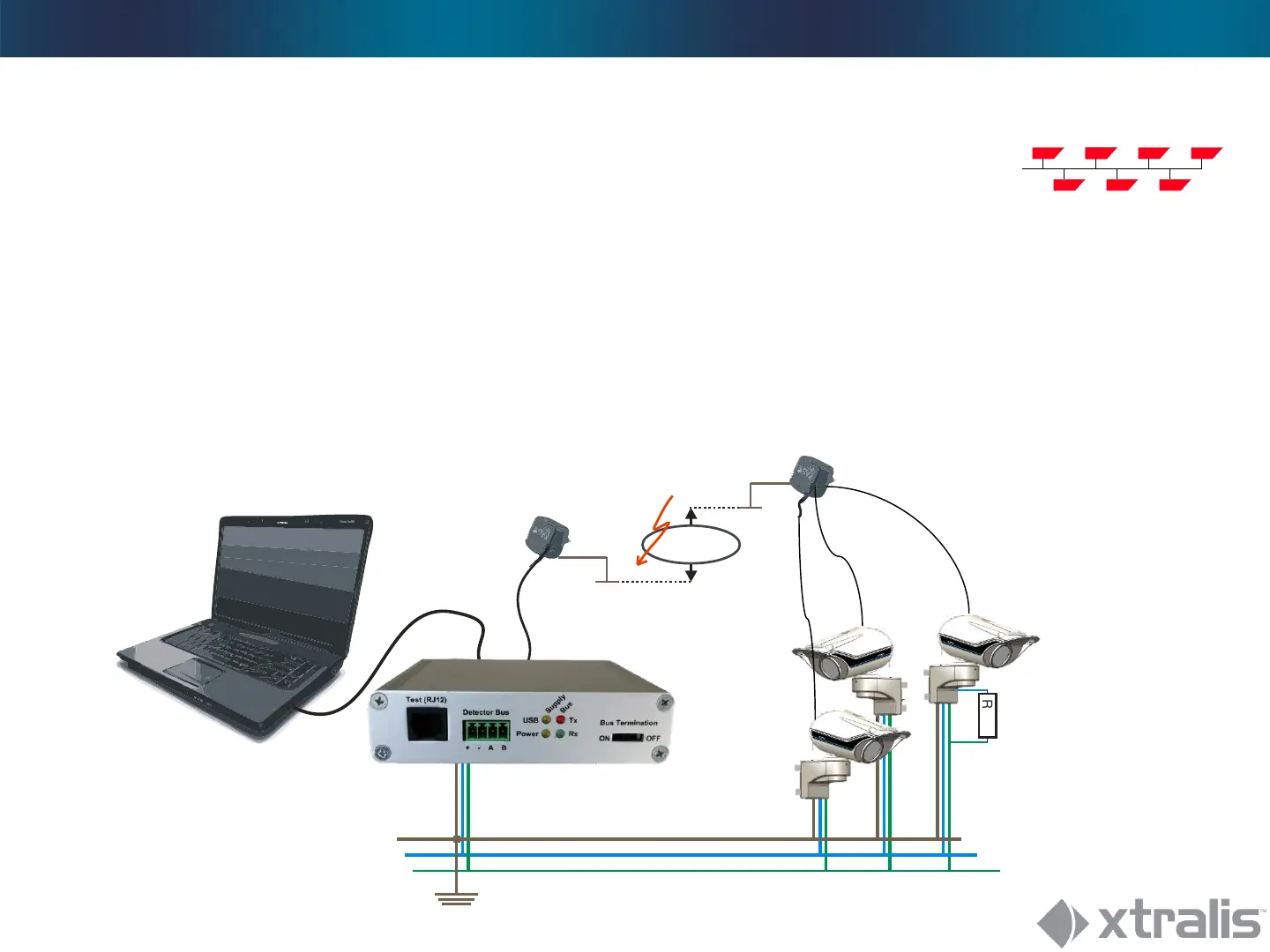

RS 485 ground difference
• In order to avoid possible malfunctioning
or damage caused by potential differences,
always connect the ground wire between the
detectors and the RS485 converter.
