XtraVac RBF8 - Page 56

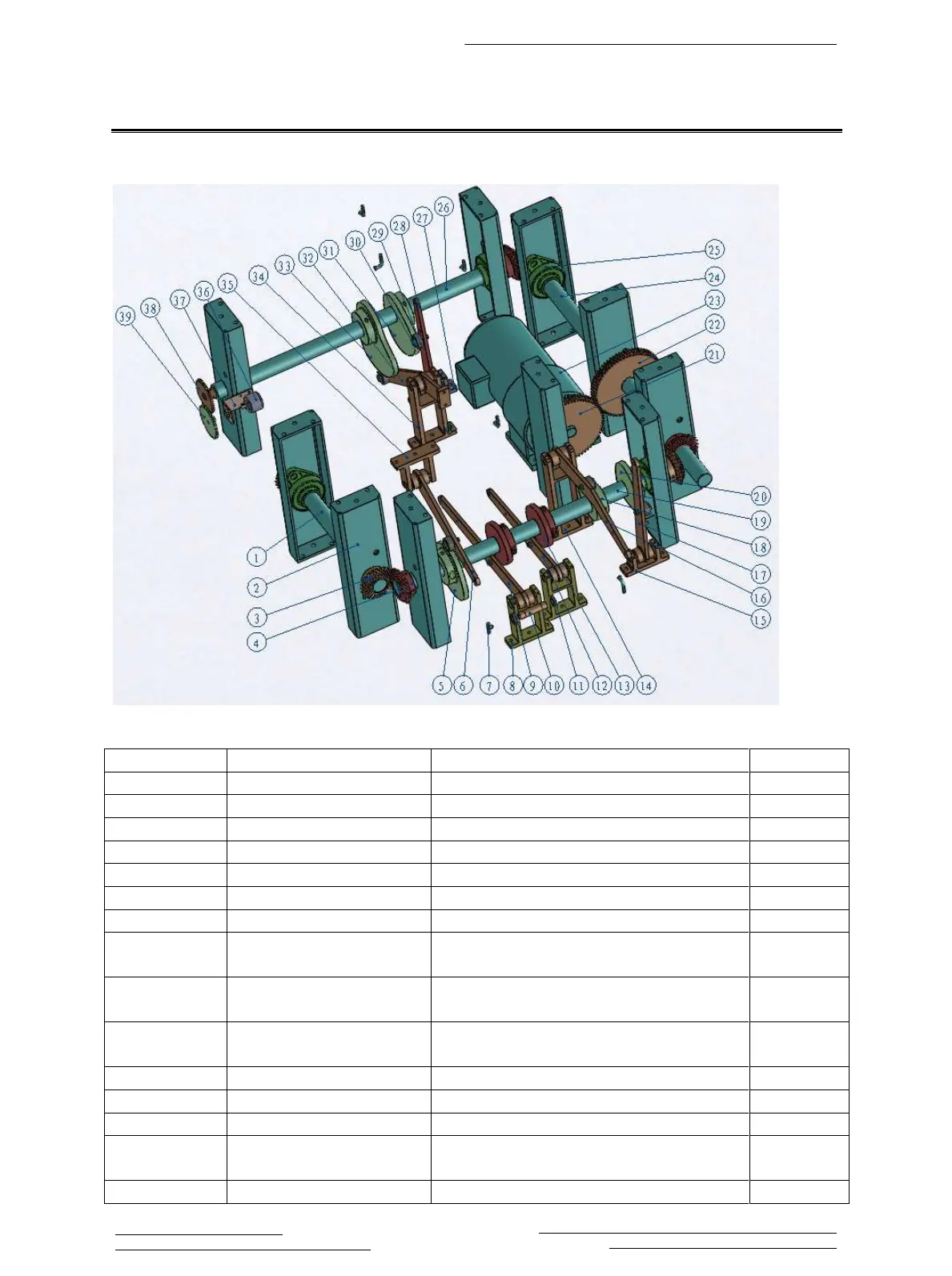

2.2 The Main Driving Unit
No
Model
Name
Qty
1
AP-8BT-02-03A
Shaft
1
2
AP-8BT-02-01
Bearing block
10
3
AP-8BT-02-05
Spiral bevel gear
4
4
AP-8BT-02-04A
Spiral bevel gear A
4
5
AP-8BT-02-16B
Cam for pouch top
1
6
AP-8BT-02-17
Connecting rod for pouch top
1
7
AP-8BT-02-15
Hook
12
8
AP-8BT-02-21
The connecting rod seat of flexible
finger
2
9
AP-8BT-02-23
The connecting rod A of flexible
finger
1
10
AP-8BT-02-21
The shaft of connecting rod for storing
pouch up
7
11
Deep groove ball bearing 61804 ZZE
14
12
AP-8BT-02-20
The connecting rod of flexible finger
1
13
AP-8BT-02-19
The cam of flexible finger
2
14
AP-8BT-02-10
The connecting rod seat of pouch
storing up
1
15
AP-8BT-02-26
The connecting rod seat of slide
1
