XtraVac RBF8 - Page 61

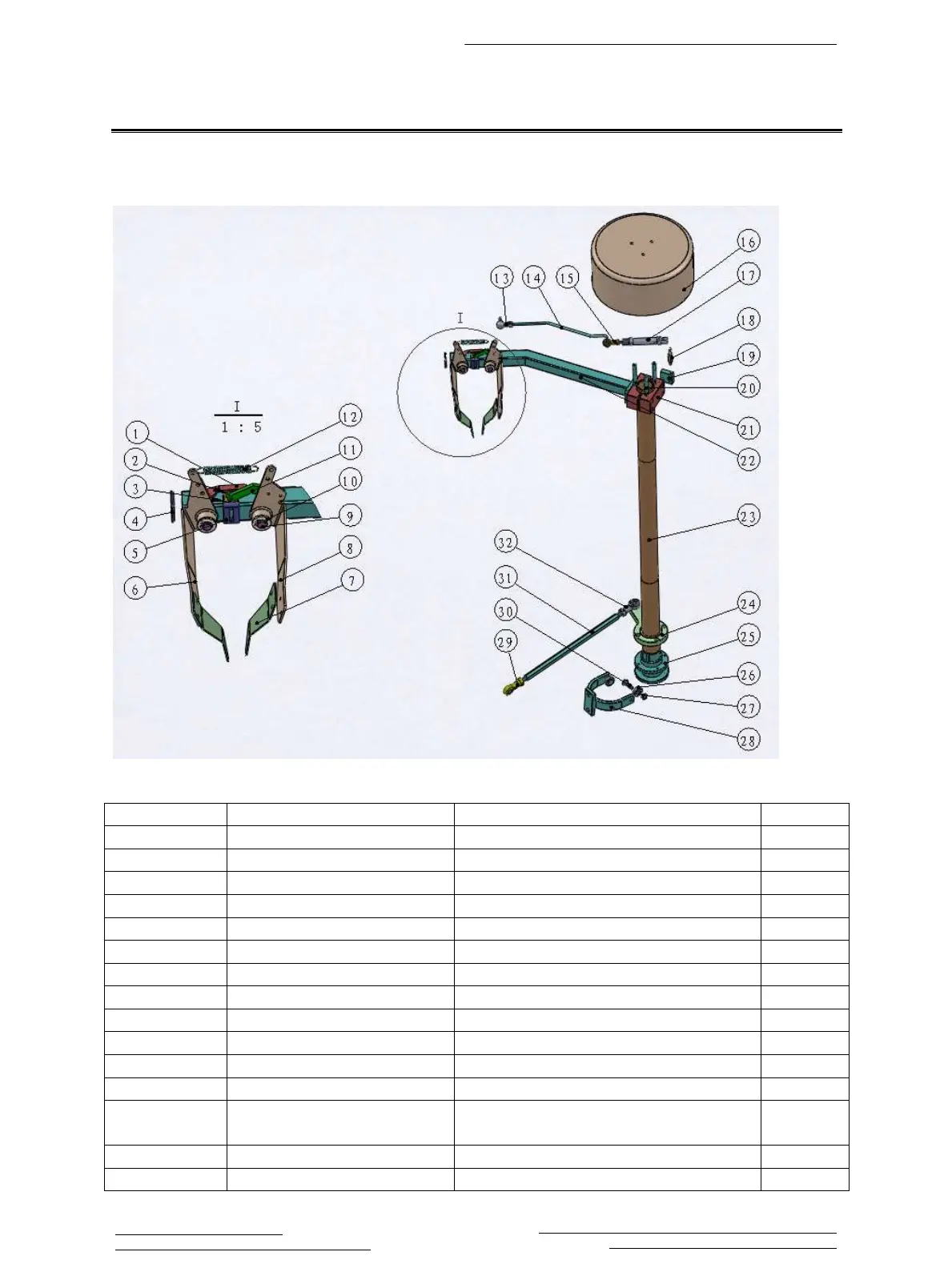

2.4 Swing arm unit
No
Model
Name
Qty
1
AP-8BT-08-11
Balance board
1
2
Deep groove ball bearing 605 ZZE
2
3
AP-8BT-08-23
Silicone cushion
1
4
AP-8BT-08-02
Plug
1
5
AP-8BT-08-13
Adjusting board
1
6
AP-8BT-08-08
The right clipping board
1
7
AP-8BT-08-09
The board for opening the pouch
2
8
AP-8BT-08-07
The left clipping board
1
9
AP-8BT-08-06
Pin roll
2
10
AP-8BT-08-27
Cushion
4
11
AP-8BT-08-10
Movable board
1
12
AP-8BT-08-12
Tension spring
1
13
SQ6-RS Tortuous rod shaped joint
bearing
1
14
AP-8BT-08-14A
Draft bar
1
15
Joint bearingM6 with inner teeth
1
