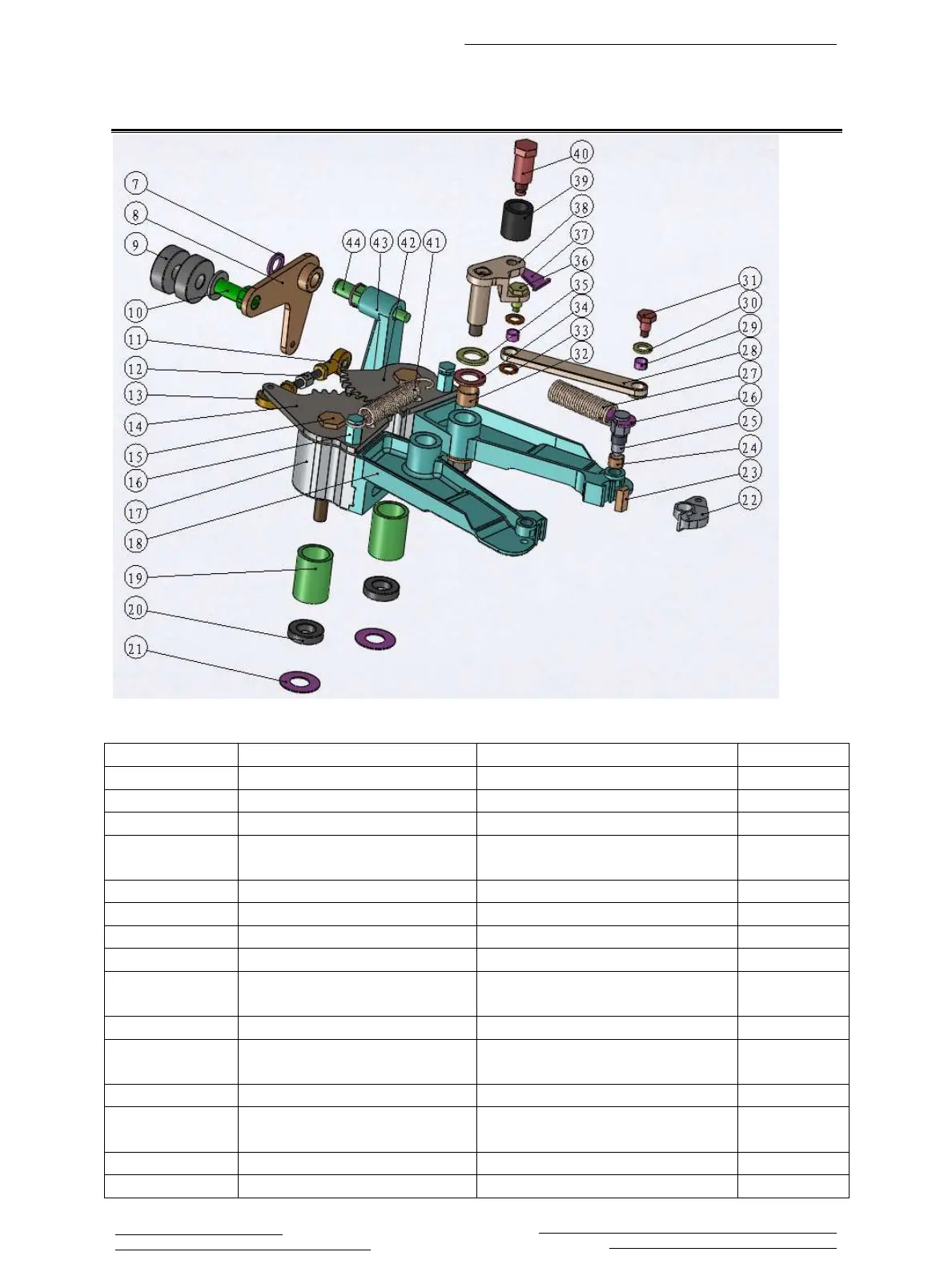

XtraVac RBF8 - Page 64

No
Model
Name
Qty
1
AP-8BT-06-32
The cover of dustproof sleeve
1
2
AP-8BT-06-33
Dustproof sleeve
1
3
AP-8BT-06-30A
Round bushing
1
4
AP-8BT-06-31
The cushion under the
dustproof sleeve
1
5
AP-8BT-06-29A
Fixed distance rod A
4
6
AP-8BT-06-16A
Mounting disk
1
7
AP-8BT-06-25
Washer
16
8
AP-8BT-06-22
Pull board
8
9
6301 ZZE Deep groove ball
bearing
16
10
AP-8BT-06-26A
Roll shaft
8
11
Joint bearingM6 with left
rotary inner teeth
8
12
AP-8BT-06-20
Adjusting screw rod A
8
13
Joint bearingM6 with inner
teeth
8
14
AP-8BT-06-18
Fan shaped gear B
8
15
AP-8BT-06-13
Links shaft
16
XtraVac RBF8 Rotary Bagger Operation, Service, & Parts Manual
XtraVac Packaging Machines
RBF8 - Rotary Bag Filling & Sealing Machine
