XtreamAIR Pro-X Series User Manual

www.XtremeAirUsa.com PAGE 10

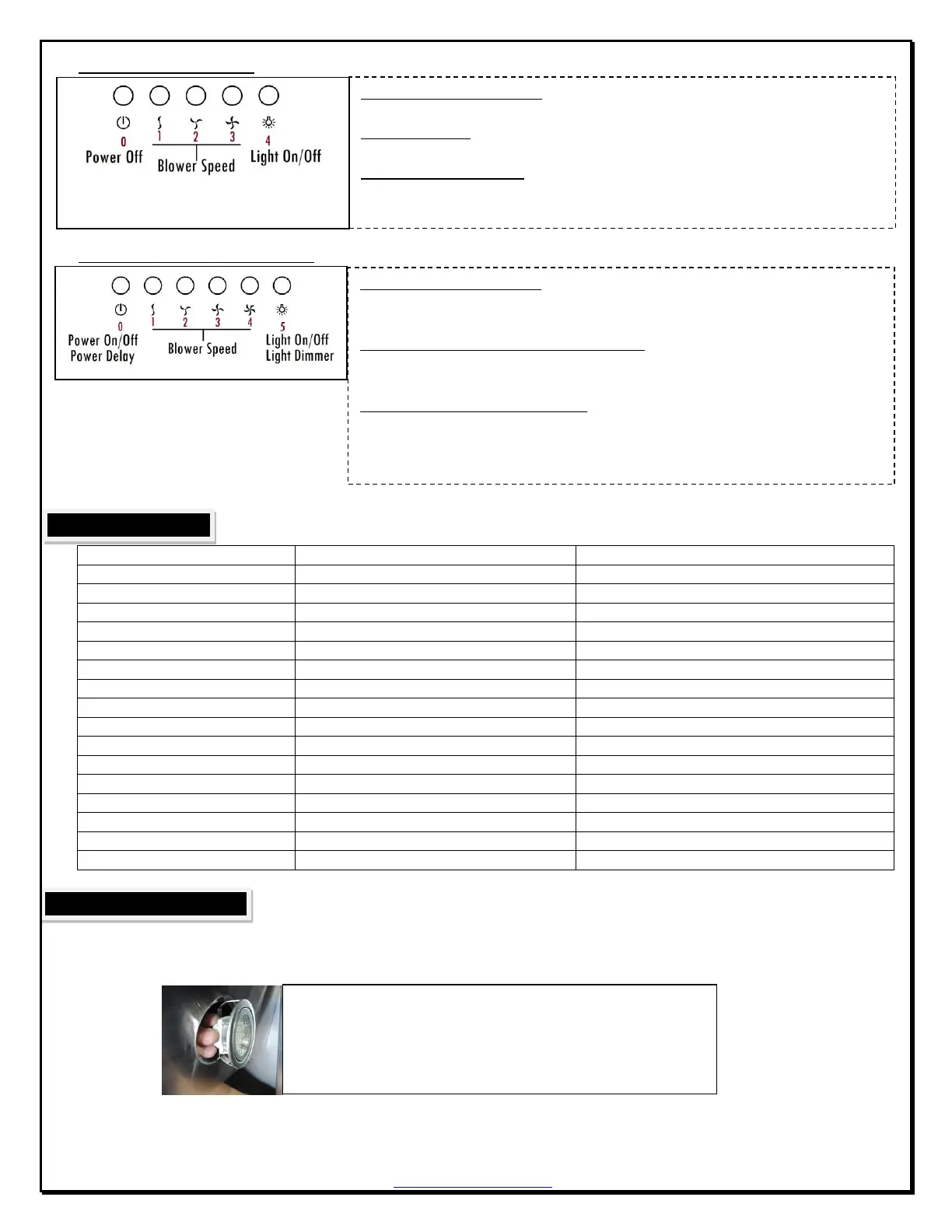

3. FOR ALL ULTRA SERIES: TYPE 3: MECHANICAL BUTTON CONTROL
4. FOR DL08 & DL09 Model: TYPE 4: ELECTRONIC BUTTON CONTROL
OTHER THAN DL08-W48
DL08-W48
Body Design
Non-Magnetic 1.0 mm Stainless Steel, Satin Finish
Non-Magnetic 1.0 mm Stainless Steel, Satin Finish
Power Rating
120V/60Hz (USA & Canada standard)
120V/60Hz (USA & Canada standard)
General Input Power
158W (150W + 4x2W)
308W (150W + 4x2W)
Motor Input Power
150 W each
150 W each
Ampere
1.3 A
2.6 A
Levels Of Speed Control
4 Levels
4 Levels
Maximum Airflow
900CFM
1600CFM
Noise Level
Approximately 1.5 – 6.0 sones or 33 – 54 dB
Approximately 3.0 – 7.0 sones or 41 – 56 dB
Number Of Motors
Single Motor
2 Motors
Motor Type
Single Chamber Ultra Quiet
Single Chamber Ultra Quiet
Fan Type
Squirrel Cage blower
2 Squirrel Cage blowers
Filtration Type
Heavy Duty Stainless Steel Baffle Filter
Heavy Duty Stainless Steel Baffle Filter
Illumination
2/3/4 LED lights, 2W Maximum/each
4 LED lights, 2W Maximum/each
Venting Size
Top 6 inches Round
Top 8 inches Round
Interference Protection
Radio Frequency Interference Protected
Radio Frequency Interference Protected
Note
Specification subject to change without notice.
Specification subject to change without notice.
1. If the range hood or lights does not operate after installation:
 Check if the range hood has been plugged in. Make sure that all power has been turned back ON.
 Swap out light assembly to working ones to deter mine whether it is caused by defective bulbs.
2. The range hood vibrates when the blower is on:
 The range hood might not have been secured properly to the cabinet or wall.
 Check if the blower wheel is damaged.
12. SPECIFICATION
13. TROUBLESHOOTING
A. Activating Blower Function:
Press (0) once (flashing)
Press your designed speed (1,2,3,4)
B. Active delay power shut off / turn off power:
While the blower (motor) is running, press (0) once to active 3 min power delay shut off
Press (0) again to turn off blower and power.
C. To turn the light ON/OFF & Dimmer
While the light is off, press (5) once to turn on the light
Press (5) again to turn dimmer down to lower setting
Press (5) again to turn the light off.
A. Activating Blower Function:
Press your designed speed (1,2,3)
B. Turn off power:
While the blower (motor) is running, press button (0) to turn off the motors.
C. To turn the light ON/OFF
While the light is off, press button (4) once to turn on the light.
Press button (4) again to turn the light off
A.Make sure the range hood is unplugged or turn OFF breaker.
B.Pop out the light by pressing behind the light fixture.
C.Install new light bulb.
D.Put the light set back by pressing it in.
E.Plug in and range hood to test for operation.

XtreamAIR Pro-X Series Specifications

General

Brand	XtreamAIR
Model	Pro-X Series
Category	Ventilation Hood
Language	English
