NOTES
: Only for inside-ventilating double-core carburetors.
: Only for paper core air cleaners.
1) More often than that in the schedule if in dusty circumstances.
2) The items should be done by your dealer you are specially trained and is well equipped with tools.
Ⅱ. METHOD
1. Replacement of Engine Oil

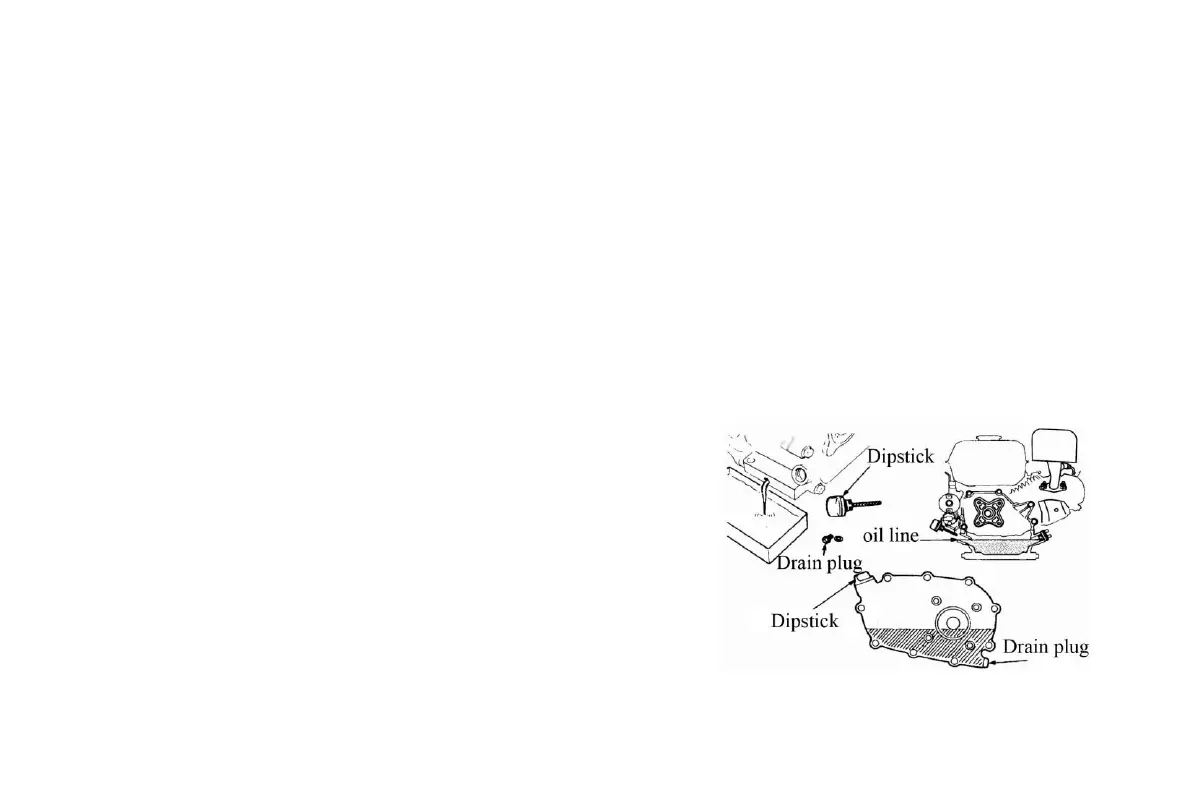

A still hot engine is helpful to drain out the engine oil in the crankcase rapidly and entirely. (Pic. 18)
1) Turn off the oil filler cap and drain plug to drain engine oil thoroughly. Reinstall the drain plug and screw in
securely.
2) Fill the specified engine oil to the upper lever mark..
3) Reinstall the oil filler cap.
Engine oil capacity of the crankcase is 0.6 liters.
Engine oil capacity of the 1/2 reduction gearbox is 0.5 liters.
Engine oil capacity of the 1/6 reduction gearbox is 0.15 liters.
(Pic. 18)
