Xtreme Power 96429 - Page 5

4
PARTS INFORMATION ASSEMBLY

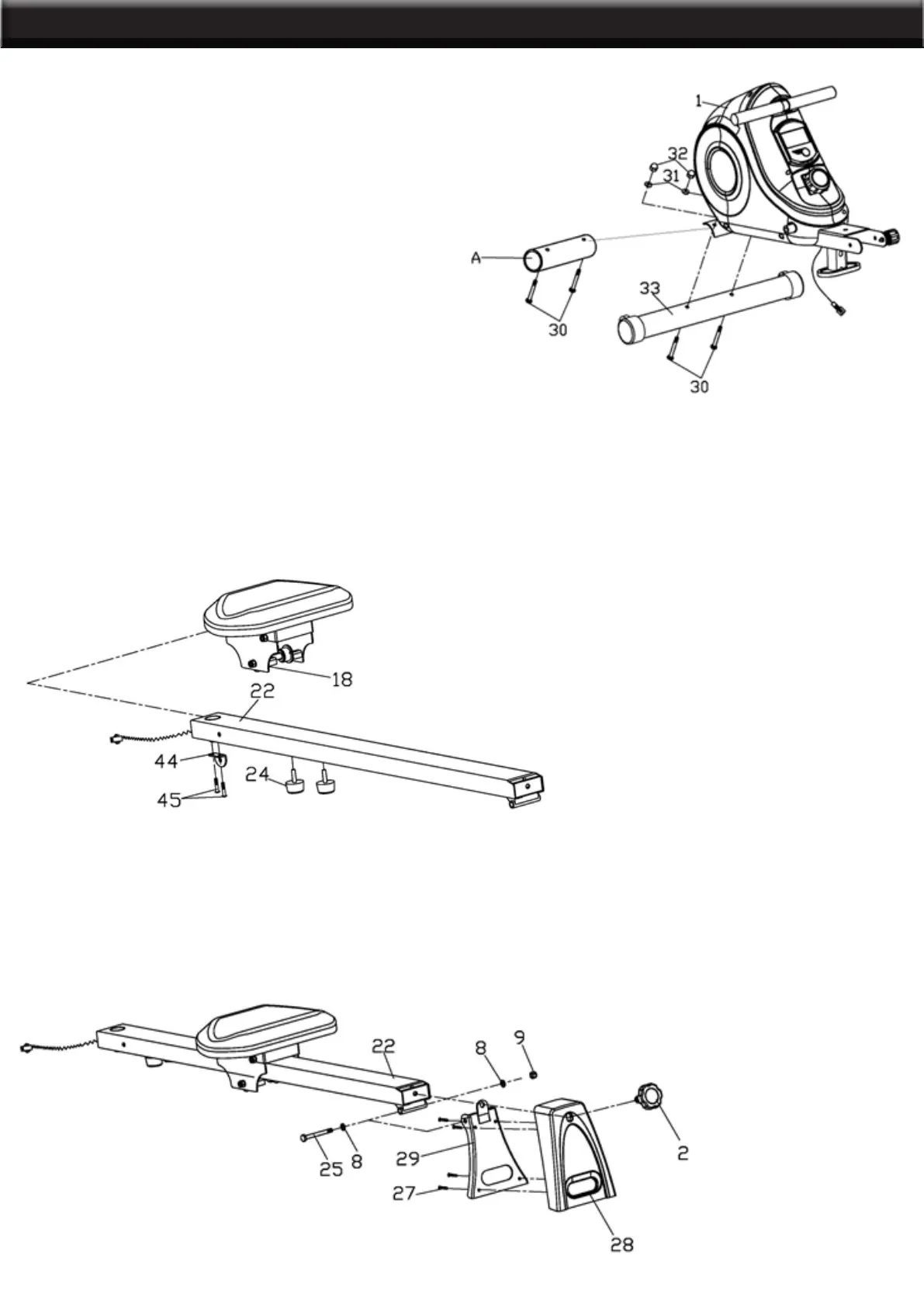

STEP 1:
1. Remove the paper tube, carriage bolt
(30), arc washer (31) and cap nut (32)
from the front bottom tube (33).
2. Tighten the front bottom tube (33) to
the mainframe (1) with carriage bolt (30),
arc washer (31), and cap nut (32).
STEP 2:
1. Remove the cushion (24), screw (45) and xed plate (44), then install the slide saddle
(18) onto the slide rail (22), and tighten the cushion (24) to the slide rail (22).
2. Tighten the xed plate (44) to the slide rail (22) with screw (45).
STEP 3:
Tighten the rear support (29) to the slide rail (22) with hexagon bolt(25),at washer(8)
and nylon nut (9), then tighten the protective guard (28) to the rear support (29) with
the knob (2) and screw (27).
