XtremepowerUS 90100 - System Connection for Pumps Greater Than 0.5 HP; System Connection for Pumps Less Than 0.5 HP

10 pages

To Next Page

To Previous Page

If your pump is greater than 0.5HP, please use the diverter kit (see page component kit) to shunt the flow

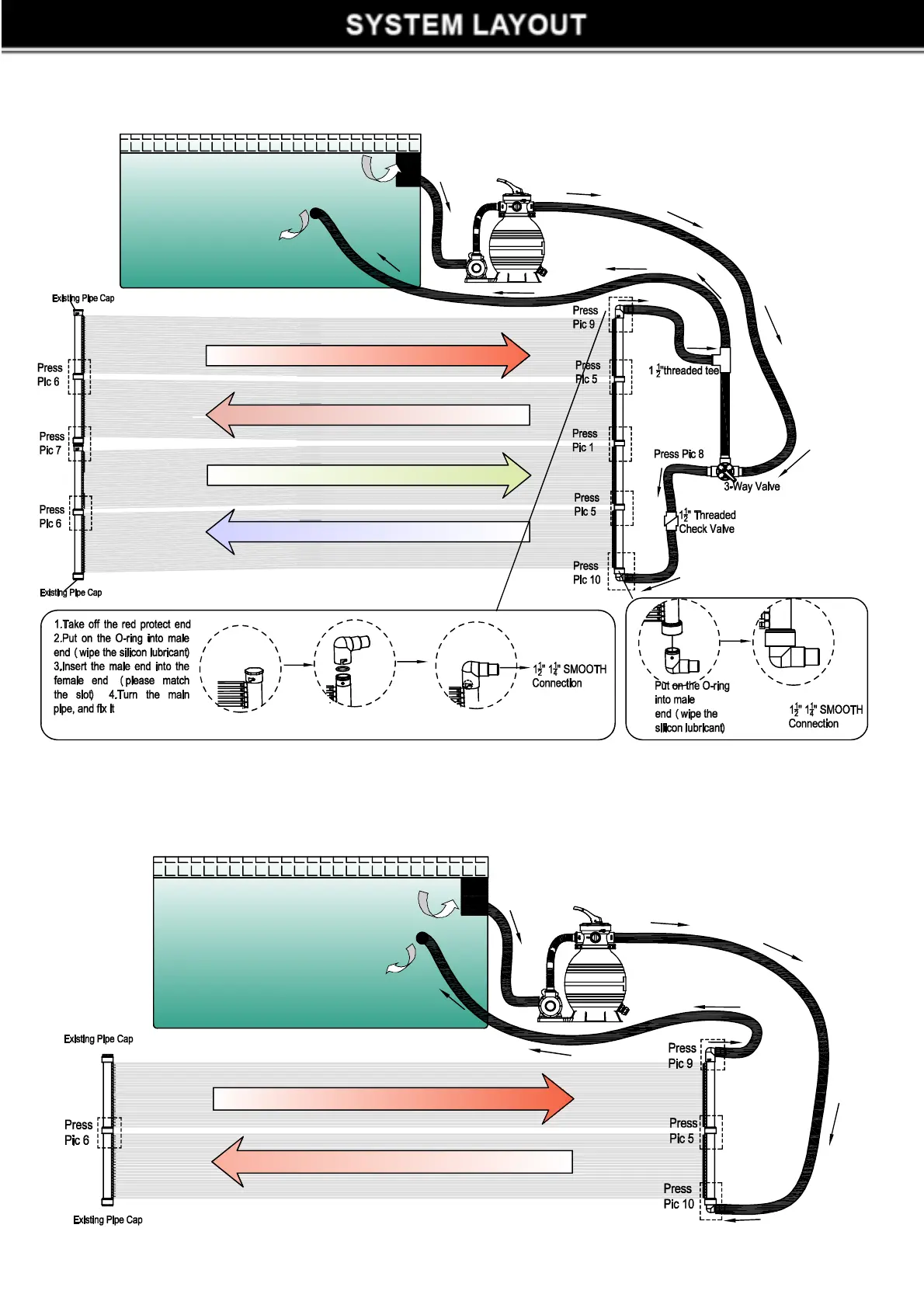

SYSTEM LAYOUT

If your systems use the pump less than 0.5HP, please according the following picture to

connect the panel in the systems

WARM

COOL
