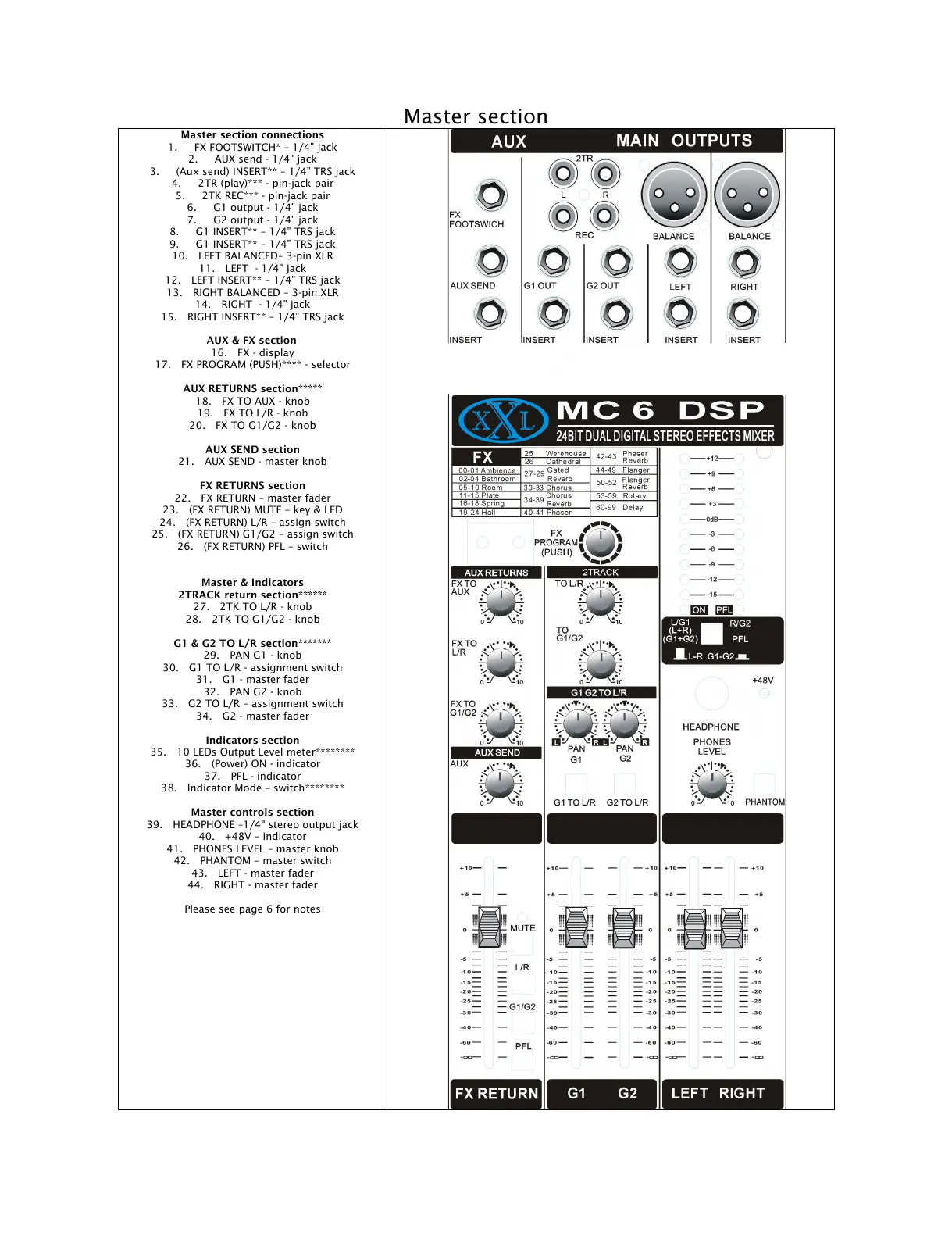

Master section connections
1. FX FOOTSWITCH* – 1/4" jack
2. AUX send - 1/4" jack
3. (Aux send) INSERT** – 1/4” TRS jack
4. 2TR (play)*** - pin-jack pair
5. 2TK REC*** - pin-jack pair
6. G1 output - 1/4" jack
7. G2 output - 1/4" jack
8. G1 INSERT** – 1/4” TRS jack
9. G1 INSERT** – 1/4” TRS jack
10. LEFT BALANCED– 3-pin XLR
11. LEFT - 1/4" jack
12. LEFT INSERT** – 1/4” TRS jack
13. RIGHT BALANCED – 3-pin XLR
14. RIGHT - 1/4" jack
15. RIGHT INSERT** – 1/4” TRS jack
AUX & FX section
16. FX - display
17. FX PROGRAM (PUSH)**** - selector
AUX RETURNS section*****
18. FX TO AUX - knob
19. FX TO L/R - knob
20. FX TO G1/G2 - knob
AUX SEND section
21. AUX SEND - master knob
FX RETURNS section
22. FX RETURN – master fader
23. (FX RETURN) MUTE – key & LED
24. (FX RETURN) L/R – assign switch
25. (FX RETURN) G1/G2 – assign switch
26. (FX RETURN) PFL – switch
Master & Indicators
2TRACK return section******
27. 2TK TO L/R - knob
28. 2TK TO G1/G2 - knob
G1 & G2 TO L/R section*******
29. PAN G1 - knob
30. G1 TO L/R - assignment switch
31. G1 - master fader
32. PAN G2 - knob
33. G2 TO L/R – assignment switch
34. G2 - master fader
Indicators section
35. 10 LEDs Output Level meter********
36. (Power) ON - indicator
37. PFL - indicator
38. Indicator Mode – switch********
Master controls section
39. HEADPHONE –1/4" stereo output jack
40. +48V – indicator
41. PHONES LEVEL – master knob
42. PHANTOM – master switch
43. LEFT - master fader
44. RIGHT - master fader
Please see page 6 for notes
