9
UNI-MATCH
WATER FEEDER
WF-U-24
21P
1 P2 A
WNH
HYDROLEVEL 400
Factory
Jumper
Bar

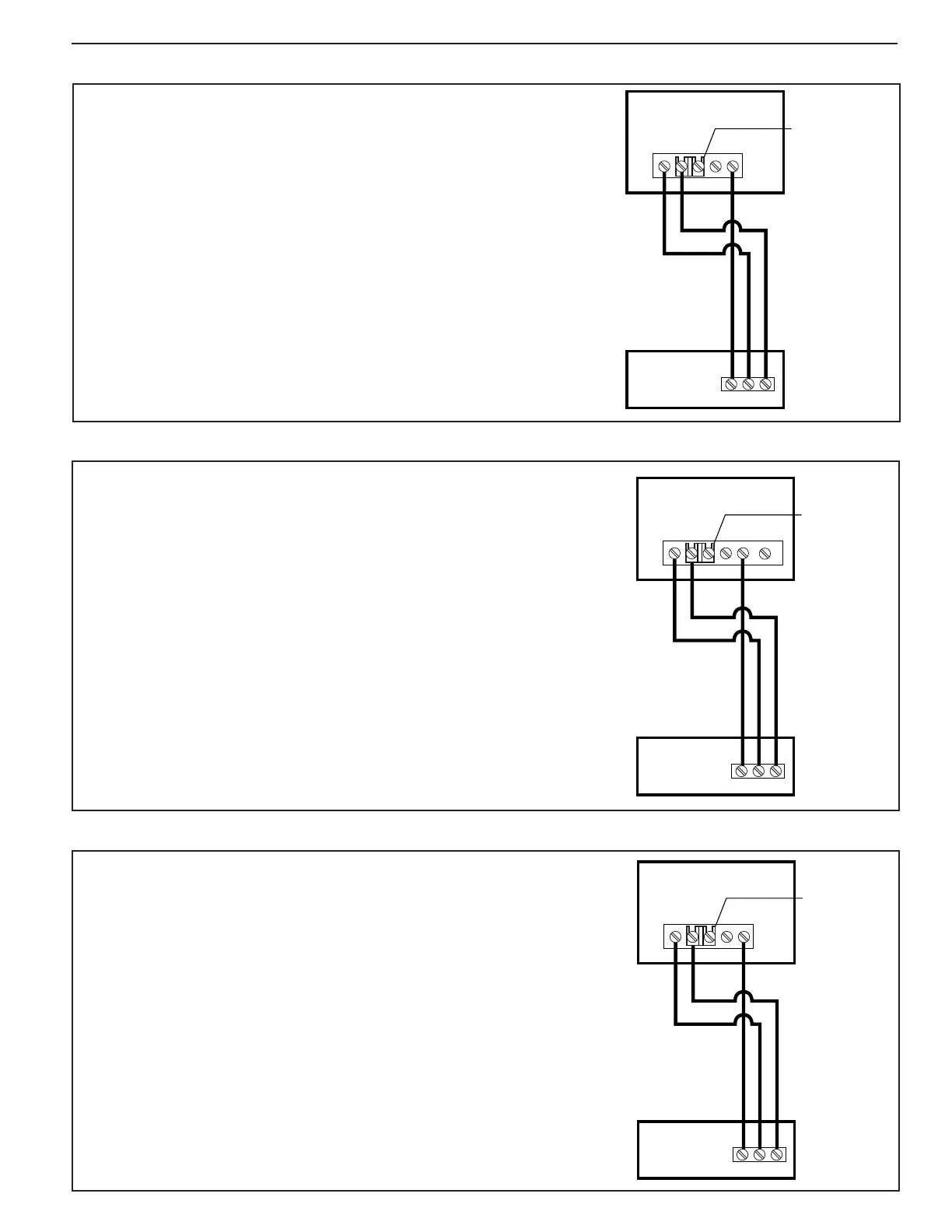

• Connect wire from terminal 'N' of water feeder
to terminal '2' on LWCO.
• Connect wire from terminal 'H' of water feeder
to terminal '1' on LWCO.
• Connect wire from terminal 'W' of water feeder
to terminal 'A' on LWCO.
Diagram 10 WF2-U-24 / Hydrolevel 400
UNI-MATCH
WATER FEEDER
WF-U-24
21P1 P2 A
WNH
HYDROLEVEL CG400
Factory
Jumper
Bar
BURNER
• Connect wire from terminal 'N' of water feeder
to terminal '2' on LWCO.
• Connect wire from terminal 'H' of water feeder
to terminal '1' on LWCO.
• Connect wire from terminal 'W' of water feeder
to terminal 'A' on LWCO.
Diagram 11 WF2-U-24 / Hydrolevel CG400
UNI-MATCH
WATER FEEDER
WF-U-120
21P
1 P2 A
WNH
Factory
Jumper
Bar
HYDROLEVEL 450
• Connect wire from terminal 'N' of water feeder
to terminal '2' on LWCO.
• Connect wire from terminal 'H' of water feeder
to terminal '1' on LWCO.
• Connect wire from terminal 'W' of water feeder
to terminal 'A' on LWCO.
Diagram 12 WF2-U-120 / Hydrolevel 450
