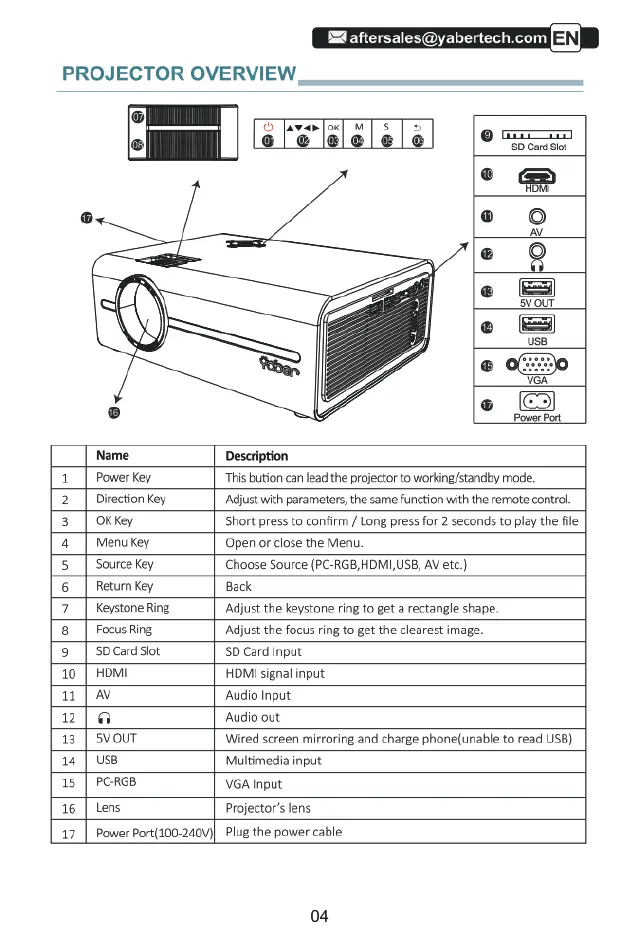

Yaber U5 - PROJECTOR OVERVIEW

o]
'SD Card Siot.
HONT
@
|
6|
6|0
& e 6 0
Name Description
1| Powerkey “This bution can lead the projector to working/standby mode.
2| Direction Key Adjust with parameters, the same function with the remote control.
3 | OKkey Short press to confirm / Long press for 2 seconds to play the file
4| Menukey Open or close the Menu
5 | SourceKey Choose Source (PC-RGB,HDMI,USB, AV etc)
6 | RetumKey Back
7| KeystoneRing Adjust the keystone ring to get a rectangle shape.
s | FocusRing Adjust the focus ring to ge the clearest image.
g | sDCardslot 5D Card Input
10 | HOMI HDMI signal input
| A Audio Input
2] a Audio out
13 | svouT Wired screen mirroring and charge phone(unable to read USB)
14 | Uss Multimedia input
15 | PCRGE VoA nput
16 | Lens Projector’s lens
17 | Power Port(100-240v)| Plug the power cable
04
