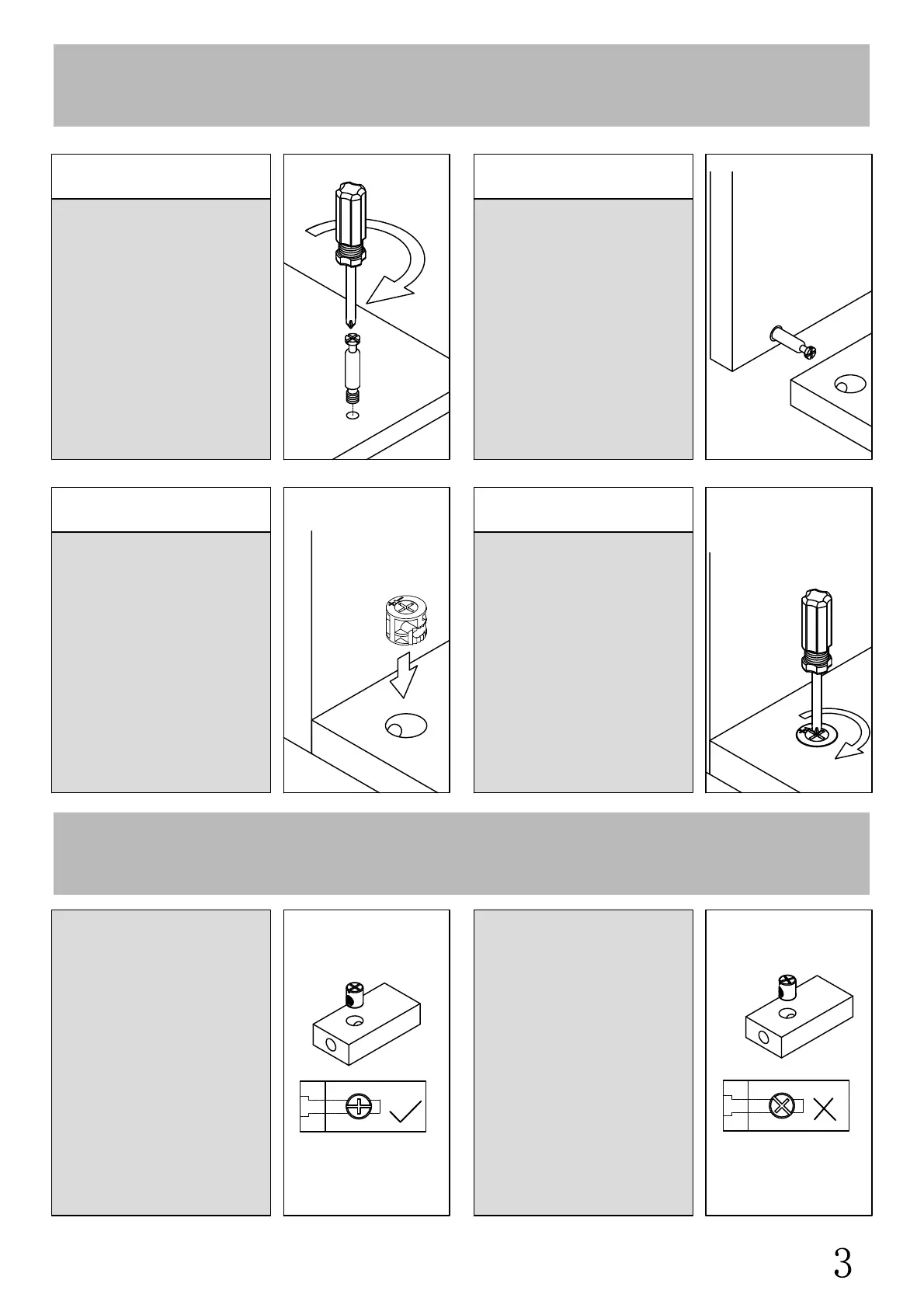

Using Camlocks
Step 1
Connect the male
camlock as diected in
the assembly instructions
using a scewdriver.
Step 2
Push the male camlock
into the entry hole.
Step 3
Insert the female
camlock as shown in the
instruction.
Note: ensure that the
arrow on the top of the
camlock points towards
the entry hole for the
male camlock.
Step 1
Turn the female camlock
clockwise with a
screwdriver.
You should feel a click
when the camlock is
locked in place.
The joint is now secure.
DO NOT OVER TIGHTEN.
NE PAS SERRER EXCESSIVEMENT.
Insert the horizontal nut into
the hole, rotate the
horizontal threaded hole to
align with the end hole of the
wooden board, as shown in
Figure A
Assembly Instructions for Lateral Nuts
Please ensure that the
threaded hole of the
horizontal nut is aligned with
the horizontal hole at the
end of the wooden board,
otherwise the screw cannot
be installed
