Yale CPA Series User Manual

16
1
9
7
4
8
6
3
2
5
15
19
21
24
28
17
25
29
12
13
15
20
18
21
20
11
10
14
26
27
22
23
16
2223

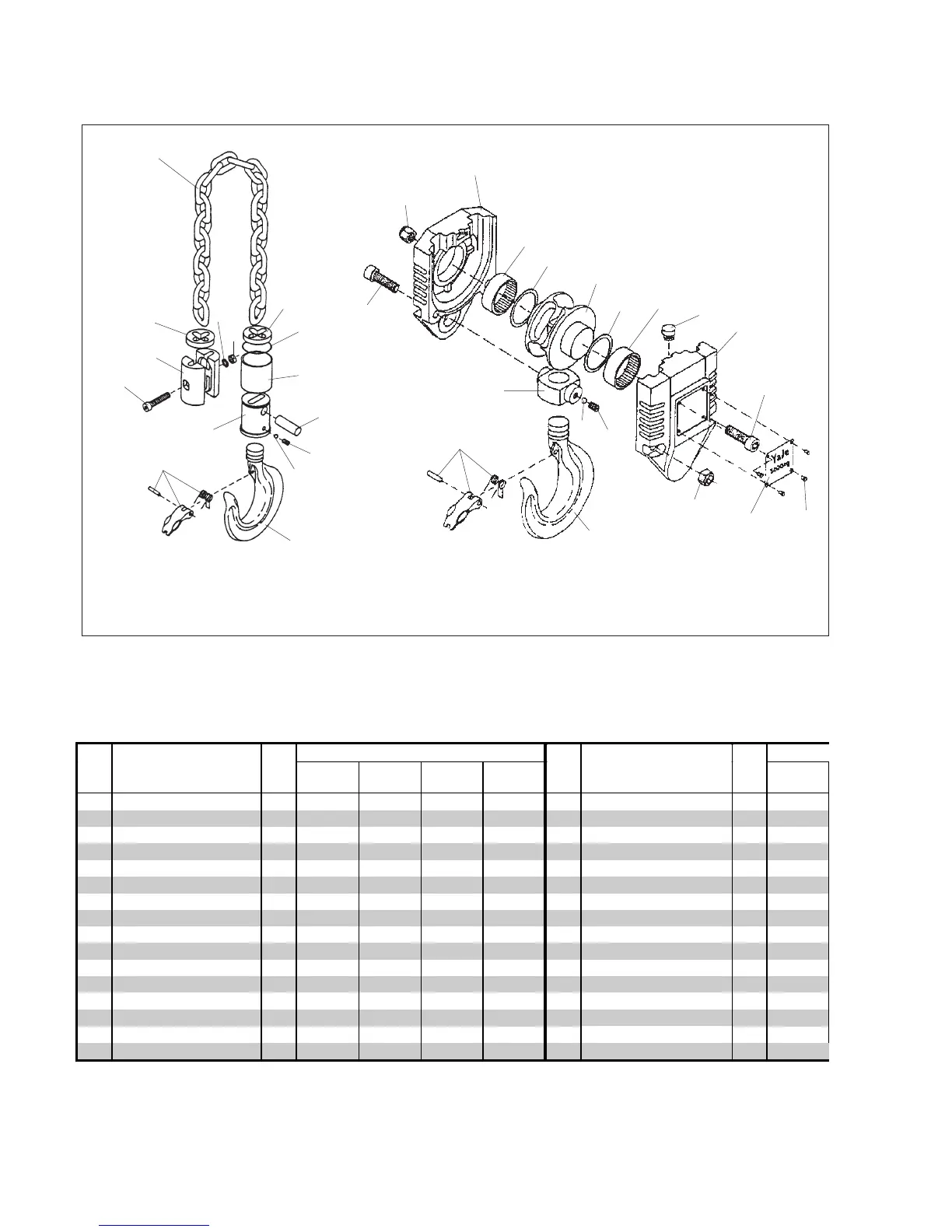

Fig. 17: Lower block
1- fall
2- fall
Yale-Part. No.
Y
No. Description Qty. CPA 20-8 CPA 30-6 No. Description Qty. CPA 40-4
1-8 Lower block assy. 1 0609993 0609909 15-23 Lower block assy. 1 0609994
1-2 Hook assy. 1 0408430 0408430 15 Coupling half 2 0609495
2 Safety latch kit 1 0408671 0408671 16 Load chain sheave 1 0609505
3 Load hook coupling 1 0608851 0608851 17 Buffer 1 0601704
4 Tube 1 0600003 0609908 18 Capacity plate 2 0600001
5
Ball kit (15 pieces. á
∅
5)
1 0404767 0404767 19
Nail
∅
3 x 4
8 9128004
6 Set screw 1 9114030 9114030 20 Screw 2 9102053
7 Circlip 1 9139020 9139020 21 Nut 2 9115118
8 Anchor pin 1 0608855 0608855 22 Needle bearing 2 9153083
9 Buffer 1 0609734 0609734 23 Shim 2 9121218
10-14 Swivel block assy. 1 0609995 0609995 24-25 Load hook assy. 1 0408434
10 Swivel block half 2 0608867 0608867 25 Safety latch kit 1 0408672
11 Screw 1 9102019 9102019 26-28 Hook connector 1 0404850
12 Lock washer 1 9122032 9122032 27
Ball kit (16 pieces. á
∅
6)
1 0404799
13 Nut 1 9115014 9115014 28 Set screw 1 9114184
14 Buffer 1 0609734 0609734 29 Chain (for all units)*
* Quote length
