Electric Chain Hoist CPE/F
3
1. GENERAL INFORMATION
Attention: All users must read these operating instructions carefully prior
to the initial operation. These instructions are intended to acquaint the
user with the hoist/trolley and enable him to use it to the full extent of
its intended capabilities.
The operating instructions contain important information on how to
handle the hoist/trolley in a safe, correct and economic way. Acting
in accordance with these instructions helps to avoid dangers, reduce
repair costs and downtime and to increase the reliability and lifetime
of the hoist/trolley.
Anyone involved in doing any of the following work with the hoist/trolley
must read the operating instructions and act accordingly:
• Operation, including preparation, trouble shooting and cleaning
• Maintenance, inspection, repair
• Transport
Apart from the operating instructions and the accident prevention act
valid for the respective country and area where the hoist / trolley is used,
also the commonly accepted regulations for safe and professional work
must be adhered to.
The user is responsible for the proper and professional instruction of
the operating personnel.
Every unit leaving the factory is furnished with a test certifi cate that
shows the serial number of the hoist / trolley. This certifi cate has to be
fi led together with the inspection manual.
The continuous sound level at the place of work is equal to >70 dB.
The measurements were taken at a distance of 1 m from the hoist at 9
positions in accordance with DIN 45635, precision class 2.
2. CORRECT OPERATION
Maximum capacity
The Yale electric chain hoist series CPE/F has been designed to lift
and lower loads up to the rated capacity. The lifting capacity indicated
on the hoist/trolley is the maximum safe working load which must not
be exceeded.
Danger zones

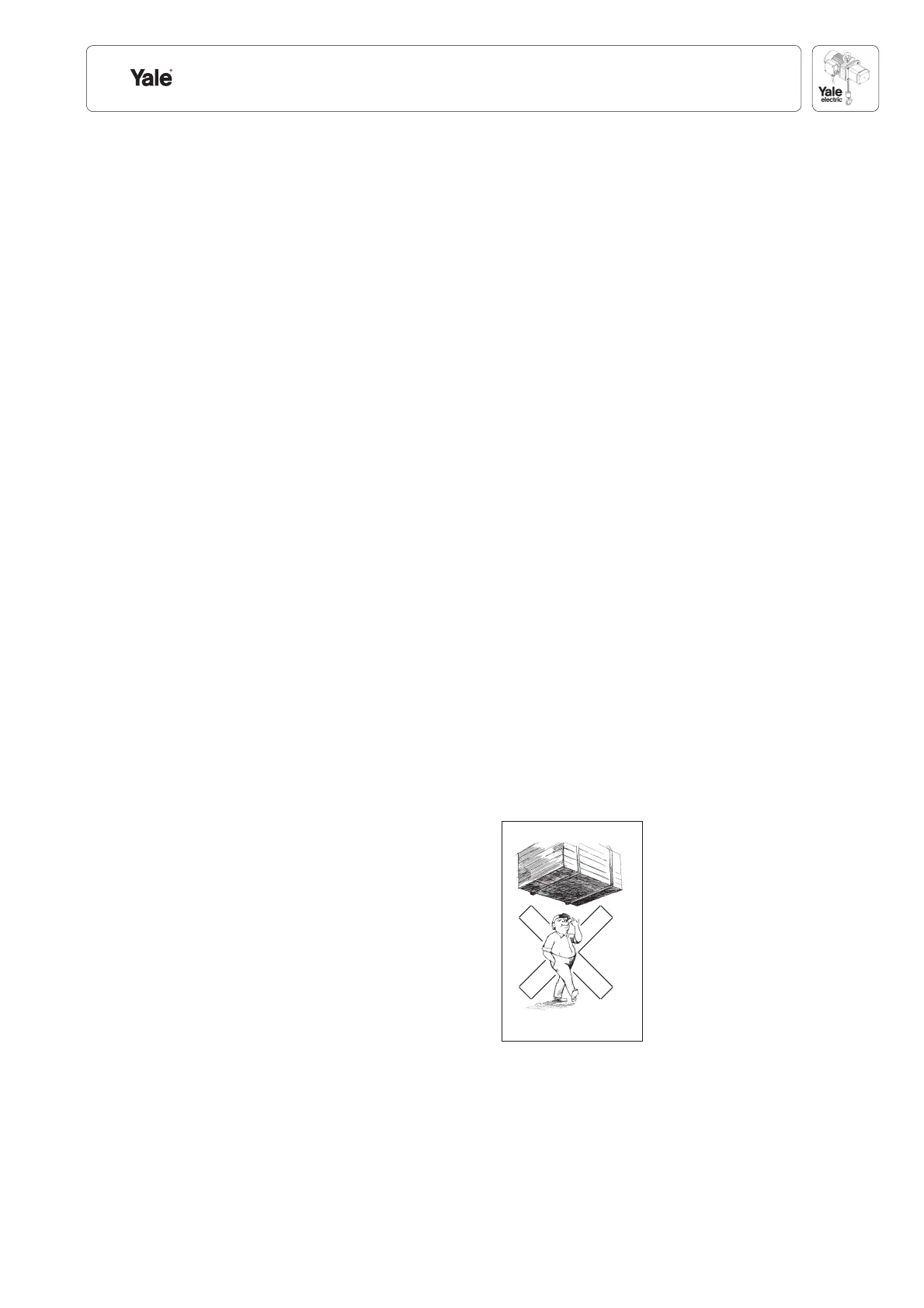

• Do not allow personnel to pass under a
suspended load (see Fig. 2).
• After lifting or tensioning, a load must
not be left unattended for a longer
period of time.
• Start moving the load only after it has
been attached correctly and all personnel
are clear of the danger zone.
Attaching the hoist / trolley
• The operator must ensure that the hoist / trolley is attached in a
manner that does not expose himself or other personnel to danger by
the hoist, trolley, chain(s) or the load.
TABLE OF CONTENTS PAGE
1. General information 3
2. Correct operation 3
Maximum capacity 3
Danger zones 3
Attaching the hoist / trolley 3
Temperature range 4
Theoretical service life 4
Regulations, maintenance / repair 4
3. Incorrect operation 4
4. Assembly 4
4.1 Inspection before assembly 4
4.2 Electric chain hoist with hook suspension 4
4.3 Electric chain hoist with trolley 5
Assembly of the trolley 5
Assembly, Shortening or extending the hand chain 6
4.4 Electrical connection 6
Preparation 6
Connecting to the power supply 6
5. Functional test after assembly 8
6. Commissioning 8
Inspection before initial operation 8
Inspection by a crane expert 8
7. Operation 8
Installation, service, operation 8
Inspection before starting work 8
Inspection of load chain 8
Inspection of chain end stop 8
Inspection of chain reeving 8
Inspection of suspension and load hooks 8
Attaching the load 8
Inspect the traverse (for trolleys) 8
Check adjustment of trolley width 8
Traversing the trolley 8
Attaching the load 9
Lifting / lowering the load 9
Emergency stop 9
8. Service 9
8.1 Daily checks 9
8.2 Regular inspections, service and testing 10
8.3 Load chain 10
Lubricating the load chain 10
Inspecting the load chain for wear 10
Replace the load chain 10
1-strand design, 2-strand design 10
8.4 Maintenance of suspension and load hooks 11
8.5 Maintenance of trolley 12
8.6 Maintenance of overload protection 12
Overload protection 12
Adjustment of overload protection 12
8.7 Maintenance of gearbox 12
Oil change 12
Disassembly and reassambly 12
8.8 Maintenance of motor 13
Motor 13
Disc brake 13
8.9 Electric chain hoist in general 13
Fig. 2
