Yale Electric Chain Hoist - CPV/F (SPARE PARTS)
®

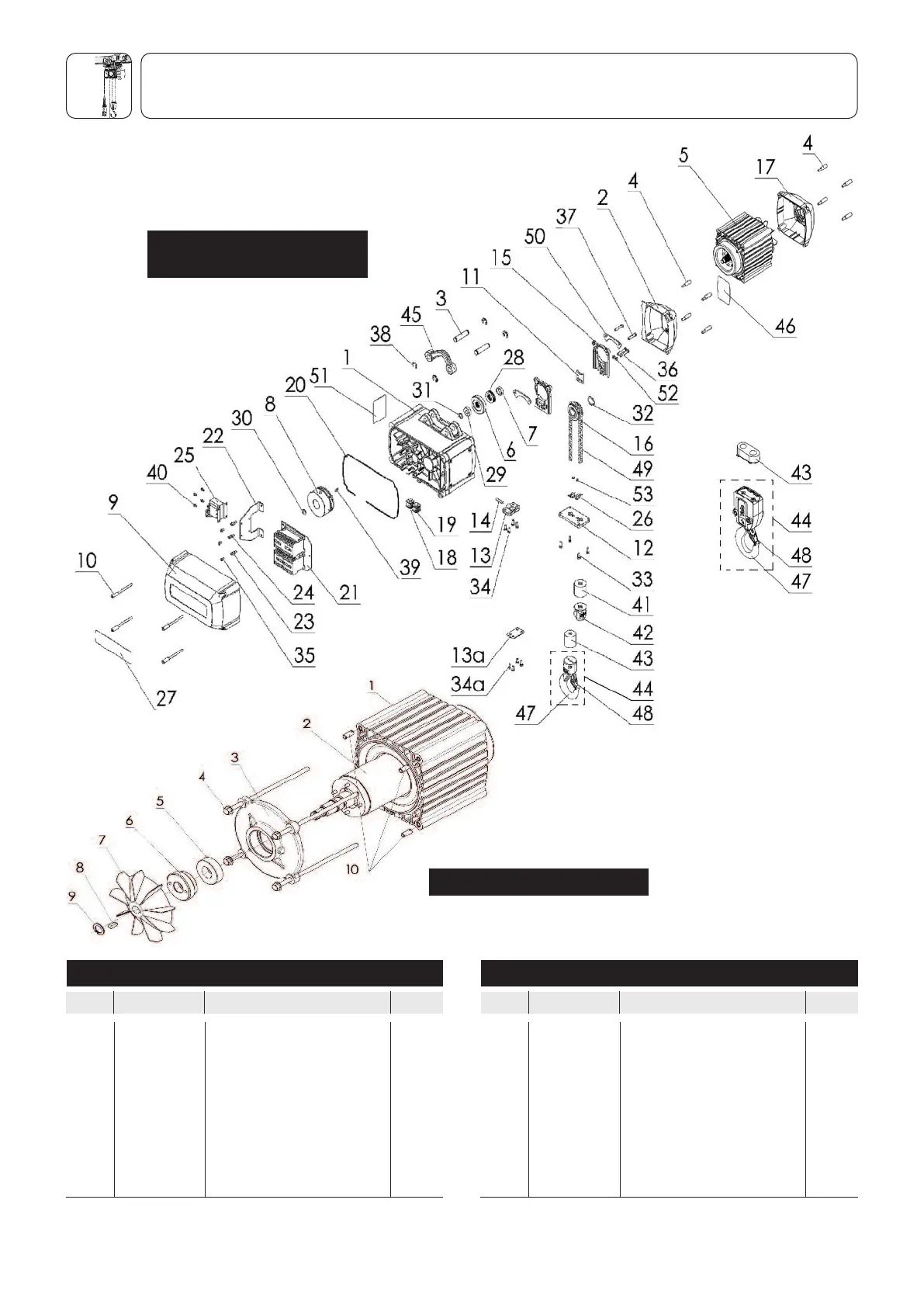

MOTOR - Model: CPV/F 2-8/5-4/5-8/10-4
HOIST MAIN FRAME
TO SUIT ALL MODELS
Item Article no. Description Qty.
1 00670052 Stator assembly 1
2 00670119 Rotor assembly 1
3 00670067 End plate 1
4 09101694 Screw motor 4
5 09151014 Bearing 1
6 00670122 Set screw 1
7 00670080 Fan 1
8 09131075 Flat key 1
9 09129033 Retaining ring 1
10 00670081 Thread insert 4
MOTOR - Model: CPV/F 10-8/20-4
Item Article no. Description Qty.
1 00670139 Stator assembly 1
2 00670144 Rotor assembly 1
3 00670143 End plate 1
4 00670434 Screw motor 4
5 09151018 Bearing 1
6 00670147 Set screw 1
7 00670153 Fan 1
8 09131056 Flat key 1
9 09129016 Retaining ring 1
10 00670151 Thread insert 4
16
Y
ale
CPV/F
®
CPV/F MOTOR

Yale CPV Series Specifications

General

Load Chain	Grade 80 alloy steel
Finish	Painted or powder-coated
Type	Chain Hoist
Standard Lift	3m
Housing Material	Steel
Lift Height	3 m (Standard). Higher lifts available.
Operation Type	Manual
Construction	Steel
