Yale CPV Series User Manual

GEAR BOX TO SUIT:
CPV/F 2-8/5-4/5-8/10-4

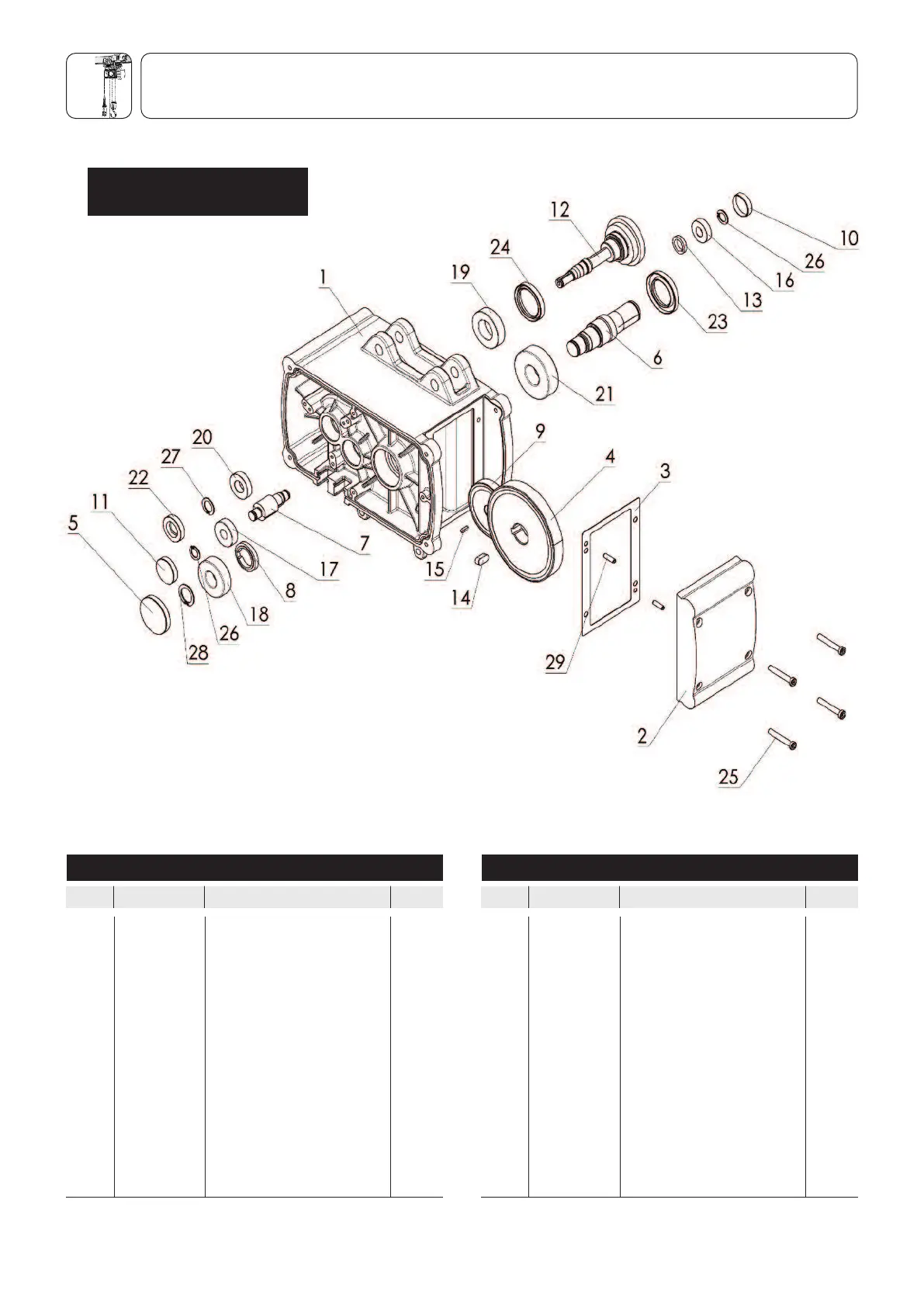

GEAR BOX - Model: CPV/F 2-8/5-4/5-8/10-4
Item Article no. Description Qty.
1 00670353 Gear housing 1
2 00670082 Counterweight 1
3 00670117 Seal gear cover 1
4 00670115 Gear 1
5 00670086 Bearing cover 1
6 00670106 Drive pinion 1
7 00670114 Pinion shaft 1
8 00670067 Spacer 1
9 00670113 Gear Z2 1
10 00670069 Bearing cover 1
11 00670084 Bearing cover 1
12 00670102 Drive pinion assembly 1
13 00670071 Spacer 1
14 09131041 Fitting key 1
15 09131033 Fitting key 1
GEAR BOX - Model: CPV/F 2-8/5-4/5-8/10-4
Item Article no. Description Qty.
16 09150032 Bearing 1
17 09150022 Bearing 1
18 09150011 Bearing 1
19 09150009 Bearing 1
20 09150038 Bearing 1
21 09151135 Bearing 1
22 09172114 Oil seal 1
23 09172115 Oil seal 1
24 09172019 Oil seal 1
25 09102291 Screw 4
26 09129038 Retaining ring 2
27 09129023 Retaining ring 1
28 09129025 Retaining ring 1
29 09134027 Spring pin 2
Yale Electric Chain Hoist - CPV/F (SPARE PARTS)
®
18
Y
ale
CPV/F
®
