Yale CPV Series User Manual

Yale Electric Chain Hoist - CPV/F
®
2
*Changing the gear ratio results in different lifting speeds. **Optionally available with 11m/min.

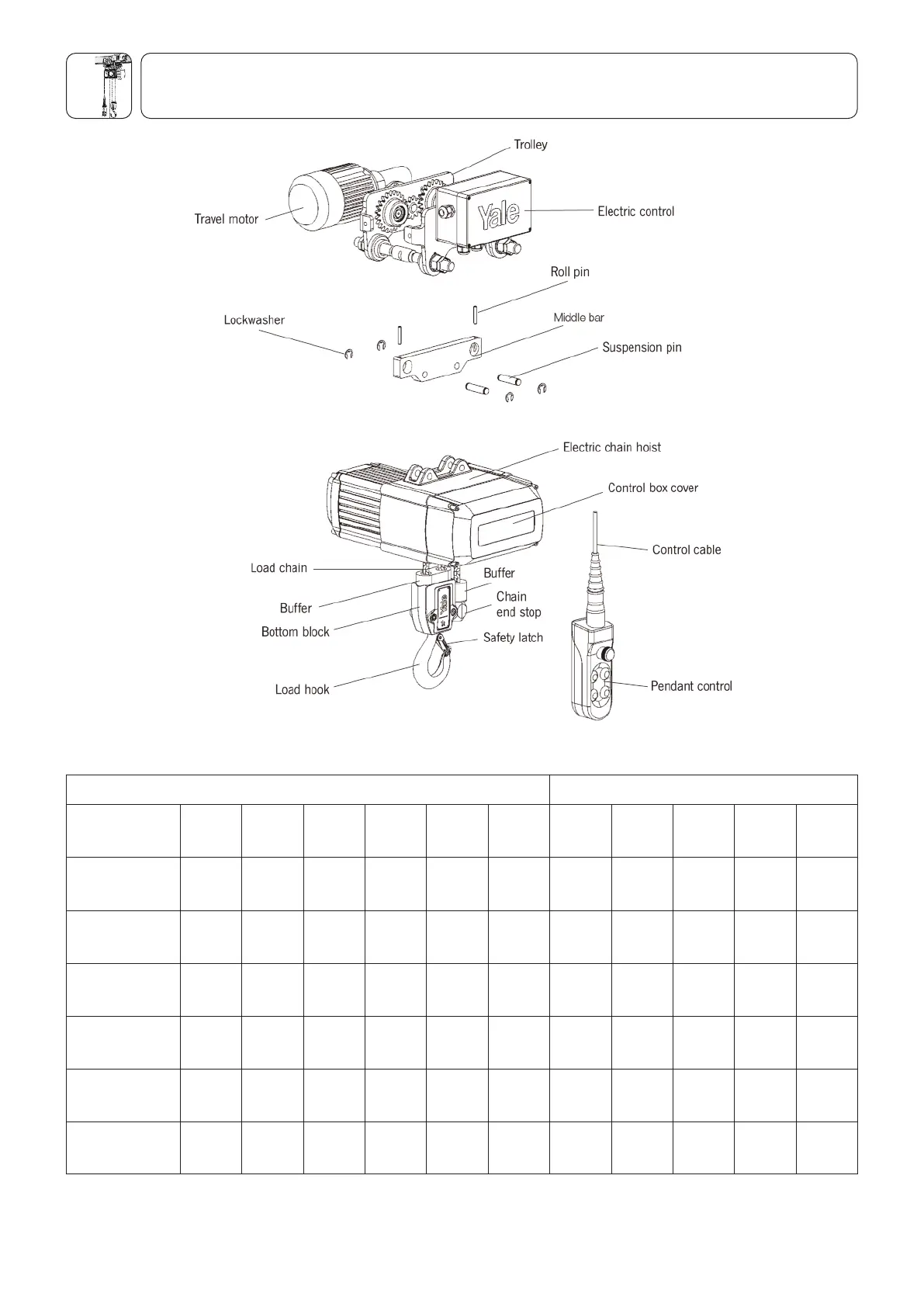

Fig. 1
Technical data electric chain hoist Technical data electric trolley
Capacity Number Motor Motor *Lifting FEM Beam Curve **Travel Motor Motor
Model of chain rating ED speed(s) group widths radius speed(s) rating ED
kgs falls % kW m/min mm min. m m.min kw %
CPV 2-8 50 0.37 8 58 - 180 18 0.18 40
250 1 1 Am or 0.9
CPV/F 2-8 17 / 33 0.09 / 0.37 2 / 8 180 - 300 4.5 / 18 0.06 / 0.18 20 / 40
CPV 5-4 50 0.37 4 98 - 180 18 0.18 40
500 2 1 Am or 0.9
CPV/F 5-4 17 / 33 0.09 / 0.37 1 / 4 180 - 300 4.5 / 18 0.06 / 0.18 20 / 40
CPV 5-8 50 0.75 8 98 - 180 18 0.18 40
500 1 1 Am or 0.9
CPV/F 5-8 17 / 33 0.18 / 0.75 2 / 8 180 - 300 4.5 / 18 0.06 / 0.18 20 / 40
CPV 10-4 50 0.75 4 98 - 180 18 0.18 40
1000 2 1 Am or 0.9
CPV/F 10-4 17 / 33 0.18 / 0.75 1 / 4 180 - 300 4.5 / 18 0.06 / 0.18 20 / 40
CPV 10-8 50 1.5 8 98 - 180 18 0.18 40
1000 1 1 Am or 1.15
CPV/F 10-8 17 / 33 0.37 / 1.5 2 / 8 180 - 300 4.5 / 18 0.06 / 0.18 20 / 40
CPV 20-4 50 1.5 4 98 - 180 18 0.18 40
2000 2 1 Am or 1.15
CPV/F 20-4 17 / 33 0.37 / 1.5 1 / 4 180 - 300 4.5 / 18 0.06 / 0.18 20 / 40
Y
ale
CPV/F
®

Yale CPV Series Specifications

General

Load Chain	Grade 80 alloy steel
Finish	Painted or powder-coated
Type	Chain Hoist
Standard Lift	3m
Housing Material	Steel
Lift Height	3 m (Standard). Higher lifts available.
Operation Type	Manual
Construction	Steel
