STATUS
CODE

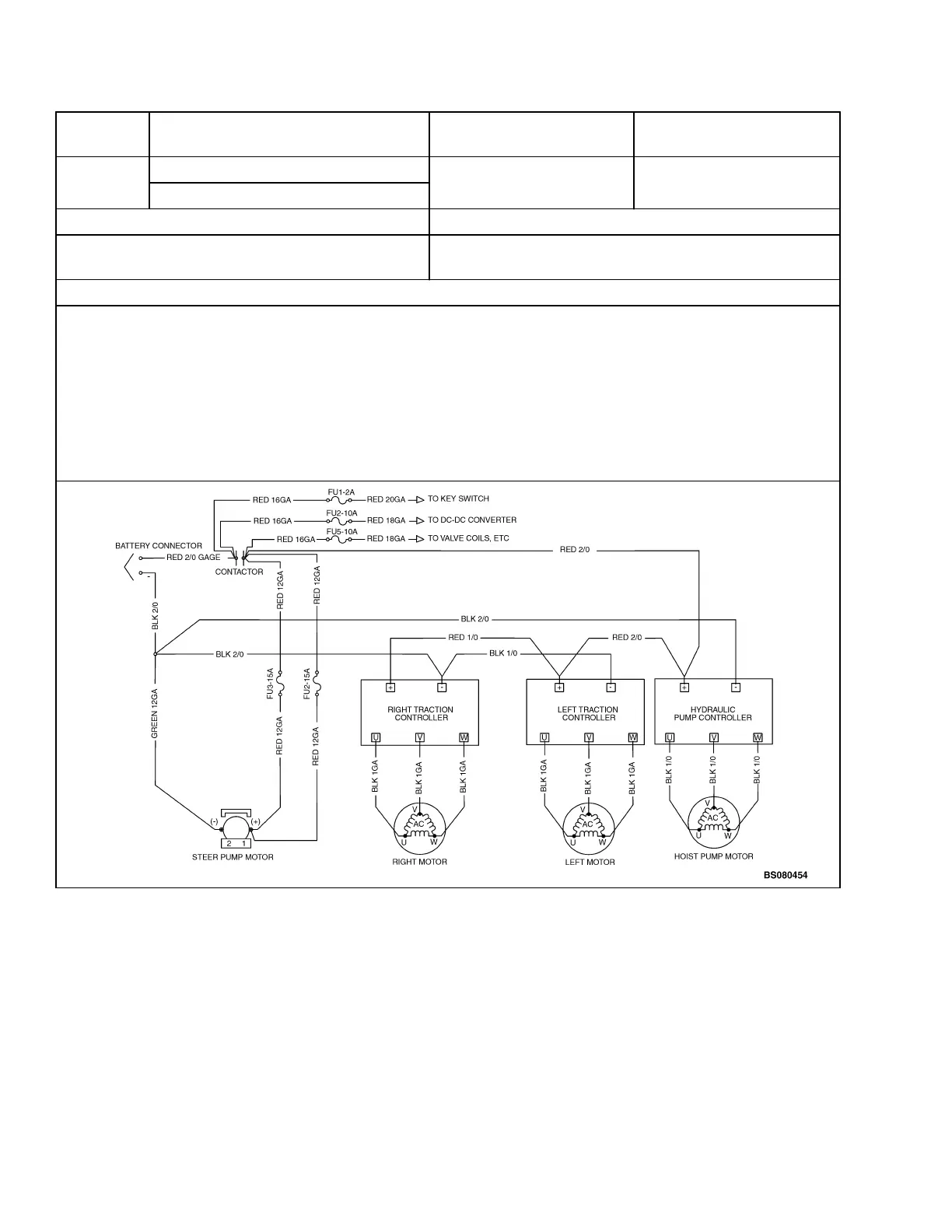

DISPLAY MESSAGE RECOVERY METHOD CIRCUIT
247 (cont) 00247 Re-key only RH Traction, Display
Node 3 (16)
DESCRIPTION BEHAVIOR
Serial number mis-match between RH Traction
(master) and display.
Traction limited to Mode 1, lowering allowed.
Probable Causes and Test Procedures
5. Check CAN Communication between RH Traction & Display.
a. Is there continuity between Pin 4 of dash connector & Pin 27 of RH traction controller?
YES- Proceed to Step 5b.
NO- Inspect connections & wires 901 & 900, repair as necessary.
b. Is there continuity between Pin 3 of dash connector & Pin 28 of RH traction controller?
YES- Verify RH Traction controller operation (see Code 65527).
NO- Inspect connections & wires 901 & 900, repair as necessary.
Troubleshooting 2200 YRM 1415
