lower. Be sure to return the screw to the original position
once the manual lowering process is complete by slowly
turning the screw clockwise until it stops. Tighten the man-
ual override screw to 36 in. lb (+0.7/−0).

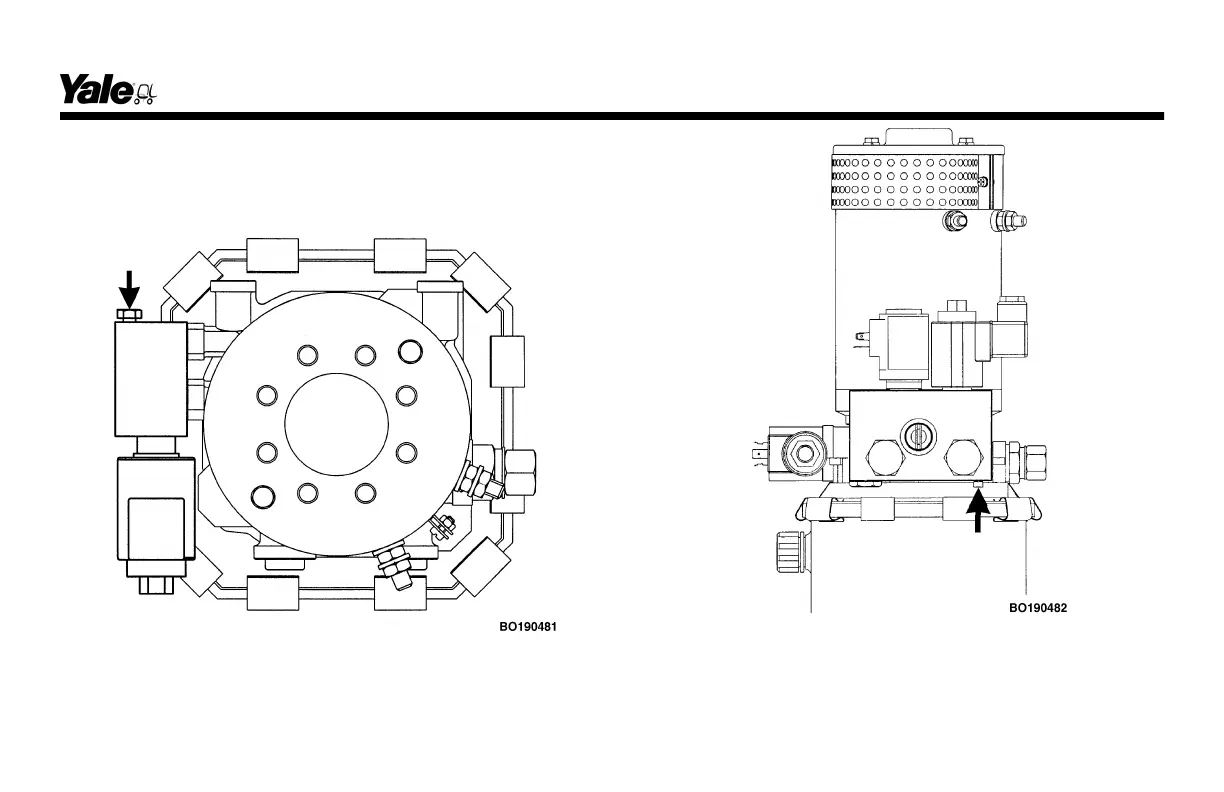

Figure 9. Single Function Manual Lowering Control
Figure 10. Auxiliary Function Manual Lowering Control
Operating Procedures
47
