5. If the lift truck is equipped with a sideshift carriage or
attachment, inspect the parts for cracks and wear.
Make sure the parts that fasten the sideshift carriage or
attachment to the carriage are in good condition.
6. Check that the lift chains are correctly lubricated. See
the Periodic Maintenance section for specific instructions.
7. Inspect the lift chains for cracks or broken links and pins.
See Figure 18.
8. Inspect the chain anchors and pins for cracks and dam-
age.
9. Make sure the lift chains are adjusted so that they have
equal tension. If the chains need to be replaced or adjus-
ted, it must be done by authorized personnel.

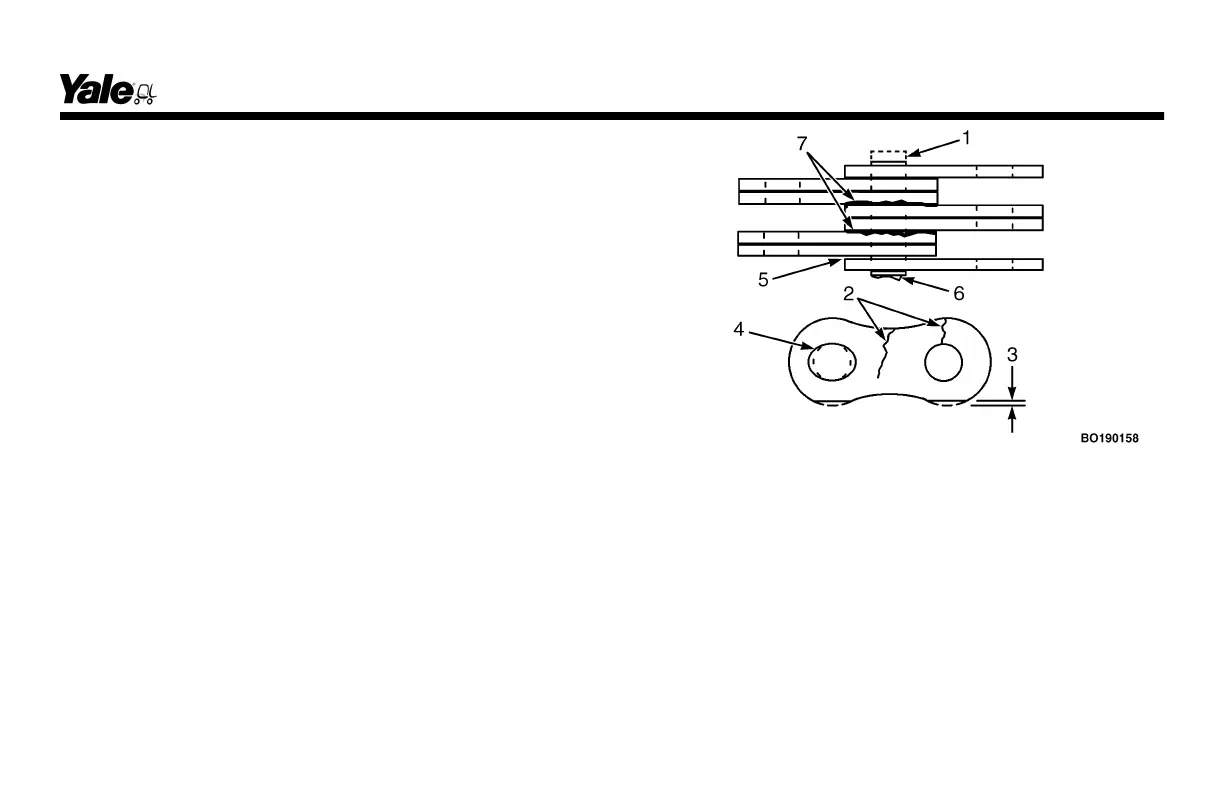

1. WORN PIN
2. CRACKS
3. EDGE WEAR
4. HOLE WEAR
5. LOOSE LEAVES
6. DAMAGED PIN
7. RUST
Figure 18. Check the Lift Chains
Maintenance
69
