Troubleshooting 2200 YRM 1067
Dash Display
Controller LED Handset or PC
AL01 1Flash SERIAL ERROR #1
CONDITION
Connection/communication error between control
cardandtractioncontroller.
TRUCK RESPONSE
Traction and hoist functions disabled.
POSSIBLE CAUSES AND TEST PROCEDURES
• Loose or damaged electrical connection between con-
trol card and controller.
Verify connection at controller.
Verify wire harness connection at base of steer han-
dle.
Verify connection at control card.
• Damaged or defective control card.
Measure voltage at pin 5, connector C, on the con-
troller. With control card disconnected, this should
be about 12V; with the card connected, it should be
about 5V.
If values are not within specification, check the func-
tionality of the control card. Refer to Control Card
Functional Test in this section.

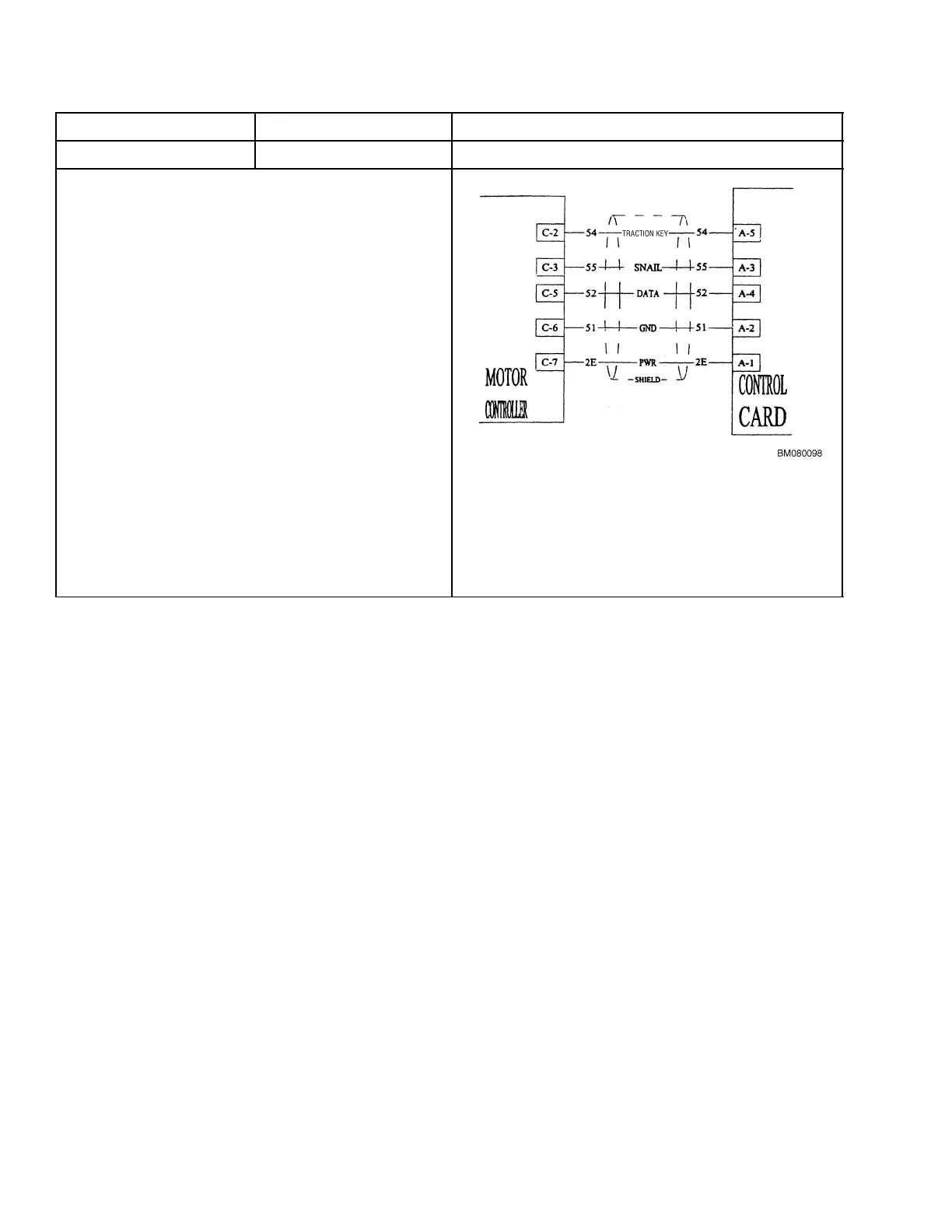

LOGIC
No information or incorrect
information has been sent from the
control card to controller.
18
To Next Page
