2200 YRM 1067 ZAPI™ PC Interface
The PC software can test the following (four selections
at a time). See Figure 33.
1. Battery Voltage - voltage across the battery.
2. Motor Voltage - voltage across the traction motor.
3. Motor Current - current through the traction motor.
4. Field Current - current through the fields in the
traction motor.
5. Temperature - current temperature of the con-
troller.
6. Accelerator - voltage and percent of "throw" from
the traction thumbwheel.
7. Lifting Control
8. Tiller Switch - position of tiller handle.
9. Forward Switch - directional input.
10. Backward Switch - directional input.
11. Lifting Switch - refers to switch on right side of tiller
head.
12. Lowering Switch - refers to switch on right side of
tiller head.
13. Fork Lift Switch -referstoswitchonleftsideof
tiller head.
14. Fork Lower Switch - refers to switch on left side of
tiller head.
15. Belly Switch
16. Snail Switch
17. Horn Switch
18. Cutback Switch
19. Lifting Block
20. Battery Model
21. Battery Charge - remaining charge on the battery.

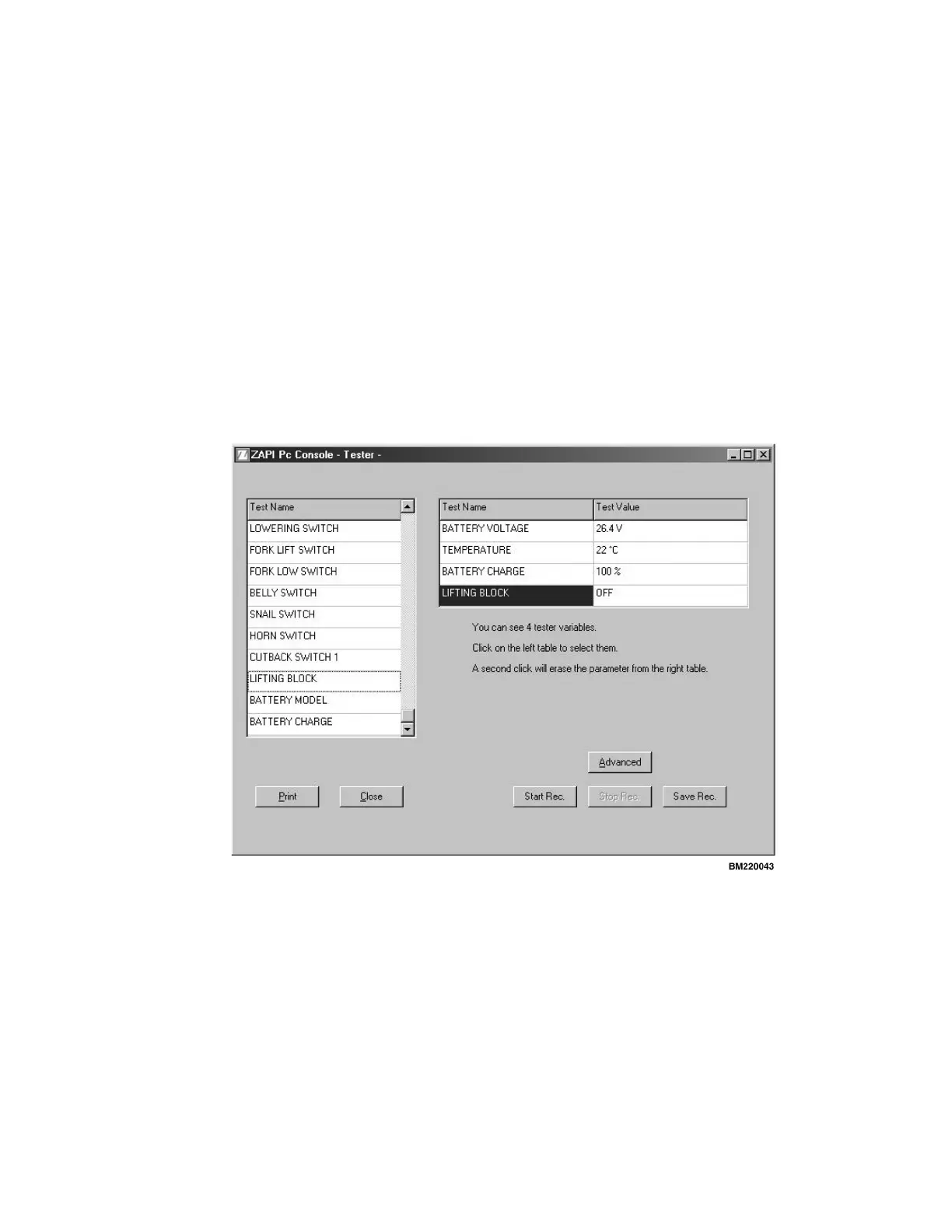

Figure 33. Test Name
55
