SERVICE INFORMATION
GT-222ES, SRM-222ES
F226S, T226S, C226S
6
Ignition
Air Gap Gauge
#.014 = .35mm
P/N 91004
ECHO
0
0.4
50
0.8
1.2
1.
MPa
0
b
PET-304

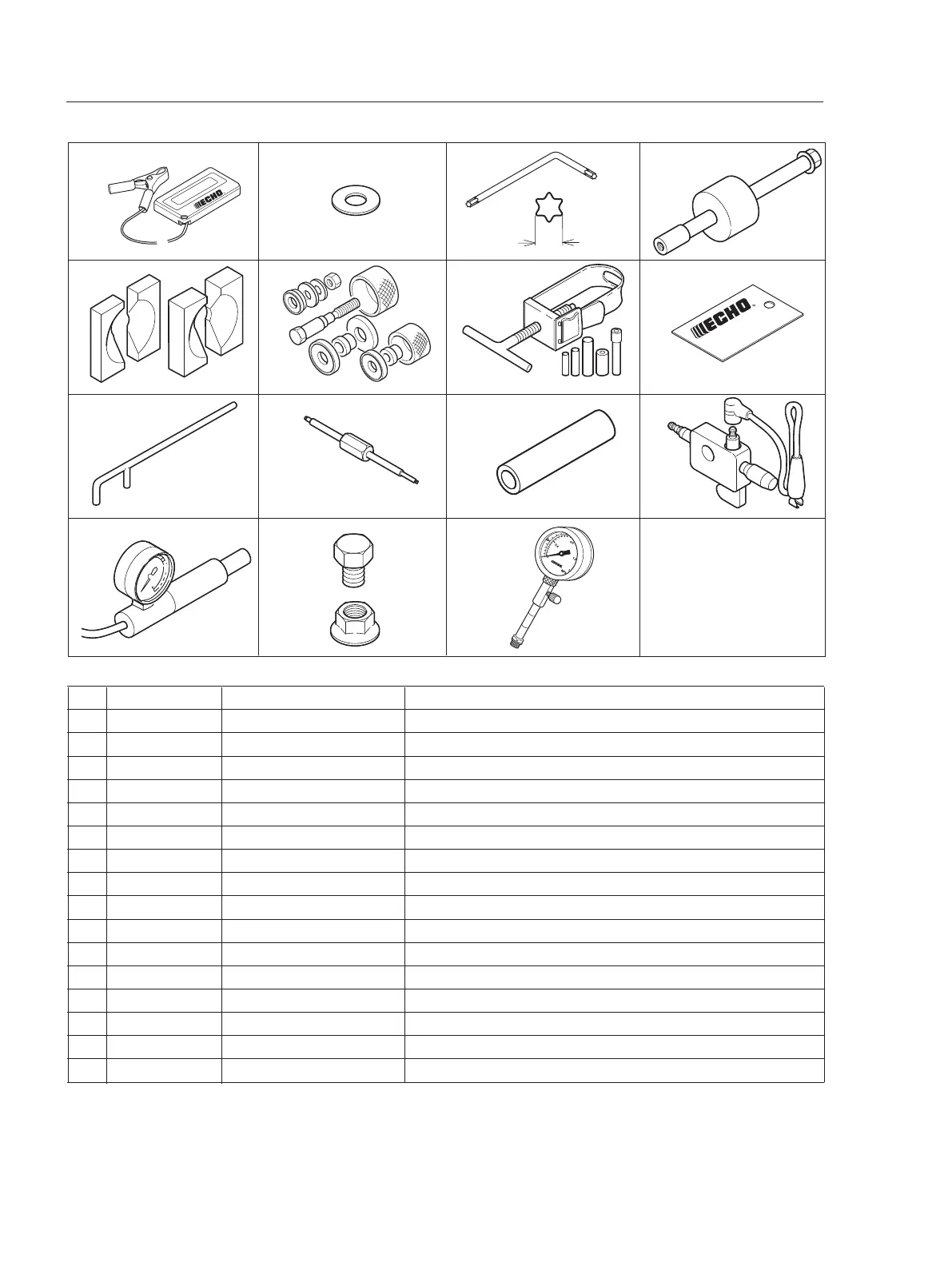

Key Part Number Description Used for:
1 G310-000050 Tachometer PET-304 Measuring engine speed to adjust carburettor
2 363018-00310 Washer Installing crankcase oil seal
3 X605-000050 Torx L wrench Removing and installing bolt
4 897603-23030 PTO shaft puller Removing driven (PTO) shaft
5 897701-06030 Bearing wedge Removing ball bearings on crankshaft
6 897701-14732 Bearing tool Removing and installing crankcase ball bearings
7 897702-30131 Piston pin tool Removing and installing piston pin
(Use 8 mm dia. adapter.)
8 91004 Module air gap gauge Adjusting pole shoe air gaps
9 897712-04630 2-pin wrench Removing and installing pawl carrier
10 91020 Limiter plug tool Removing and installing plug
11 897726-09130 Oil seal tool Installing crankcase oil seals
12 990511-30023 Spark tester Checking ignition system
13 897803-30133 Pressure tester Checking carburettor and crankcase leakages
14 900100-08008 Bolt Removing magneto rotor (fl ywheel)
15 433019-12330 Flange nut Removing magneto rotor (fl ywheel)
16 91037 Compression gauge Measuring cylinder compression
1-6 Special tools
1
6
14
15
7
3
8
16
10
5
9
12
11
2
4
13
