YAMADA NDP-5 series Maintenance Manual
4
of 1
of 1 rating
16 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3
■
NDP-40 BP_·BV_
type
▪

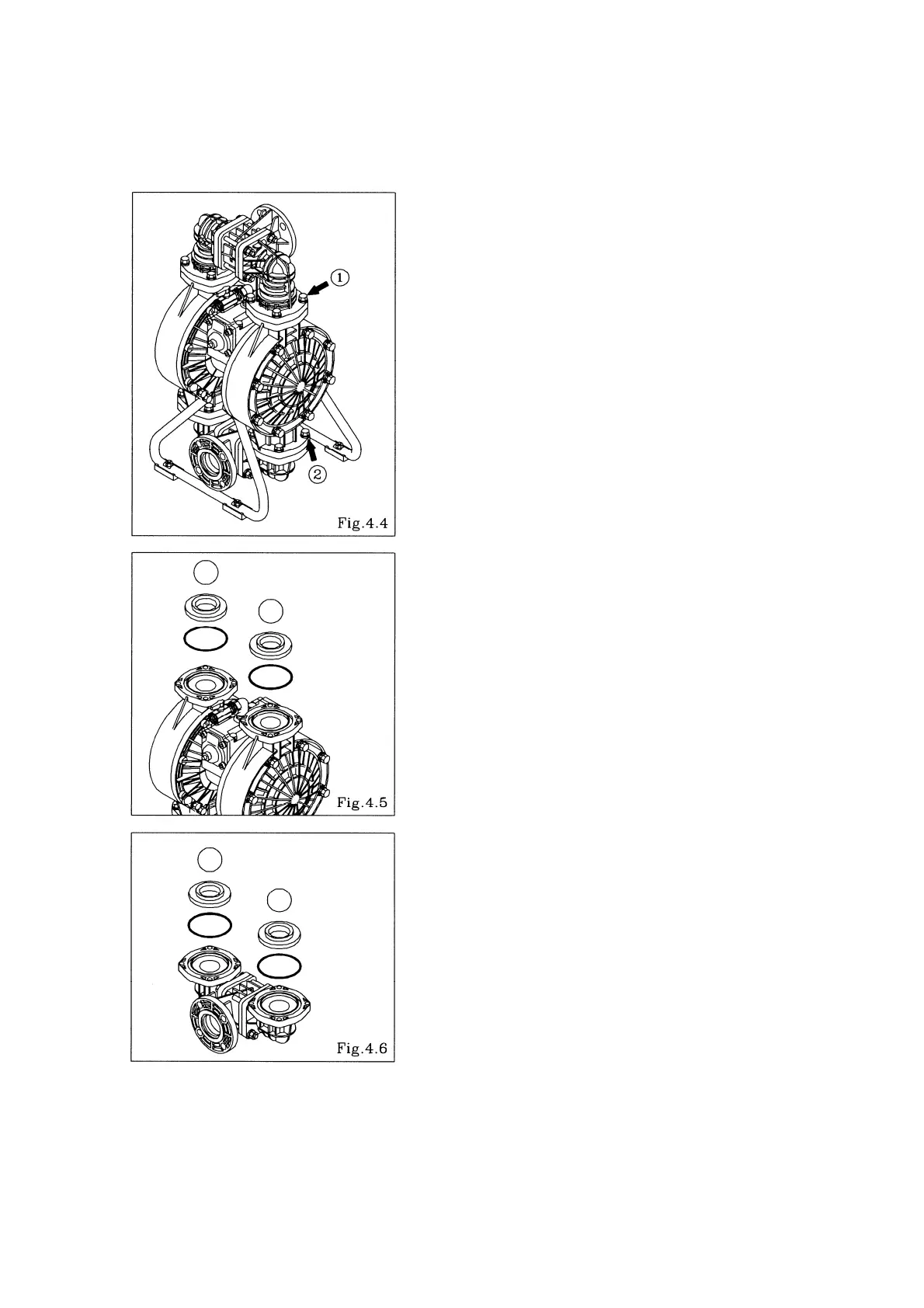

Remove the 8 retainer bolts “1” from the out manifold, and
remove the out manifold.
[Fig.4.4]
▪
Remove the ball, valve
seat and O ring. [Fig.4.5]
▪
Remove the 8 retainer bolts “2” from the in manifold, and
remove the in manifold.
[Fig.4.4]
▪
Remove the ball, valve
seat and O ring. [Fig.4.6]
5
7
Table of Contents
Warnings and Cautions
2
Table of Contents
3
1 Principles of Operation
4
2 Tools, Etc
4
General Tools
4
Special Tools
4
Misc
4
3 Ordering Replacement Parts
4
4 Balls and Valve Seats 4.1 Removal BA_, BS_, BF_ Types
5
NDP-40 BP_·BV_ Type
6
NDP-50 BP_·BV_, NDP-80 BP_ Types
7
Inspection
8
Installation
8
5 Diaphragm and Center Rod
9
Removal BA_, BS_, BF_ Types
9
BP_, BV_ Types
9
Inspection
10
B_T Types
11
6 Throat Bearing and Pilot Valve
12
Removal
12
Inspection
12
Installation
12
100 C Spool Valve Assembly
13
Removal
13
Inspection
14
Installation
14
8 Retightening of Tie Rods
15
