4. Balls and Valve seats
4.1 Removal
■BA_, BS_, BF_ types

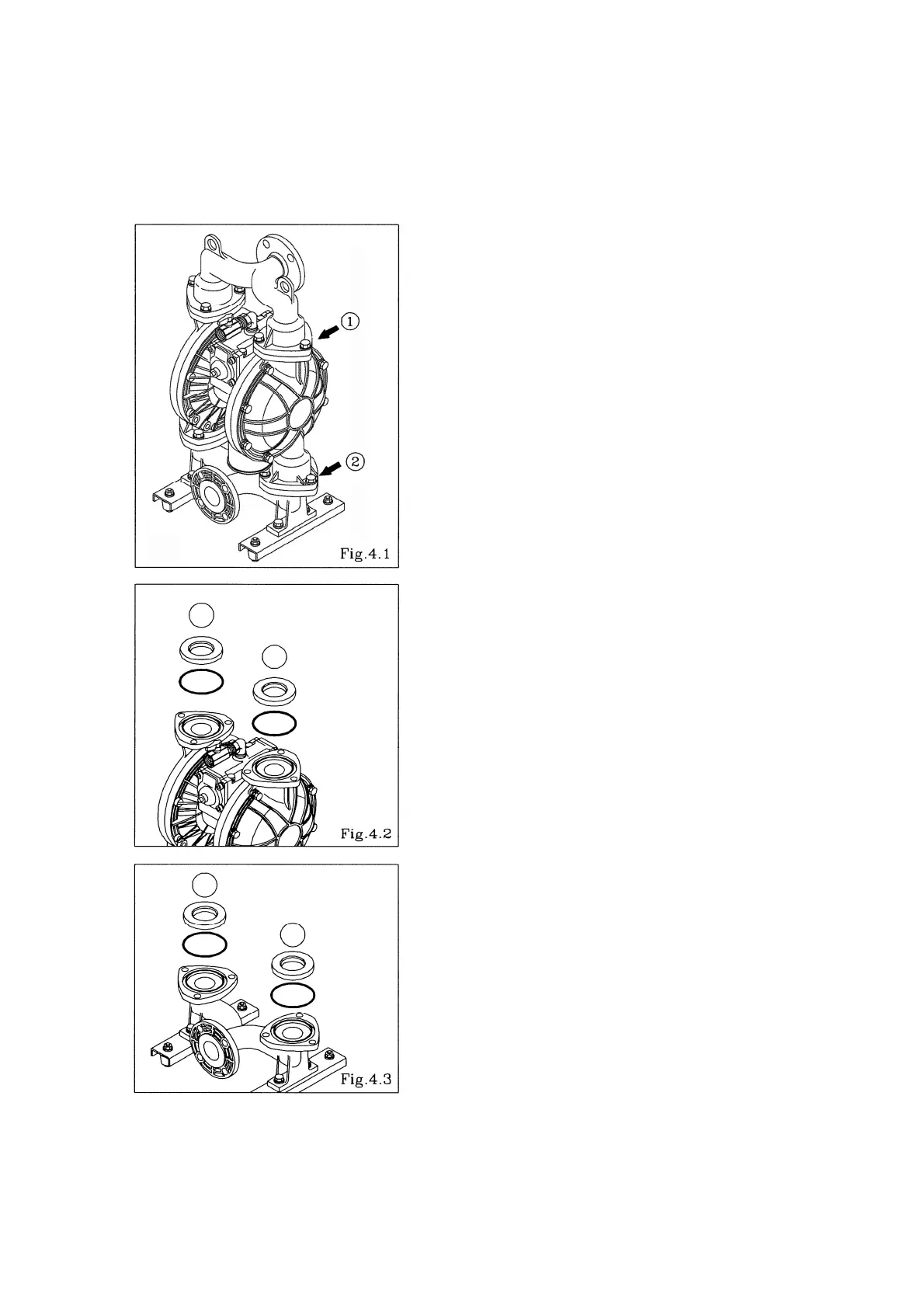

▪ Remove the 6 (8 on the NDP-80) retainer bolts “1” from the out
manifold, and remove the out manifold. [Fig.4.1]
▪ Remove the ball, valve seat and O ring. [Fig.4.2]
▪ Remove the 6 (8 on the NDP-80) retainer bolts “2” from the in
manifold, and remove the in manifold. [Fig.4.1]
▪ Remove the ball, valve seat and O ring. [Fig.4.3]
