Do not modify the tower to tow from
any other point or to carry any ac-
cessories or equipment not ap-
proved by Yamaha. The tower could
be damaged,
AR240
COLLAPSING THE WAKEBOARD
TOWER
The Wakeboard Tower can be col-
lapsed for boat storage in a building or
under a canopy or carport.
• Accidentally dropping the upper
tower section while collapsing or
raising it can damage the tower,
the boat, or both. An assistant
needs to help hold the upper
tower section in place during the
procedure.
• Donotoperatetheboatortrans-
port it on the trailer with the
tower in the collapsed position to
avoid possible damage.
Collapsing
1) Remove wakeboards and any other
accessories from the wakeboard
racks. Fold and secure the Bimini
top (if up).
2) Have the two short tower storage
supports ready. While an assistant
holds the upper tower section in the
middle, remove the inboard-side
knobs from the bottom end of the
tower supports on each side.

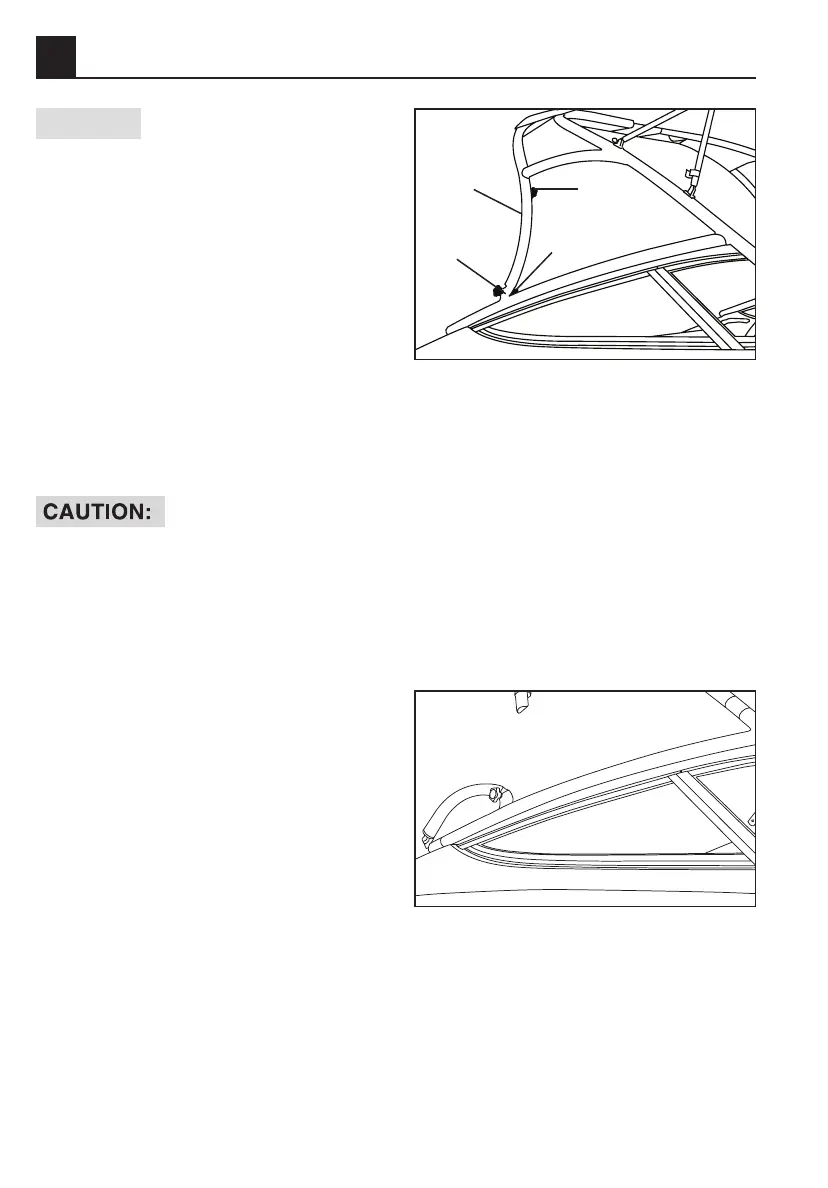

1 Rear Tower Support
2InboardKnob
3OuterKnob
4UpperKnob
3) Remove the knobs from the upper
end of the tower supports, and then
rotate the tower supports toward the
back of the boat so they rest against
the tower support bar. If desired,
the tower supports can be removed
completely and stored in one of the
boat’s storage compartments.
4) Attach the short tower storage sup-
ports to the bottom mount on each
side and install the knobs, leaving
them slightly loose. Have the assis-
tant lower the upper tower section
until it is at the correct height for the
short tower storage supports.
NOTICE:
1
2
3
4
