Yamaha BB2004 - Circuit Board

BB2004/BB2005
7

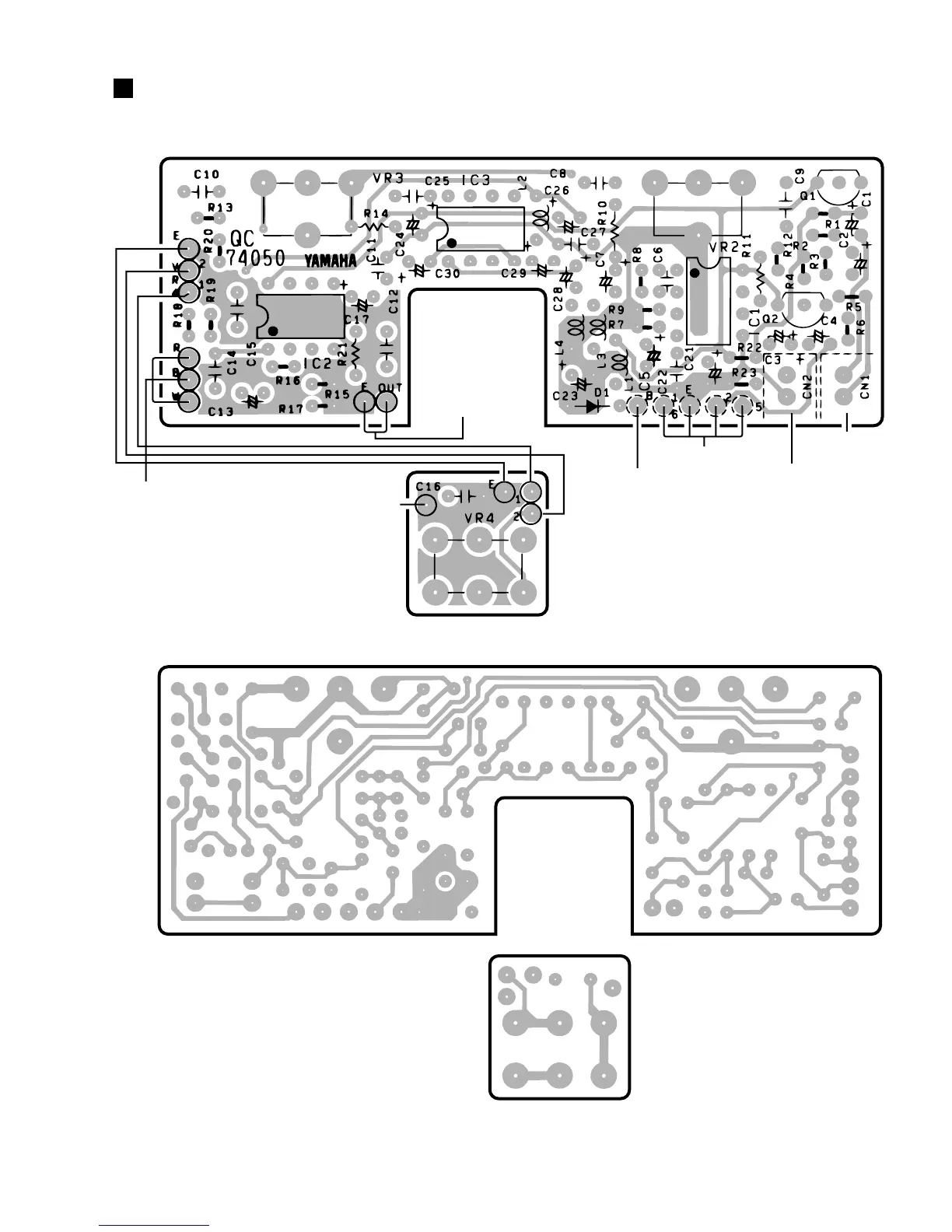

CIRCUIT BOARD
Component side
Pattern side
Note: See parts list for details of circuit board component parts.
（シート基板図）
（部品側）
（パターン側）
注：シートの部品詳細はパーツリストをご参照下さい。
to FRONT
PICKUP
to REAR
PICKUP
to BALANCER
to BATTERY
DC 9V
to MASTER
VOLUME
to Ground
to MID CUT SW.
BASSTREBLE
MID CUT FREQ.
EPA-QC72300-2
