Yamaha BB404 - Circuit Diagram; Wiring Diagram

BB404/BB405
6
WIRING

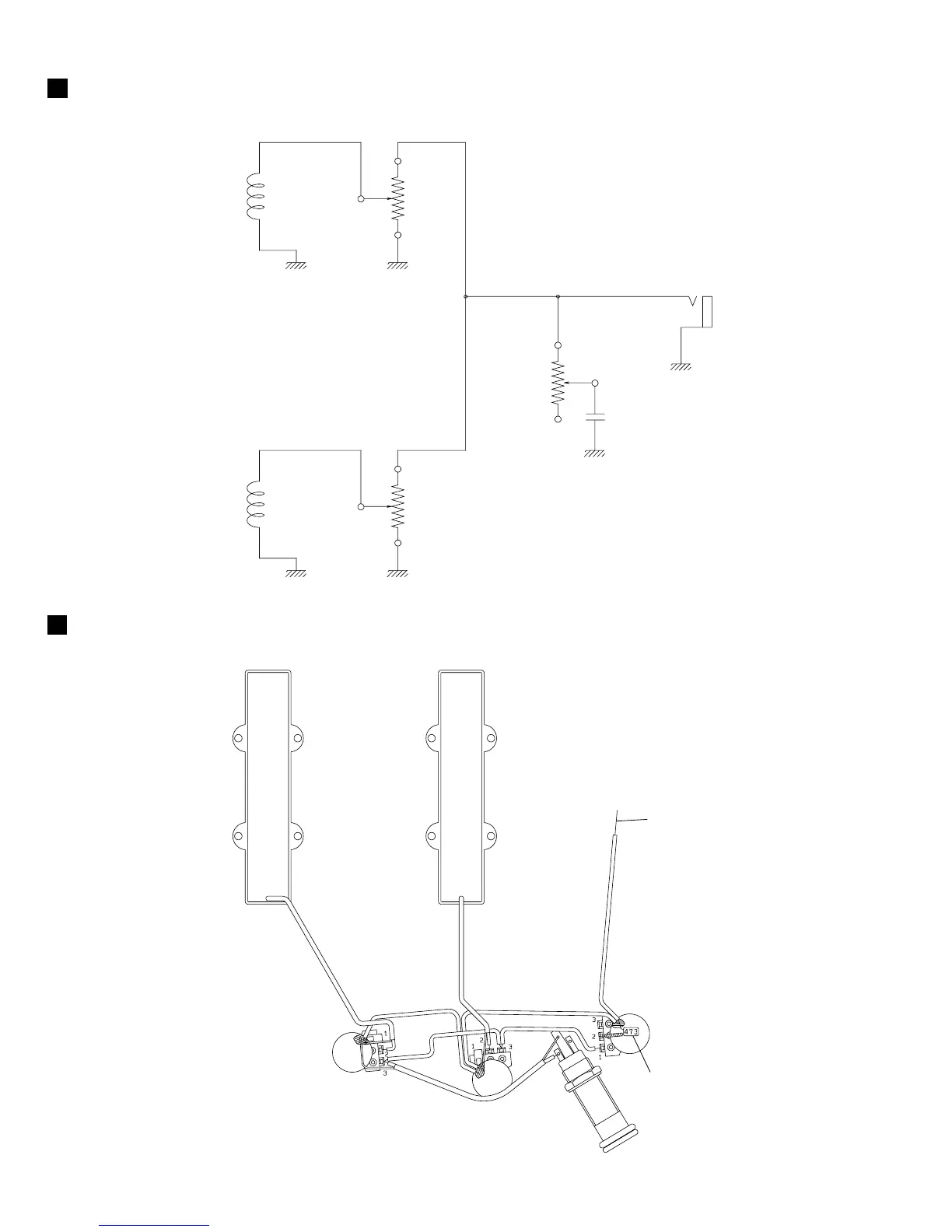

CIRCUIT DIAGRAM
FRONT PICKUP
REAR PICKUP
FRONT VOLUME
REAR VOLUME
MASTER TONE
OUTPUT
05A 250KΩ
15A 500KΩ
BPJJ-03
1
2
3
3
2
1
1
3
2
15A 500KΩ
0.047uF
FRONT PICKUP
Upper side: S (BB404)
N (BB405)
Upper side: N (BB404)
S (BB405)
REAR PICKUP
to bridge ground
FRONT VOLUME
15A 500KΩ
REAR VOLUME
15A 500KΩ
MASTER TONE
05A 250KΩ
OUTPUT JACK
0.047uF
BL
BL
BL
RE
RE
RE
GY
GY
