8-28
EBU00834
Adjusting the rear brake light switch
The rear brake light switch, which is activated
by the brake pedal and brake levers, is prop-
erly adjusted when the brake light comes on
just before braking takes effect. If necessary,
adjust the brake light switch as follows.
Turn the adjusting nut while holding the rear
brake light switch in place. To make the brake
light come on earlier, turn the adjusting nut in
direction
a
. To make the brake light come on
later, turn the adjusting nut in direction
b
.

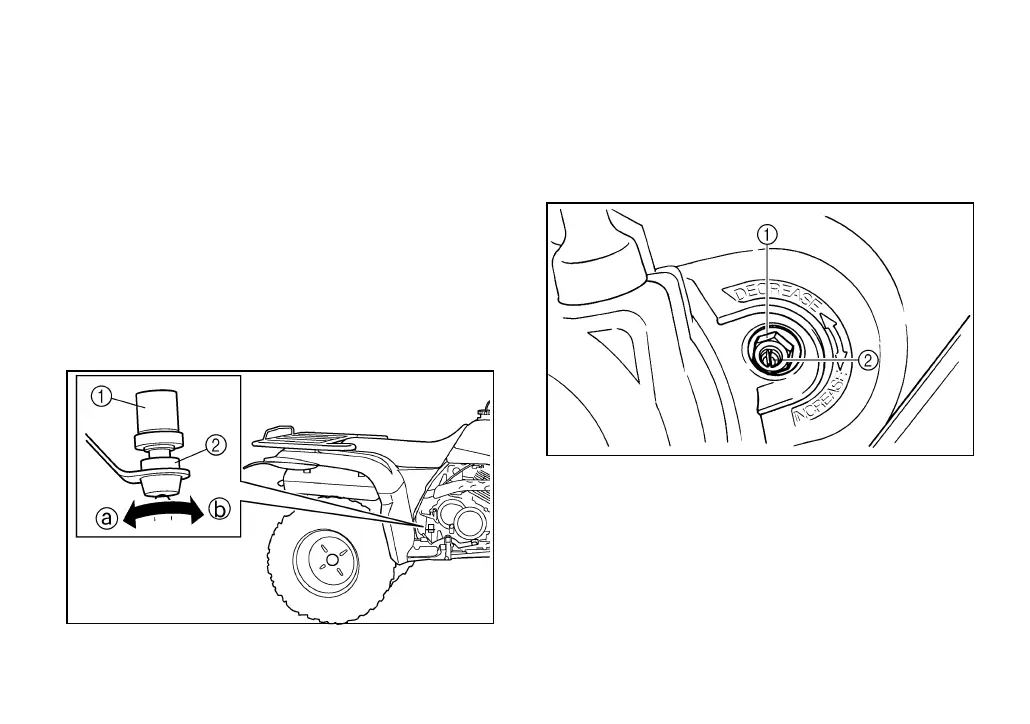

1. Rear brake light switch 2. Adjusting nut
EBU00346
Clutch adjustment
1. Loosen the locknut.
2. Slowly turn the adjusting bolt counter-
clockwise until resistance is felt. Then,
turn it 1/8 turn clockwise.
1. Locknut 2. Adjusting bolt
U5GW13.book Page 28 Tuesday, July 30, 2002 2:23 PM
