Yamaha C115VA - Subwoofer and Amplifier Integration; System Connection Diagram

5
ENGLISH

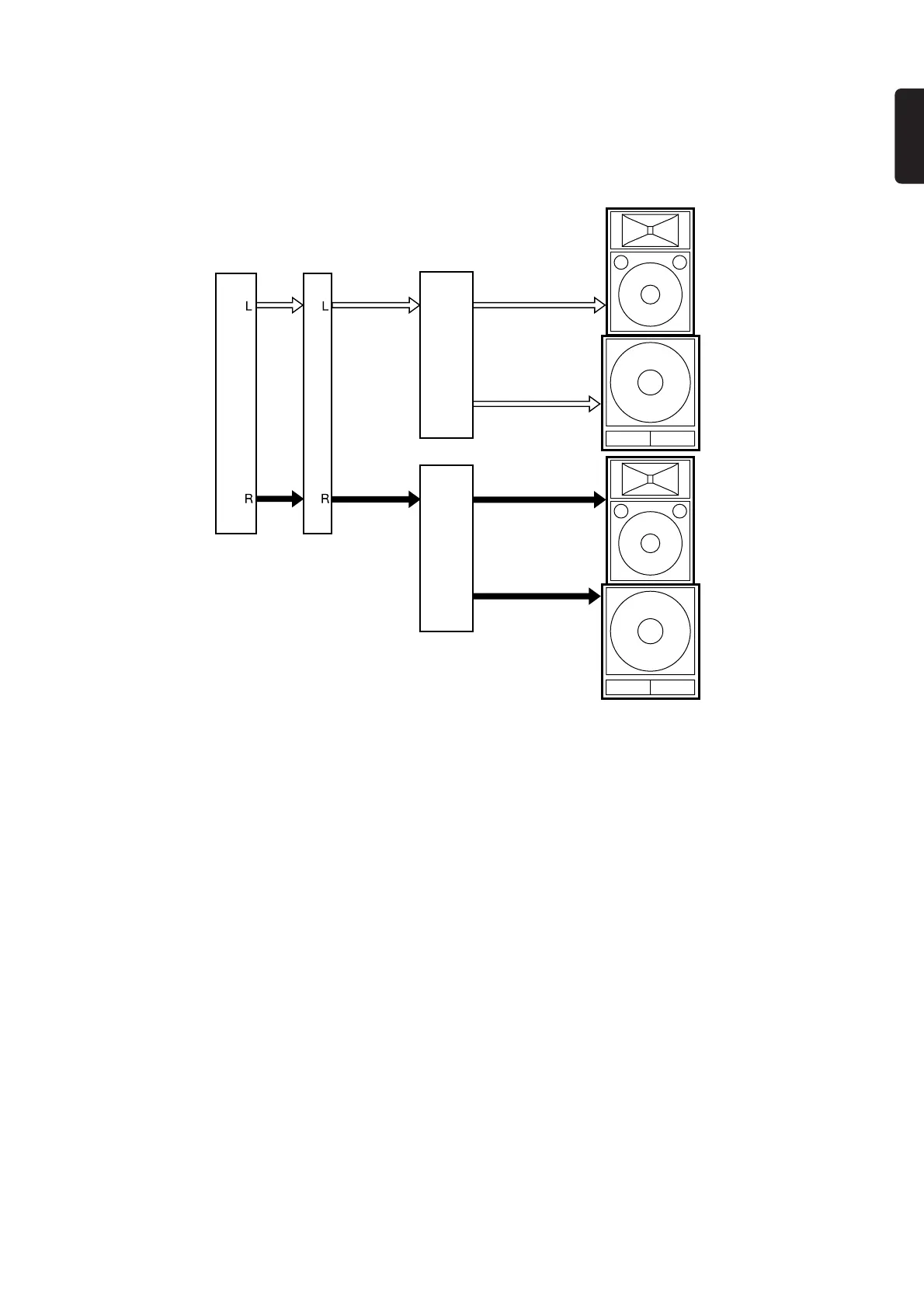

■ Subwoofers and the P-Series Power Amplifiers
Adding subwoofers to speaker systems like the one shown in the diagram can provide superior dynamic range and
overall sound quality. After inputting the line-level audio from the preamplifier or mixing console into the Yamaha
P-series power amplifiers (P7000S/P5000S/P3500S/P2500S), the separate frequency bands are outputted from the
amplifiers.
PARALLEL LOW CUT
FREQUENCY=90Hz
FREQUENCY=90Hz
A
SUBWOOFER
SUBWOOFER
B
LOW CUT
A
B
A
B
A
B
PARALLEL
P-SERIES
POWER AMPLIFIERS
P-SERIES
POWER AMPLIFIERS
SUBWOOFER
SUBWOOFER
SPEAKER
SYSTEM
SPEAKER
SYSTEM
TWO-CHANNEL
GRAPHIC
EQUALIZER
MIXING
CONSOLE
