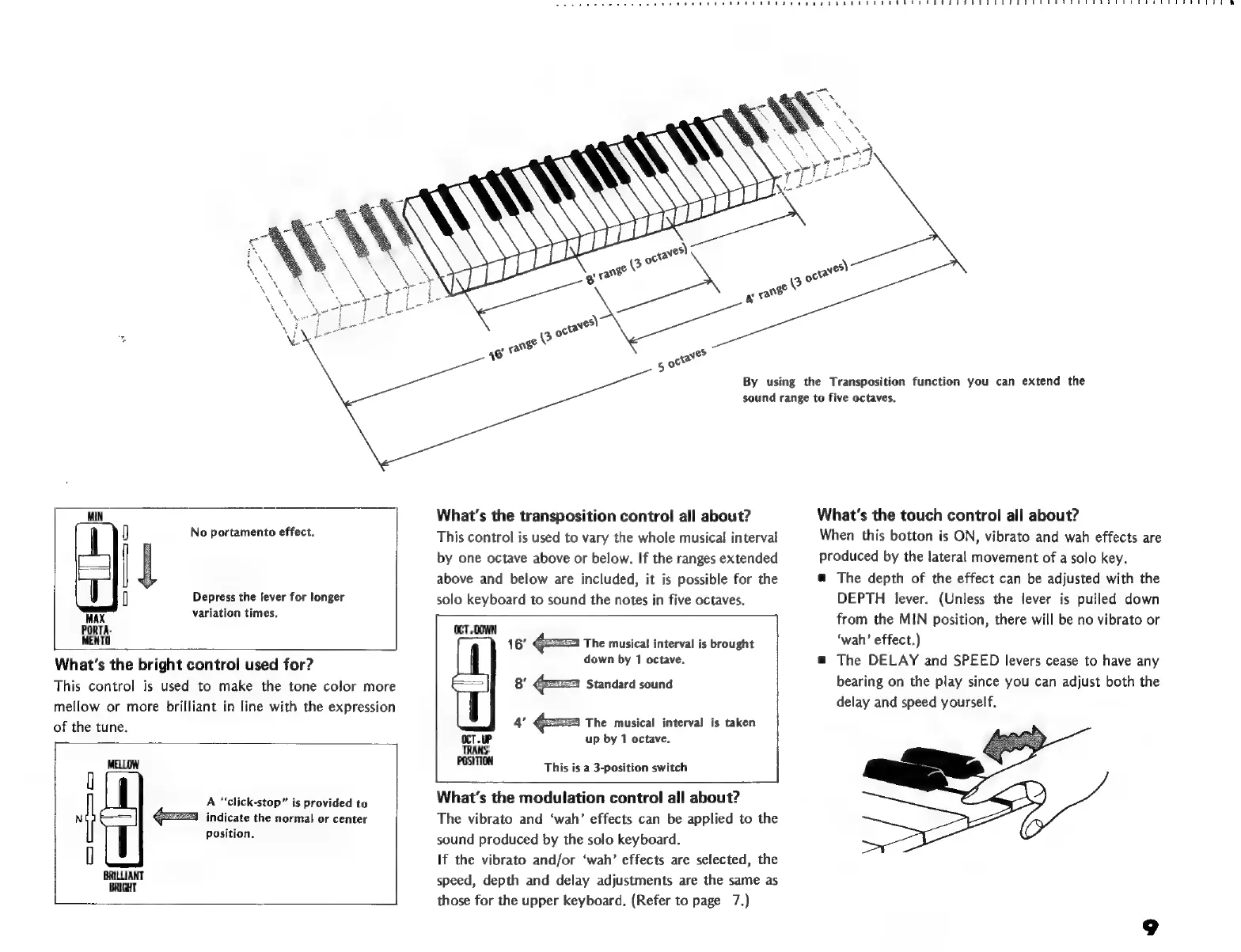

Yamaha D-85 - Solo Keyboard Modulation and Controls; Transposition and Brightness; Modulation and Touch Effects

MIN
[ No portamento effect.
0 Depress the fever for longer
MAX variation times.
PORTA:
MENTO
What's the bright control used for?
This control is used to make the tone color more
mellow or more brilliant in line with the expression
of the tune.
MELLOW
A "'click-stop" is provided to
N indicate the normal or center
position.
BRILLIANT
BRIGHT
What's the transposition control all about?
This control is used to vary the whole musical interval
by one octave above or below. If the ranges extended
above and below are included, it is possible for the
solo keyboard to sound the notes in five octaves.
OCT. DOWN
16' Qu The musical interval is brought
down by 1 octave.
8' Quum Standard sound
4 Qua The musical interval is taken
OCT.UP up by 1 octave.
TRANS-
POSITION
This is a 3-position switch
What's the modulation control all about?
The vibrato and ‘wah’ effects can be applied to the
sound produced by the solo keyboard.
If the vibrato and/or ‘wah’ effects are selected, the
speed, depth and delay adjustments are the same as
those for the upper keyboard. (Refer to page 7.)
ee ee kak pA K T Ú 3
By using the Transposition function you can extend the
sound range to five octaves.
What's the touch control all about?
When this botton is ON, vibrato and wah effects are
produced by the lateral movement of a solo key.
m The depth of the effect can be adjusted with the
DEPTH lever. (Unless the lever is pulled down
from the MIN position, there will be no vibrato or
‘wah’ effect.)
m The DELAY and SPEED levers cease to have any
bearing on the play since you can adjust both the
delay and speed yourself.
