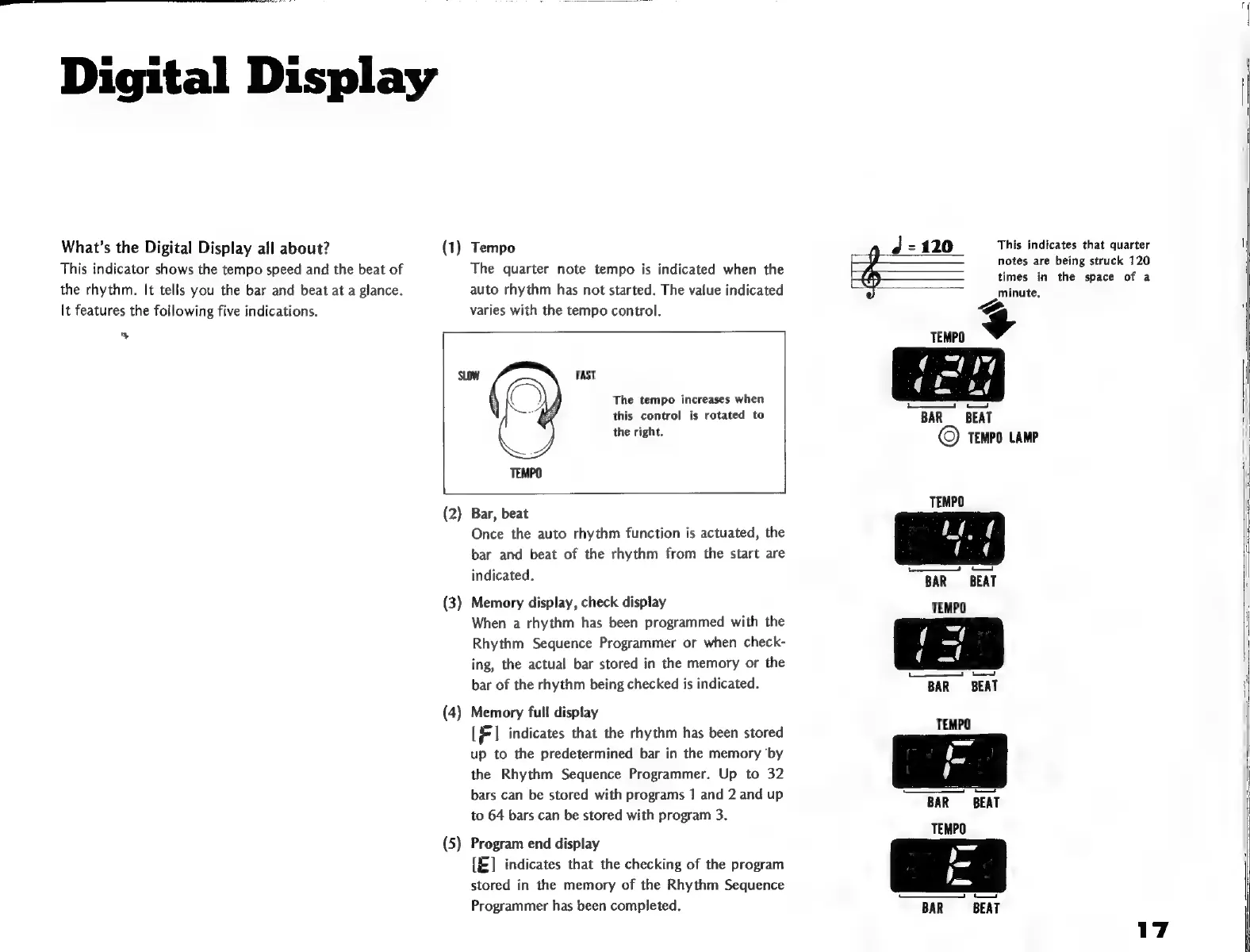

Digital Display
What’s the Digital Display all about?
This indicator shows the tempo speed and the beat of
the rhythm. It tells you the bar and beat at a glance.
It features the following five indications.
[3
(1) Tempo
The quarter note tempo is indicated when the
auto rhythm has not started. The value indicated
varies with the tempo control.
FAST
The tempo increases when
this control is rotated to
the right.
(2) Bar, beat
Once the auto rhythm function is actuated, the
bar and beat of the rhythm from the start are
indicated.
(3
=
Memory display, check display
When a rhythm has been programmed with the
Rhythm Sequence Programmer or when check-
ing, the actual bar stored in the memory or the
bar of the rhythm being checked is indicated.
(4) Memory fuli display
[FF] indicates that the rhythm has been stored
up to the predetermined bar in the memory by
the Rhythm Sequence Programmer. Up to 32
bars can be stored with programs 1 and 2 and up
to 64 bars can be stored with program 3.
(5) Program end display
[E] indicates that the checking of the program
stored in the memory of the Rhythm Sequence
Programmer has been completed.
This indicates that quarter
notes are being struck 120
d - 120
minute,
times in the space of a
BAR BEAT
(C) TEMPO LAMP
——— | ——À
BAR — BEAT
TEMPO
— —
BAR BEAT
TEMPO
BAR BEAT
17
