Yamaha Disklavier MX100II User Manual

I-17

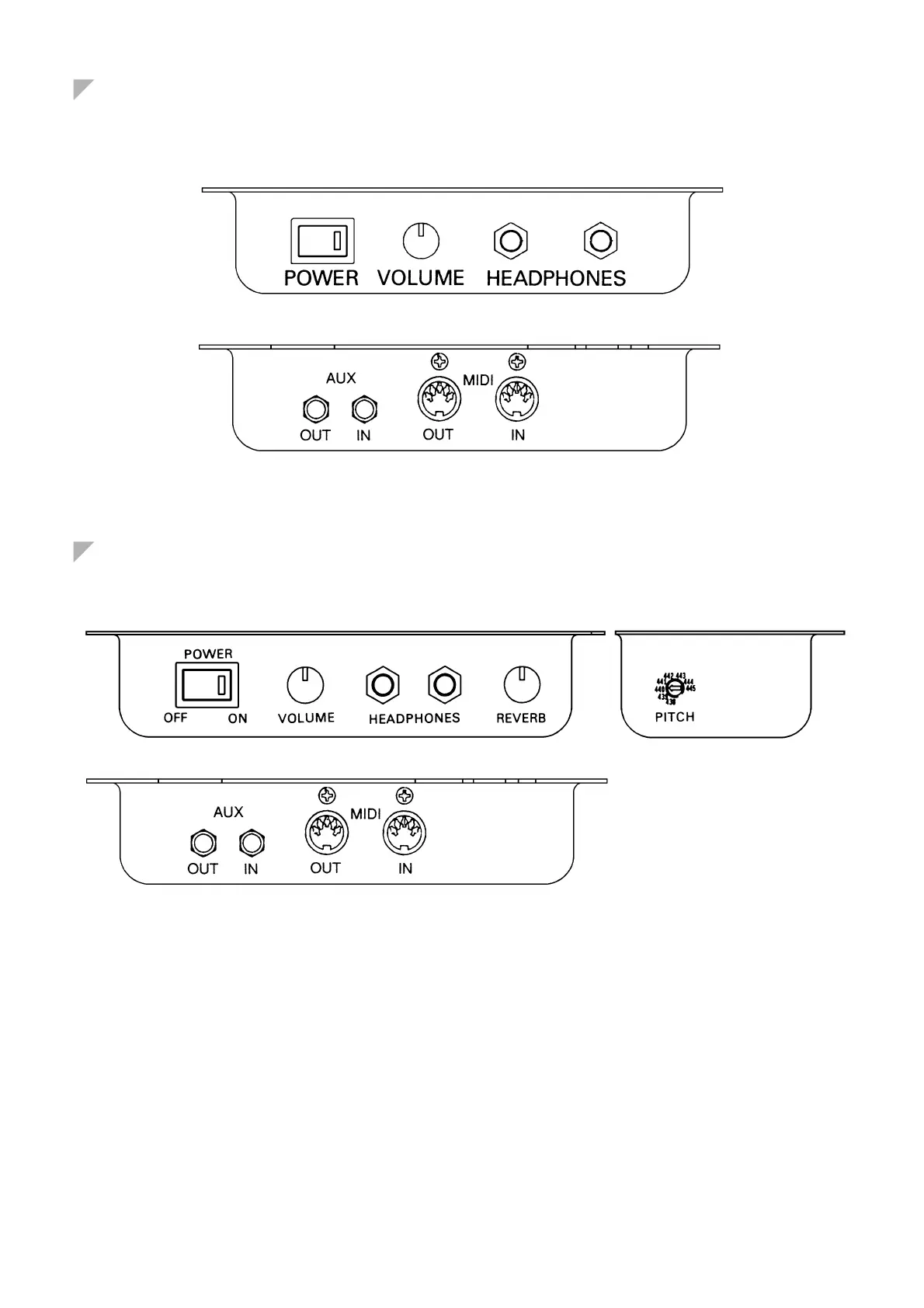

MP80/80T/100/300 (from 95/7)
Mounted on the treble side under the keybed.
Front: Main power switch, silent volume, headphone jacks
Rear: MIDI IN, MIDI OUT, AUX IN, AUX OUT
MP1Z
Mounted on the treble side under the keybed
Front: Main power switch, silent volume, headphone jacks, reverb depth
Side: Pitch switch
Rear: MIDI IN, MIDI OUT, AUX IN, AUX OUT
Switch Box (front)
Switch Box (rear)
