DME Designer Owner’s Manual
465
Appendix
Options
The ICP1, CP4SW, CP1SF, and CP4SF controllers are optionally available for remote external control of
the DME The ICP1 connects via Ethernet, while the CP4SW, CP1SF, and CP4SF connect via the GPI
interface.
ICP1 settings and operation
This controller connects to the DME series via Ethernet. Like the DME series, each ICP1 unit has it’s
own IP address. With a display that replicates the display on the DME series, the ICP1 allows
comprehensive, familiar control from remote locations.

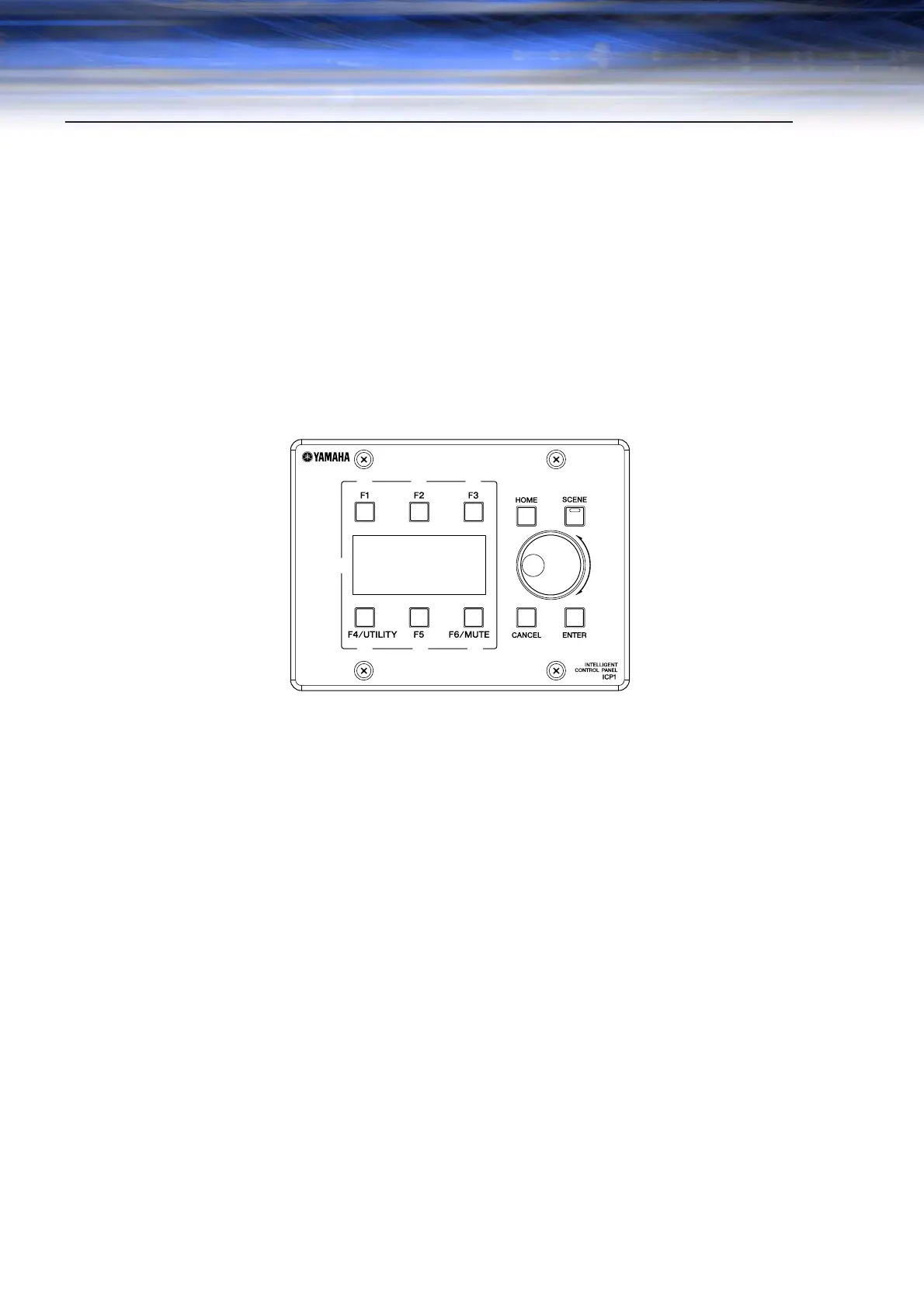

ICP1 Controls
1 [F1] Key
When the Main display is showing this button calls the Parameter Edit display for the User Defined
Button in the upper left corner of the display.
When the Utility display is showing it has the same function as the Left button.
2 [F2] Key
When the Main display is showing this button calls the Parameter Edit display for the middle User
Defined Button in the upper part of the display.
When the Utility display is showing it has the same function as the Up button.
3 [F3] Key
When the Main display is showing this button calls the Parameter Edit display for the User Defined
Button in the upper right corner of the display.
When the Utility display is showing it has the same function as the right button.
4 [F4/UTILITY] Key
When the Main display is showing this button calls the Parameter Edit display for the User Defined
Button in the lower left corner of the display. If this button is pressed and held for longer than
2 seconds when the Main display is showing the Utility display will appear. Pressing the [F4] button
while the Utility display is showing sequentially steps through the various Utility pages.
123
78
9)
@!
456
