Yamaha F40FED - Page 45

1-39
OUTBOARD MOTOR DIMENSIONS

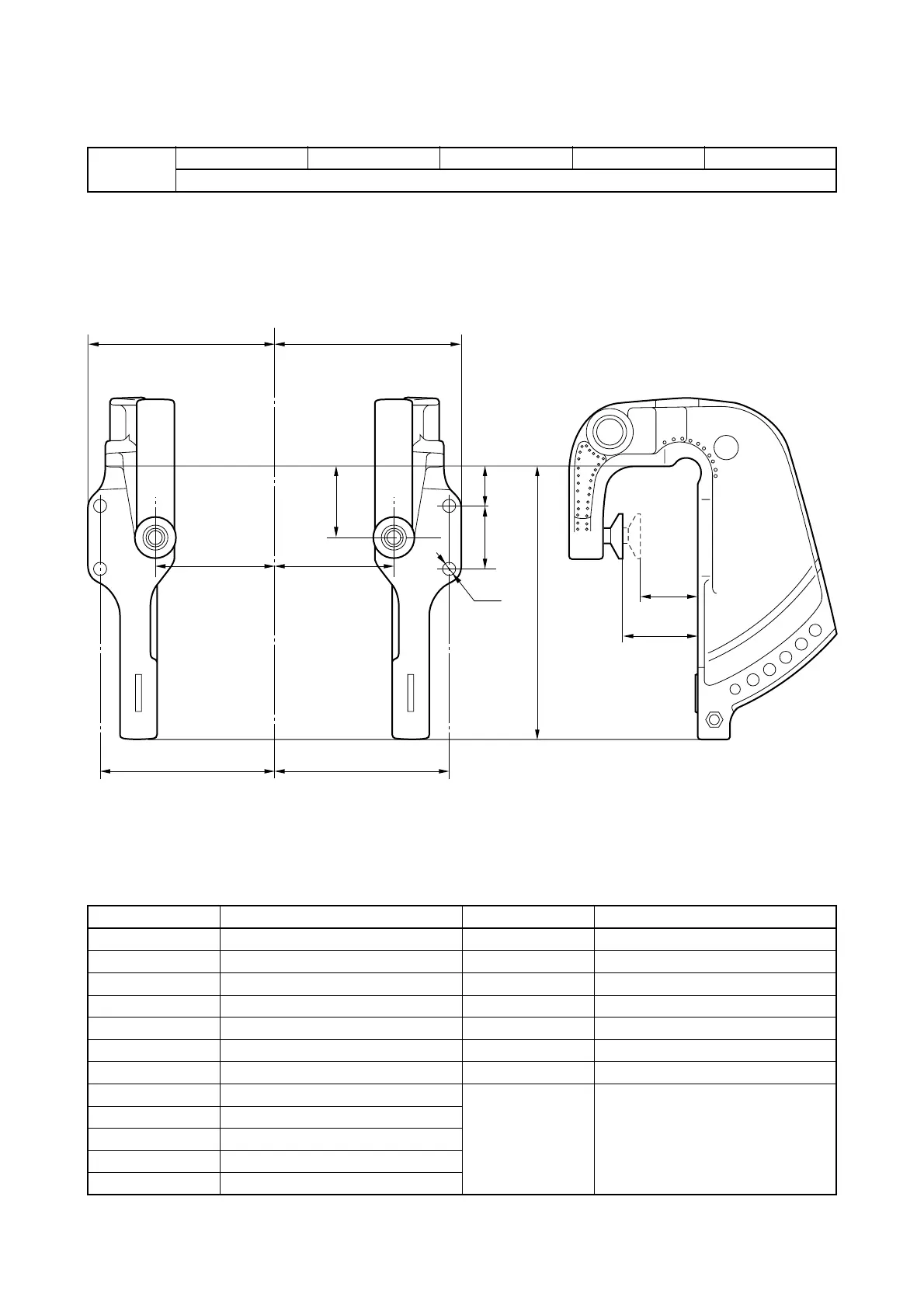

CLAMP BRACKET DIMENSIONS
Model
40X E40X F20A F25A (F25) F25C
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 37 (1.5)
B2 — C2 68 (2.7)
B3 140 (5.5) C3 —
B4 32 (1.3) D1 10.5 (0.41)
B5 150 (5.9) D2 —
B6 218 (8.6) D3 —
B7 — D4 —
B8 —
B9 50 (2.0)
B10 —
B11 95.5 (3.8)
B12 57 (2.2)
C2
C1
B6
B9
B3
B1
1
B5
C/L
B4
B12
D1
B3
B1
1
B5
