2-2
E
1

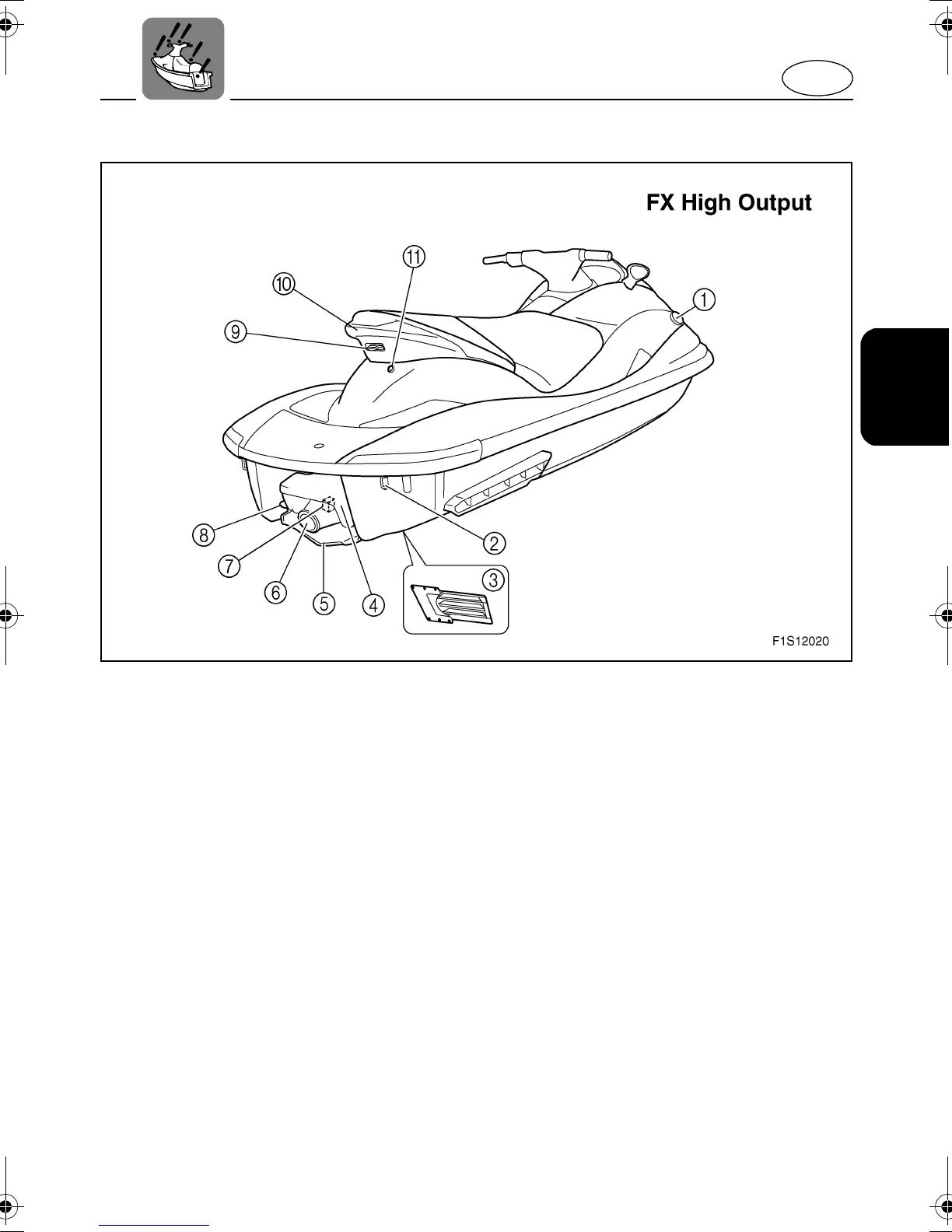

Fuel tank filler cap
2
Stern eye
Use to attach rope for transporting or mooring.
3
Intake grate
Prevents debris from getting into the jet pump.
4
Reverse gate
Controls direction of jet thrust when in reverse.
5
Ride plate
6
Jet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.
7
Speed sensor
8
Stern drain plugs
Use to drain water in the bilge when the water-
craft is on dry land.
9
Cleat
Use to attach a towrope for pulling water-skier,
or a rope for mooring the watercraft.
0
Handgrip
Use for support when boarding the watercraft
or when seated facing rearward and acting as
a spotter for a water-skier.
A
Electric bilge pilot outlet
