Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the center cover by re-
moving the screws.
3. Remove the rider seat by remov-
ing the bolts. Lift the rear of the
rider seat and pull it backward.
To install the rider seat
1. Insert the projection on the front of
the rider seat into the seat holder
as shown, and then place the seat
in the original position.
2. Install the rider seat bolts.
3. Install the center cover by install-
ing the screws.
4. Install the passenger seat.
Make sure that the seats are properly
secured before riding.

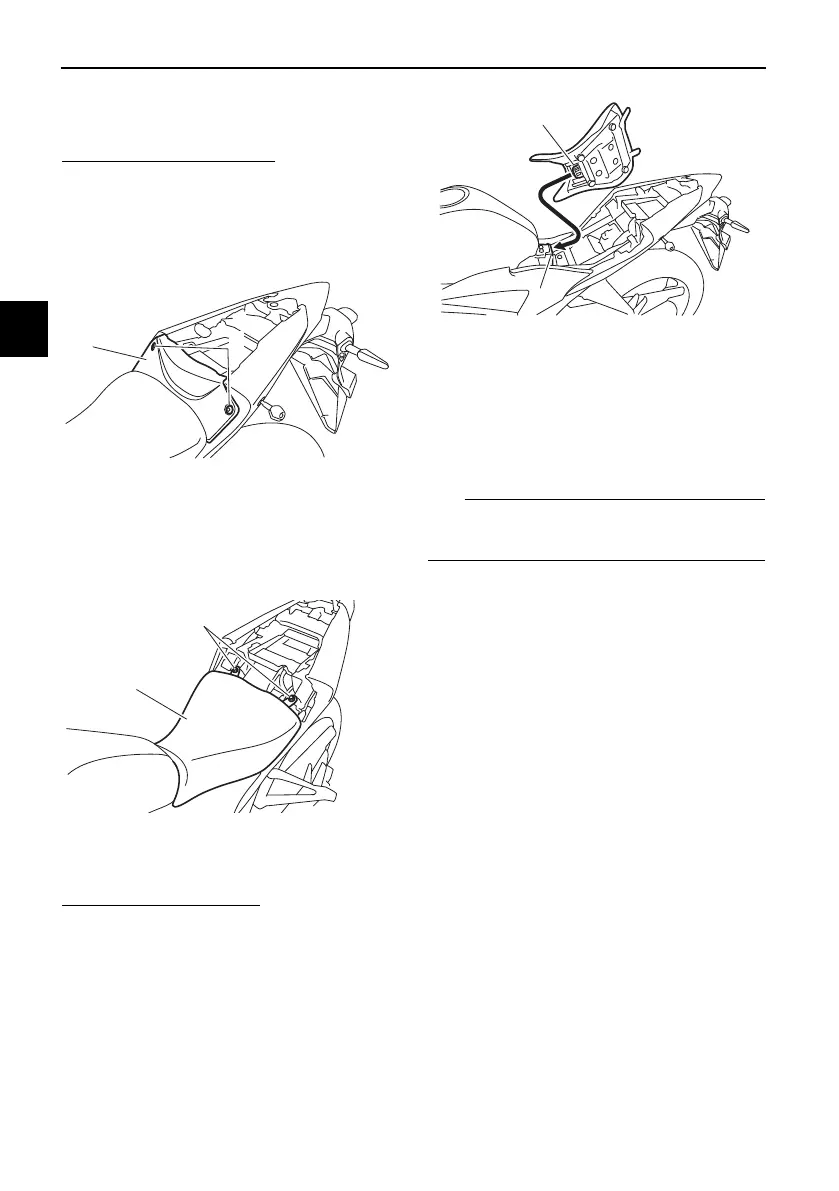

1. Center cover
2. Screw
1. Rider seat
2. Bolt
1. Projection
2. Seat holder
