Yamaha MTN320-A - Luggage Strap Holders

Instrument and control functions
3-21
3
TIP
For ABS models, be sure to install the
drive chain guard by installing the col-
lars and bolts, and then tighten the
bolts to the specified torque.
EAU84680
Luggage strap holders
Use the indicated strap points to se-
cure luggage ties to the vehicle.

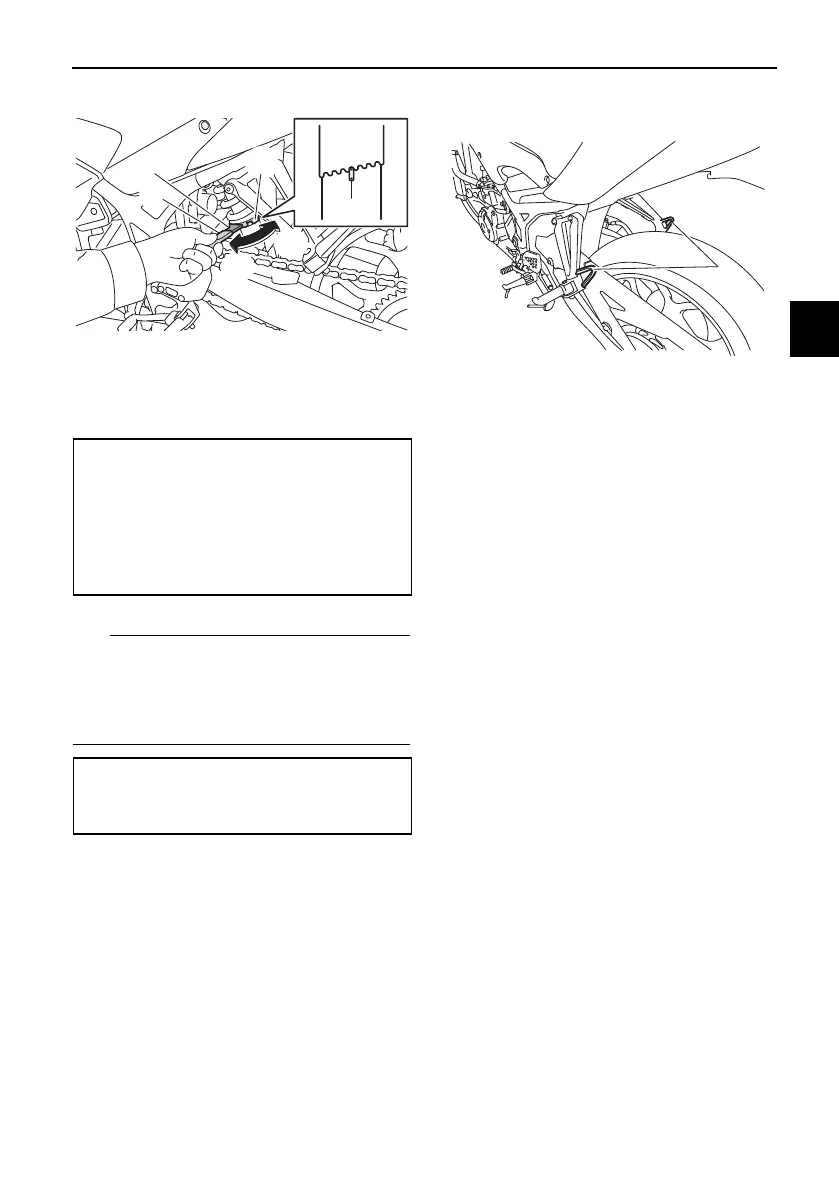

1. Extension bar
2. Special wrench
3. Spring preload adjusting ring
4. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
4
Maximum (hard):
7
Tightening torque:
Drive chain guard bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
7
6
5
4
3
2
1
4
(b)
(a)
3
2
1
1. Luggage strap holder
1
