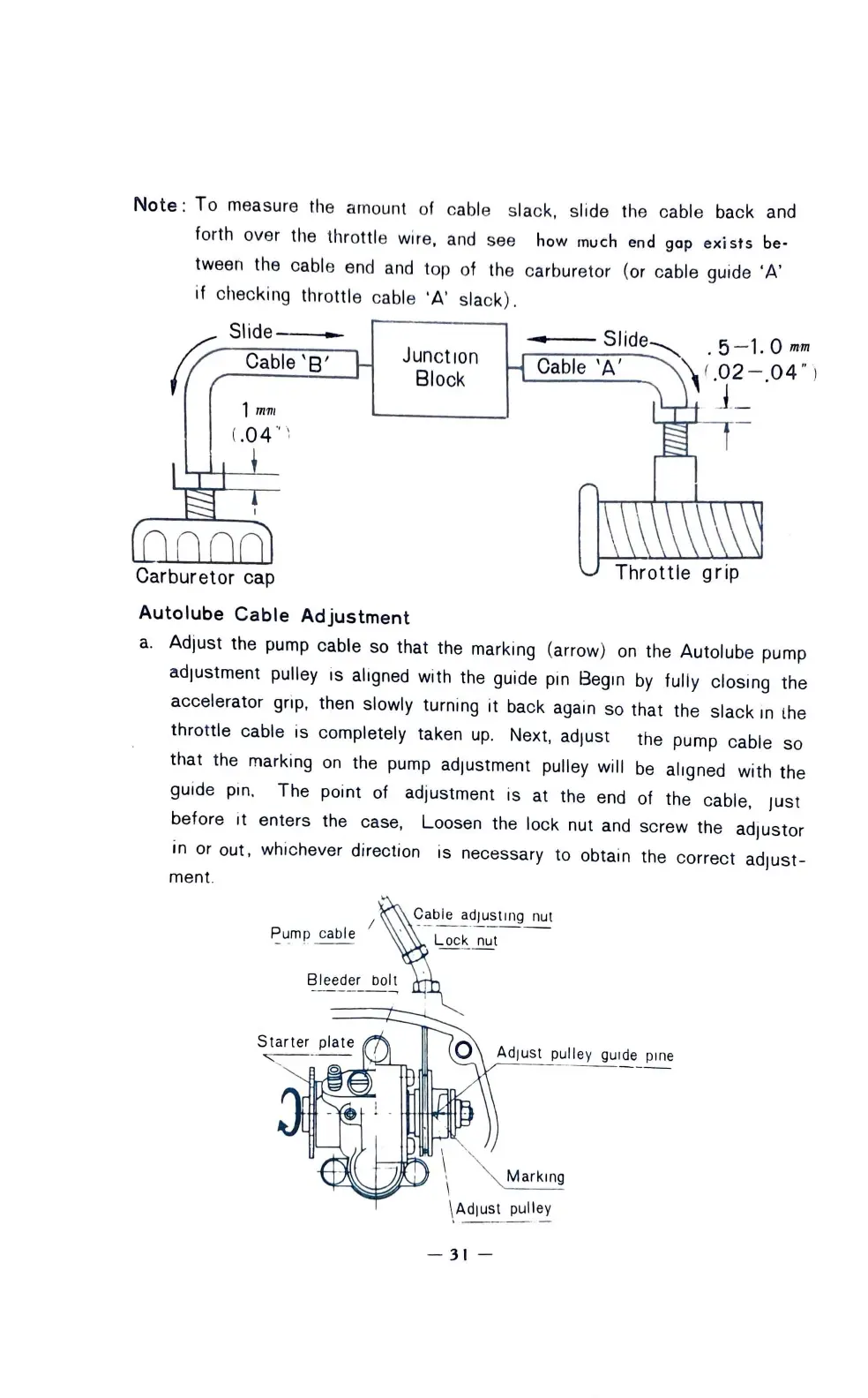

Note:
To
measure the amount of cable slack, slide the cable back
and
forth over the throttle wire,
and
see
how
much end gap
exists
be·
tween the cable end
and
top of the carburetor (or cable guide
'A'
if
checking throttle cable
'A'
slack).
Slide
..
j/
Cable
'B'
{(
(----
1
m111
(.04
.,
\
t
Carburetor
cap
Junction
Block
Slide~
.5-1.0mm
Cable
'A'
r
.02-
.04"
J
J_
7-
Throttle grip
Autolube
Cable
Adjustment
a.
Adjust the
pump
cable so that the marking (arrow)
on
the Autolube pump
ad1ustment pulley
is
aligned with the guide pin Begin
by
fully closing the
accelerator grip, then slowly turning
it
back again so that the slack in lhe
throttle cable is completely taken
up.
Next,
ad1ust
the pump cable so
that the marking
on
the
pump
ad1ustment pulley will
be
aligned with the
guide pin. The point of adjustment
is
at the
end
of the cable,
Just
before
it
enters the case, Loosen the lock nut
and
screw the ad1ustor
in or out, whichever direction
is
necessary to obtain the correct ad1ust-
ment.
I
Pump
cable
Bleeder
Cable adjusting nut
Ad1ust pulley guide pine
I~
\
\Ad1ust pulley
·-----
-
31
-
