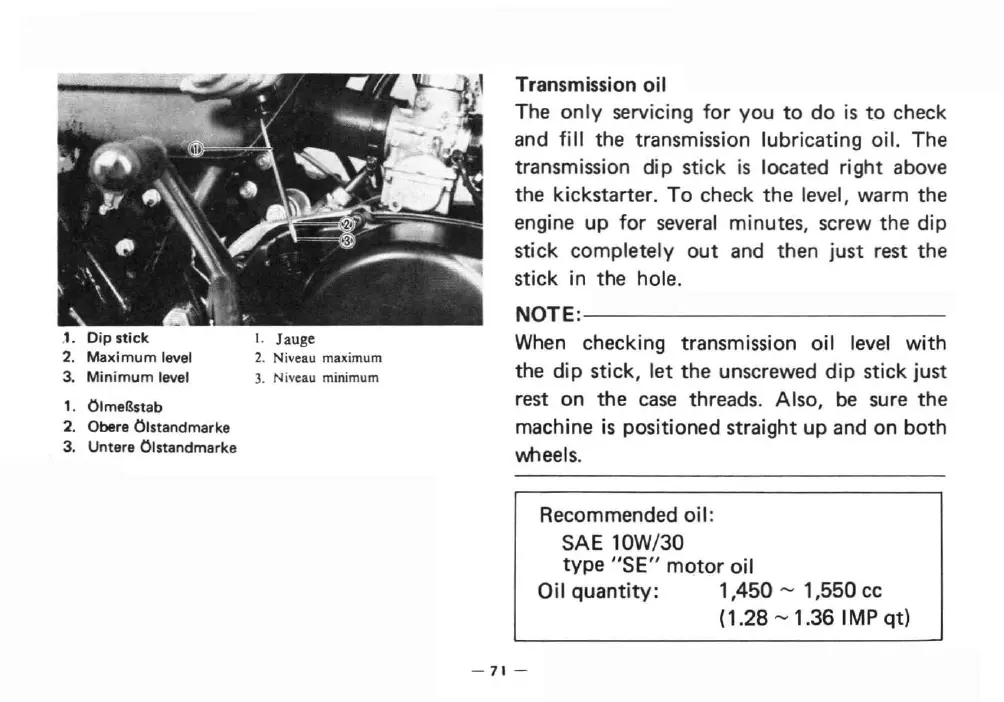

1.
Dip stick 1. Jauge
2.
Maximum level 2. Niveau
maximum
3. Minimum level 3.
Niveau minimum
1.
ölmeßstab
2.
Obere ölstandmarke
3. Untere ölstandmarke
Transmission oil
The only servicing for you to do is to check
and fill the transmission lubricating oil. The
transmission dip stick is located right above
the kickstarter. To check the level, warm the
engine up for several minutes, screw the dip
stick completely out and then just rest the
stick in the hole.
NOTE:
When checking transmission oil level with
the dip stick, let the unscrewed dip stick just
rest on the case threads. Also, be sure the
machine is positioned straight up and on both
wheels.
Recommended oil:
SAE 10W/30
type "SE" motor oil
Oil quantity: 1,450 ~ 1,550 cc
(1.28-1.36 IMPqt)
— 71 -
