Yamaha SR-C20A Quick Start Guide

En 7
 NOTE
• When the sound bar is connected to a TV via HDMI cable, confirm
that the TV’s settings are properly configured as follows:
– The TV's HDMI Control function is enabled.
– The TV’s audio output is set to ARC. (When an ARC-compatible
TV is used.)
• The TV’s HDMI Control function allows for controlling the following
functions using the TV’s remote control:
– Turn the power on and off
Both the TV and the sound bar turn on/off at the same time.
– Volume adjustment
The sound bar’s volume can be adjusted when the TV’s audio
output is set to the sound bar.
Connecting the TV using only the digital
optical audio cable (supplied)
When the HDMI Control function is not used or the TV is not
equipped with an HDMI input jack, connect the TV as follows:

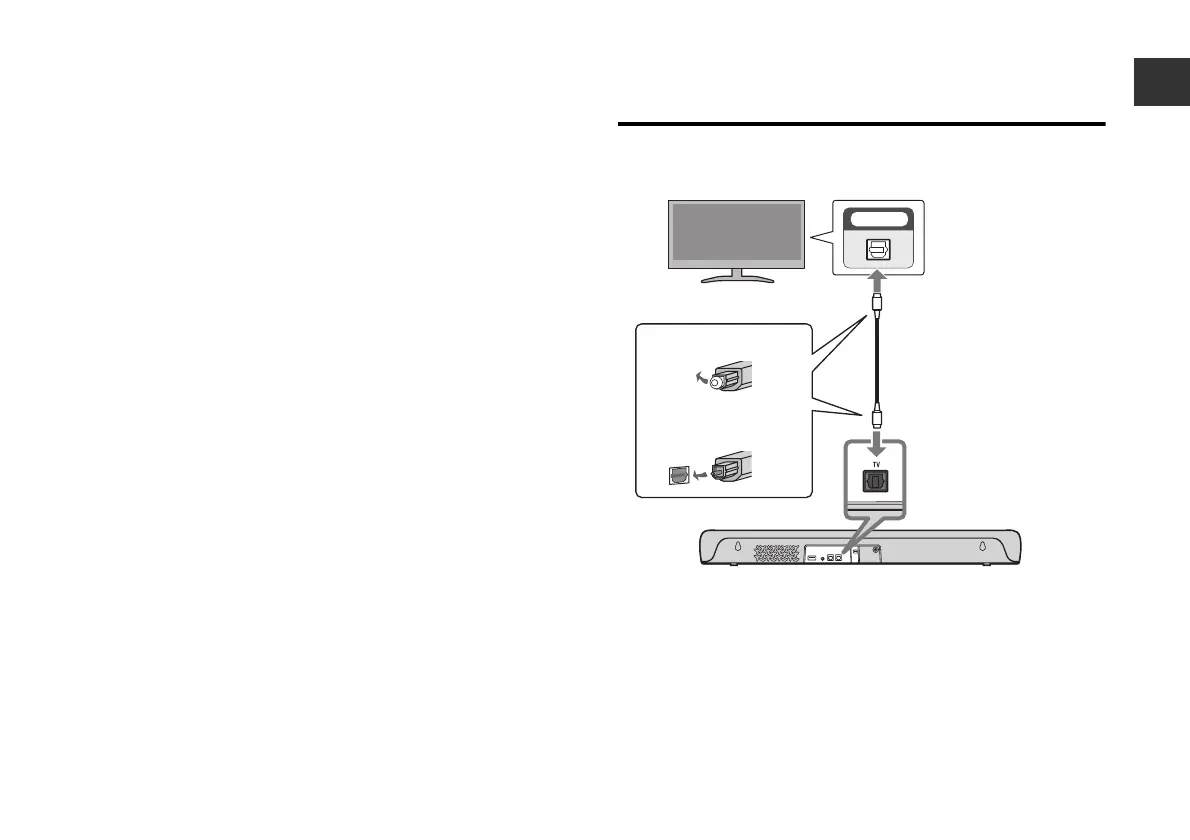

OPTICAL
OO
O
O
Sound bar (rear)
TV
TV input
Audio output
(Digital optical audio)
1. R e m ov e the c a p.
2. Check the orientation
of the plug.

Yamaha SR-C20A Specifications

General

Product color	White
TV stand usage	-
Construction type	Assembly kit
Smartphone remote support	Yes
Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	100 W
Audio output channels	- channels
Tweeter impedance	6 Ω
Soundbar speaker RMS power	40 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	13 W
Cables included	AC, Optical
Subwoofer location	Built-in
Subwoofer frequency range	65 - 230 Hz
Wi-Fi	No
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Digital audio optical in	2

Weight and Dimensions

Depth	94 mm
Width	600 mm
Height	64 mm
Soundbar weight	1800 g
