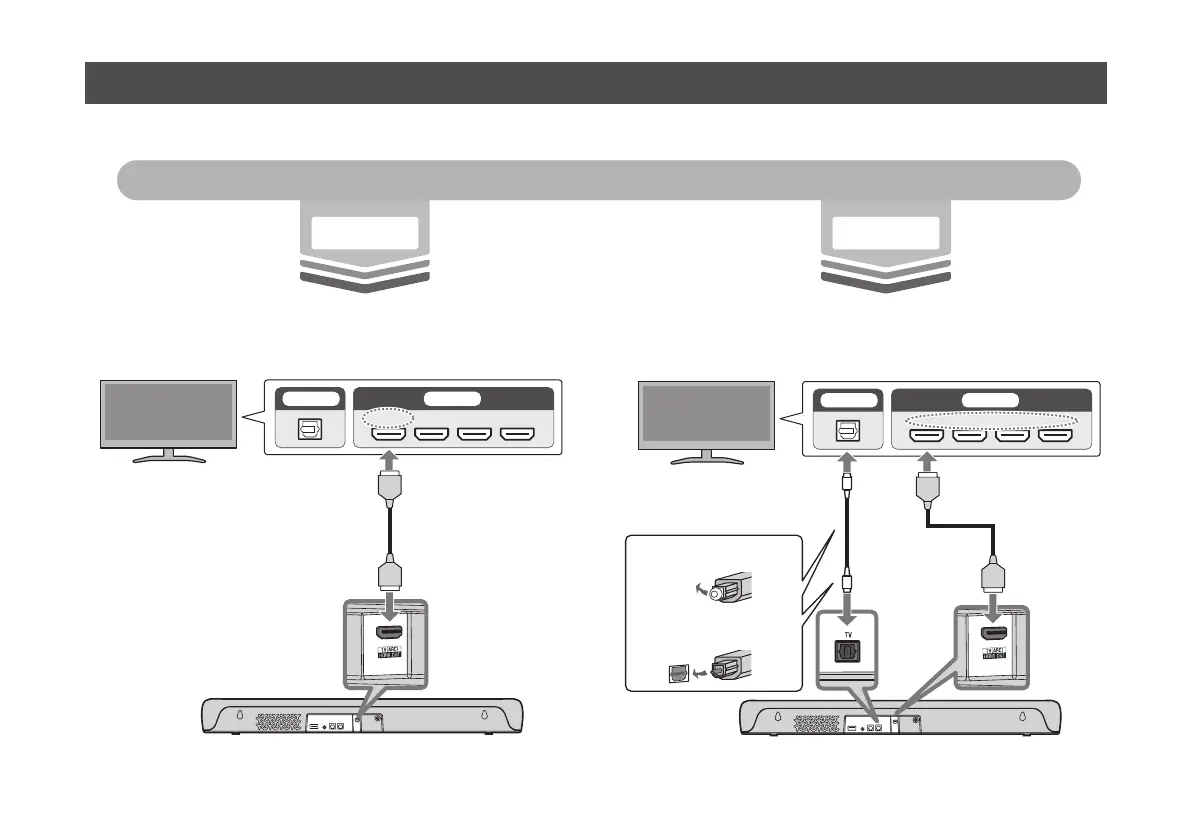

Depending on the type of TV, connect the TV to the sound bar as follows:
Connect the TV using an ARC-compatible HDMI cable (sold
separately).
Connect the TV using an HDMI cable (sold separately) and digital
optical audio cable (supplied). Be sure to use both cables to connect
the TV.
Connecting a TV
Is your TV equipped with an HDMI jack labeled as “ARC?”
Yes No
HDMI INOPTICAL
HDMI
HDMI
ARC
Sound bar (rear)
HDMI OUT/
TV (ARC)
input
ARC-compatible TV
ARC-compatible
HDMI input
HDMI INOPTICAL
HDMI
HDMI
OO
O
O
Sound bar (rear)
HDMI
OUT/TV
(ARC)
input
TV
HDMI input
TV input
Audio output
(Digital
optical audio)
1. Remove the cap.
2. Check the orientation
of the plug.

Yamaha SR-C20A Specifications

General

Product color	White
TV stand usage	-
Construction type	Assembly kit
Smartphone remote support	Yes
Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	100 W
Audio output channels	- channels
Tweeter impedance	6 Ω
Soundbar speaker RMS power	40 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	13 W
Cables included	AC, Optical
Subwoofer location	Built-in
Subwoofer frequency range	65 - 230 Hz
Wi-Fi	No
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Digital audio optical in	2

Weight and Dimensions

Depth	94 mm
Width	600 mm
Height	64 mm
Soundbar weight	1800 g
